ST150-TLMSE (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 1SELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

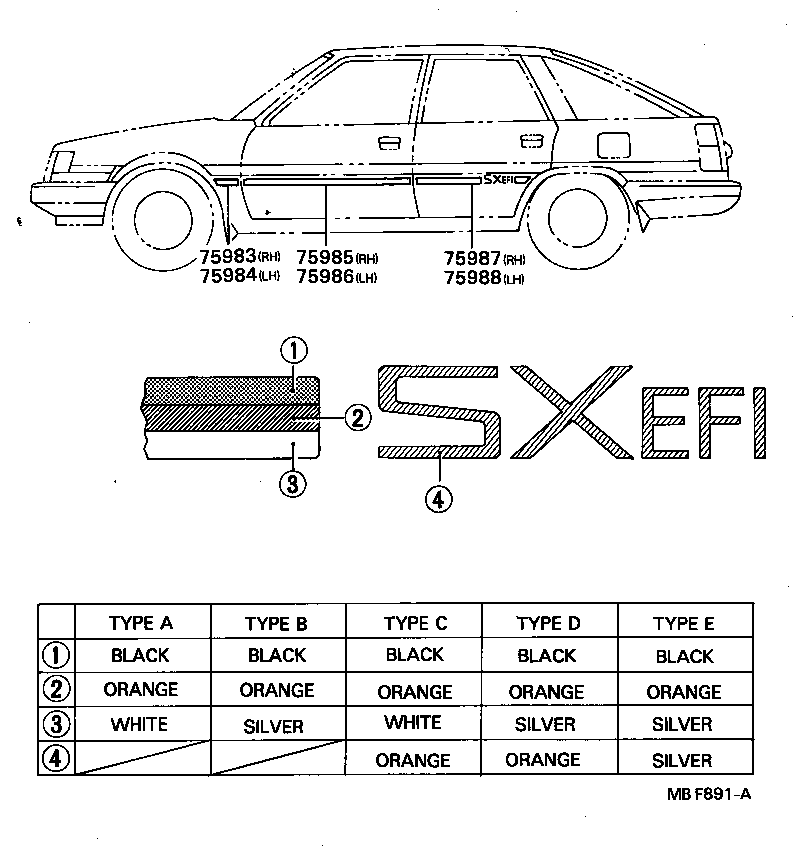

(8310-8508)SX

Click highlighted areas on diagram

diagram 75983 75984 75985 75986 75987 75988
Part # Description Qty Price
75983 - STRIPE, FRONT FENDER, RH NO.2
75983-20060

ST150..SX

TYPE A

 1
75983-20070

ST150..SX

TYPE B

 1
75984 - STRIPE, FRONT FENDER, LH NO.2
75984-20050

ST150..SX

TYPE B

 1
75984-20040

ST150..SX

TYPE A

 1
75985 - STRIPE, FRONT DOOR, RH
75985-20090

ST150..SX

TYPE A

 1
75985-20100

ST150..SX

TYPE B

 1
75986 - STRIPE, FRONT DOOR, LH
75986-20080

ST150..SX

TYPE A

 1
75986-20090

ST150..SX

TYPE B

 1
75987 - STRIPE, REAR DOOR, RH
75987-20120

ST150..SX

TYPE C

 1
75987-20160

ST150..SX

TYPE E

 1
75987-20130

ST150..SX

TYPE D

 1
75988 - STRIPE, REAR DOOR, LH
75988-20110

ST150..SX

TYPE E

 1
75988-20100

ST150..SX

TYPE D

 1
75988-20090

ST150..SX

TYPE C

 1

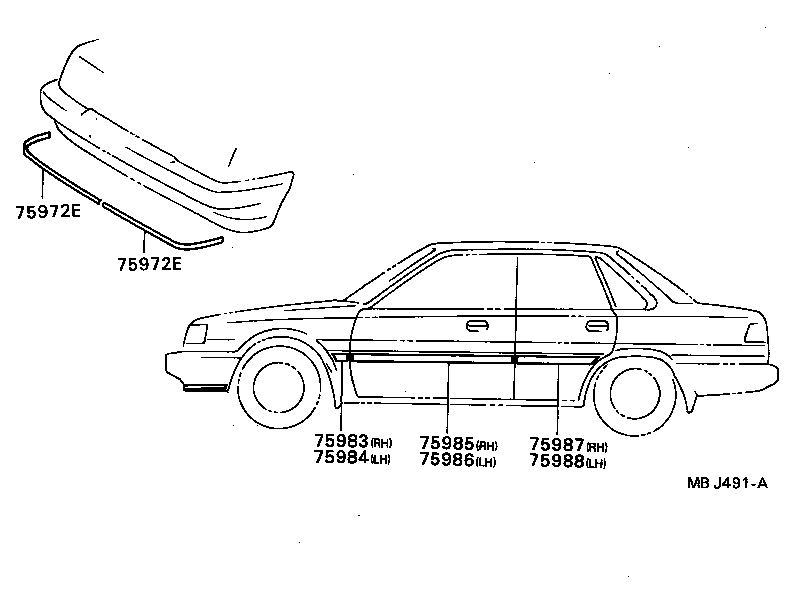

(8508- )

Click highlighted areas on diagram

diagram 75972E 75972E 75983 75984 75985 75986 75987 75988
Part # Description Qty Price
75983 - STRIPE, FRONT FENDER, RH NO.2
75983-20060

ST150..SX

TYPE A

 1
75983-20070

ST150..SX

TYPE B

 1
75984 - STRIPE, FRONT FENDER, LH NO.2
75984-20050

ST150..SX

TYPE B

 1
75984-20040

ST150..SX

TYPE A

 1
75985 - STRIPE, FRONT DOOR, RH
75985-20090

ST150..SX

TYPE A

 1
75985-20100

ST150..SX

TYPE B

 1
75986 - STRIPE, FRONT DOOR, LH
75986-20080

ST150..SX

TYPE A

 1
75986-20090

ST150..SX

TYPE B

 1
75987 - STRIPE, REAR DOOR, RH
75987-20120

ST150..SX

TYPE C

 1
75987-20160

ST150..SX

TYPE E

 1
75987-20130

ST150..SX

TYPE D

 1
75988 - STRIPE, REAR DOOR, LH
75988-20110

ST150..SX

TYPE E

 1
75988-20100

ST150..SX

TYPE D

 1
75988-20090

ST150..SX

TYPE C

 1
