ST150-TLMNL (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310-8508)1SILU

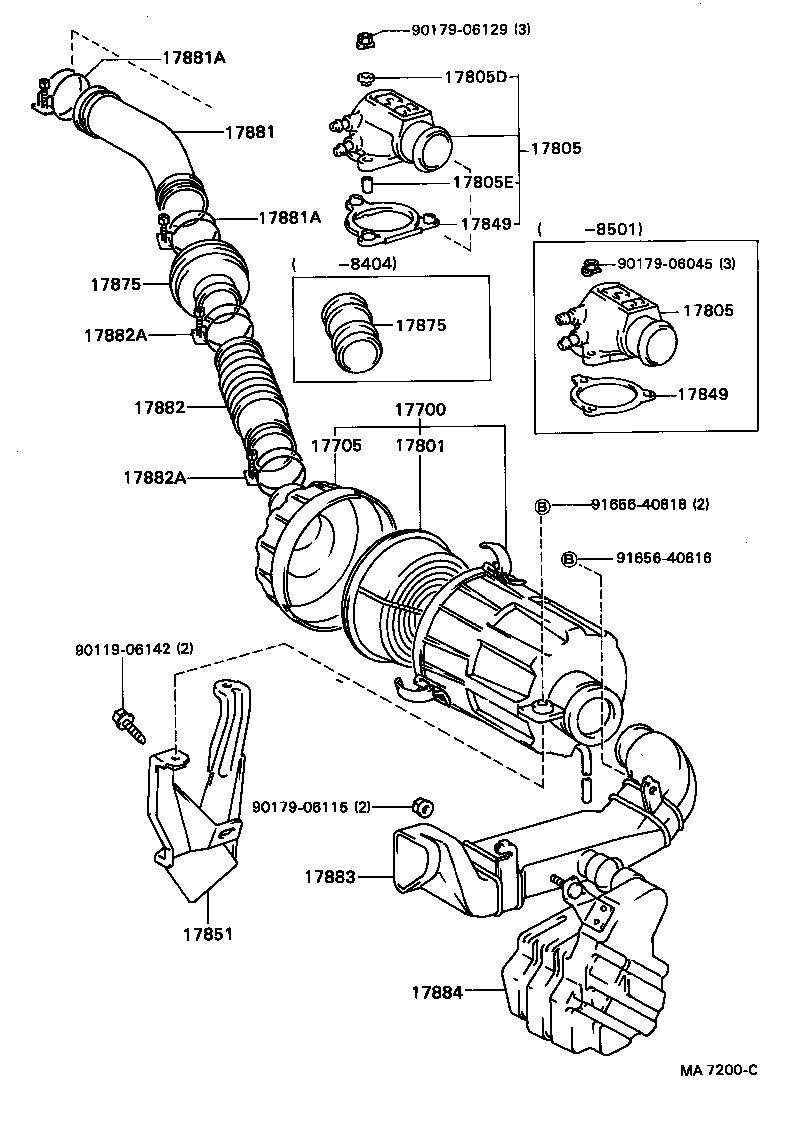

Click highlighted areas on diagram

diagram 17700 17705 17801 17805 17805 17805D 17805E 17849 17849 17851 17875 17875 17881 17881A 17881A 17882 17882A 17882A 17883 17884 9011906142 9017906045 9017906115 9017906129 9165640616 9165640818
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-63040

1SILU..ST150

 1
17700-63100

1SILU..ST150

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-63040

1SILU..ST150

 1
17705-63060

1SILU..ST150

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74010

1SILU..ST150

 1
17801-63010

1SILU..ST150

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17860-63010

1SILU..ST150

 1
17805-63010

1SILU..ST150

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17860-63010

1SILU..ST150

 1
17805-63010

1SILU..ST150

 1
17805D - GROMMET(FOR INTAKE AIR CONNECTOR)
90480-12011

1SILU..ST150

 3
17805E - COLLAR(FOR INTAKE AIR CONNECTOR)
90387-06029

1SILU..ST150

 3
17849 - GASKET, INTAKE AIR CONNECTOR
17849-63010

1SILU..ST150

 1
17849-63011

1SILU..ST150

 1
17849 - GASKET, INTAKE AIR CONNECTOR
17849-63010

1SILU..ST150

 1
17849-63011

1SILU..ST150

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-63010

1SILU..ST150

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-63040

1SILU..ST150

 1
17875-63010

1SILU..ST150

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-63040

1SILU..ST150

 1
17875-63010

1SILU..ST150

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-63030

1SILU..ST150

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

1S#..ST150,160

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

1S#..ST150,160

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-63080

1SILU..ST150

 1
17882-63010

1SILU..ST150

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

1S#..ST150,160

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

1S#..ST150,160

 2
17883 - HOSE, AIR CLEANER, NO.3
17882-20070

1S#..ST150

 1
17884 - HOSE, AIR CLEANER, NO.4
17883-20030

1S#..ST150

 1
Common parts
90119-06142
90179-06045
90179-06115
90179-06129
91656-40616
91656-40818

(8508- )1SILU

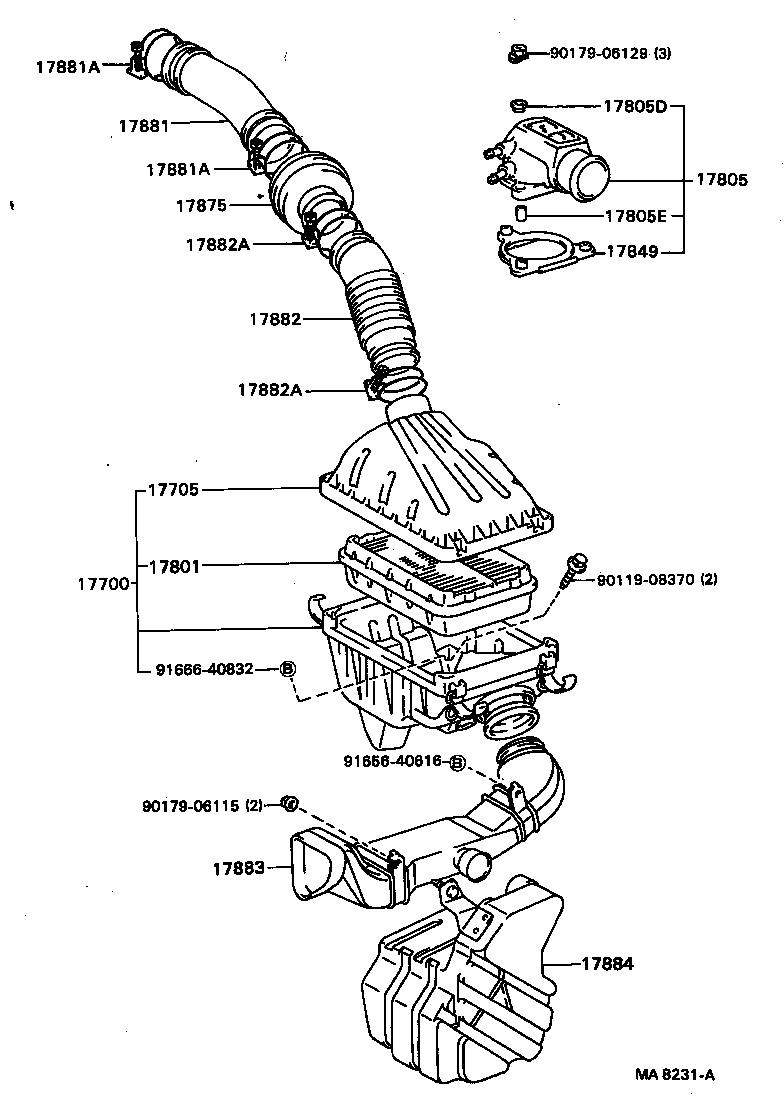

Click highlighted areas on diagram

diagram 17700 17705 17801 17805 17805D 17805E 17849 17875 17881 17881A 17881A 17882 17882A 17882A 17883 17884 9011908370 9017906115 9017906129 9165640616 9166640832
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-63040

1SILU..ST150

 1
17700-63100

1SILU..ST150

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-63040

1SILU..ST150

 1
17705-63060

1SILU..ST150

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74010

1SILU..ST150

 1
17801-63010

1SILU..ST150

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17860-63010

1SILU..ST150

 1
17805-63010

1SILU..ST150

 1
17805D - GROMMET(FOR INTAKE AIR CONNECTOR)
90480-12011

1SILU..ST150

 3
17805E - COLLAR(FOR INTAKE AIR CONNECTOR)
90387-06029

1SILU..ST150

 3
17849 - GASKET, INTAKE AIR CONNECTOR
17849-63010

1SILU..ST150

 1
17849-63011

1SILU..ST150

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-63040

1SILU..ST150

 1
17875-63010

1SILU..ST150

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-63030

1SILU..ST150

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

1S#..ST150,160

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

1S#..ST150,160

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-63080

1SILU..ST150

 1
17882-63010

1SILU..ST150

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

1S#..ST150,160

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

1S#..ST150,160

 2
17883 - HOSE, AIR CLEANER, NO.3
17882-20070

1S#..ST150

 1
17884 - HOSE, AIR CLEANER, NO.4
17883-20030

1S#..ST150

 1
Common parts
90119-08370
90179-06115
90179-06129
91656-40616
91666-40832
