ST150-TLMGE (1983)
Toyota Corona
Production
Oct 1983
-
Nov 1987
Engine
1SELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

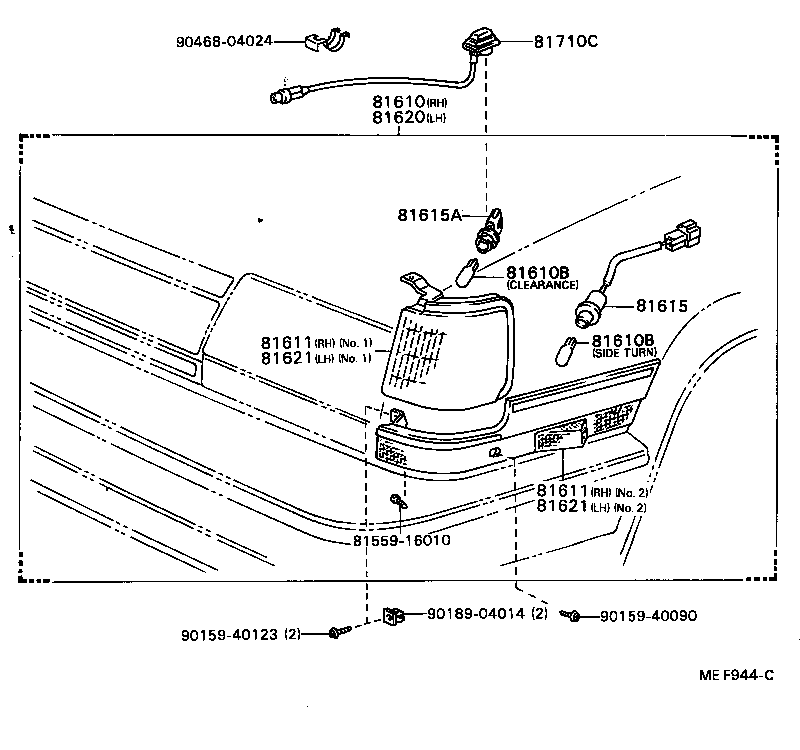

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-20280 |
AT150,ST150..5D |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
AT150,CT150,ST150,16# 12V 5W,12V 5W |
4 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
AT150,CT150,ST150,16# 12V 5W,12V 5W |
4 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-20300 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR NO.1 |
1 | ||
| 81613-20280 |
AT150,ST150..5D NO.2 |
1 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-20300 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR NO.1 |
1 | ||
| 81613-20280 |
AT150,ST150..5D NO.2 |
1 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 81516-20290 |
AT150,CT150,ST150,16# |
2 | ||
| 81615A - SOCKET PLUG, CLEARANCE LAMP | ||||
| 81735-12180 |
AT150,CT150,ST150,16# |
1 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-20280 |
AT150,ST150..5D |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-20300 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR NO.1 |
1 | ||
| 81623-20280 |
AT150,ST150..5D NO.2 |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-20300 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR NO.1 |
1 | ||
| 81623-20280 |
AT150,ST150..5D NO.2 |
1 | ||
| 81710C - MARKER ASSY, FENDER | ||||
| 81710-20010 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR |
2 | ||
| Common parts | ||||
| 81559-16010 | ||||
| 90159-40090 | ||||
| 90159-40123 | ||||
| 90189-04014 | ||||
| 90468-04024 | ||||
