ST150-TEPGE (1983)
Toyota Corona
(8301-8508)EXA,EXS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

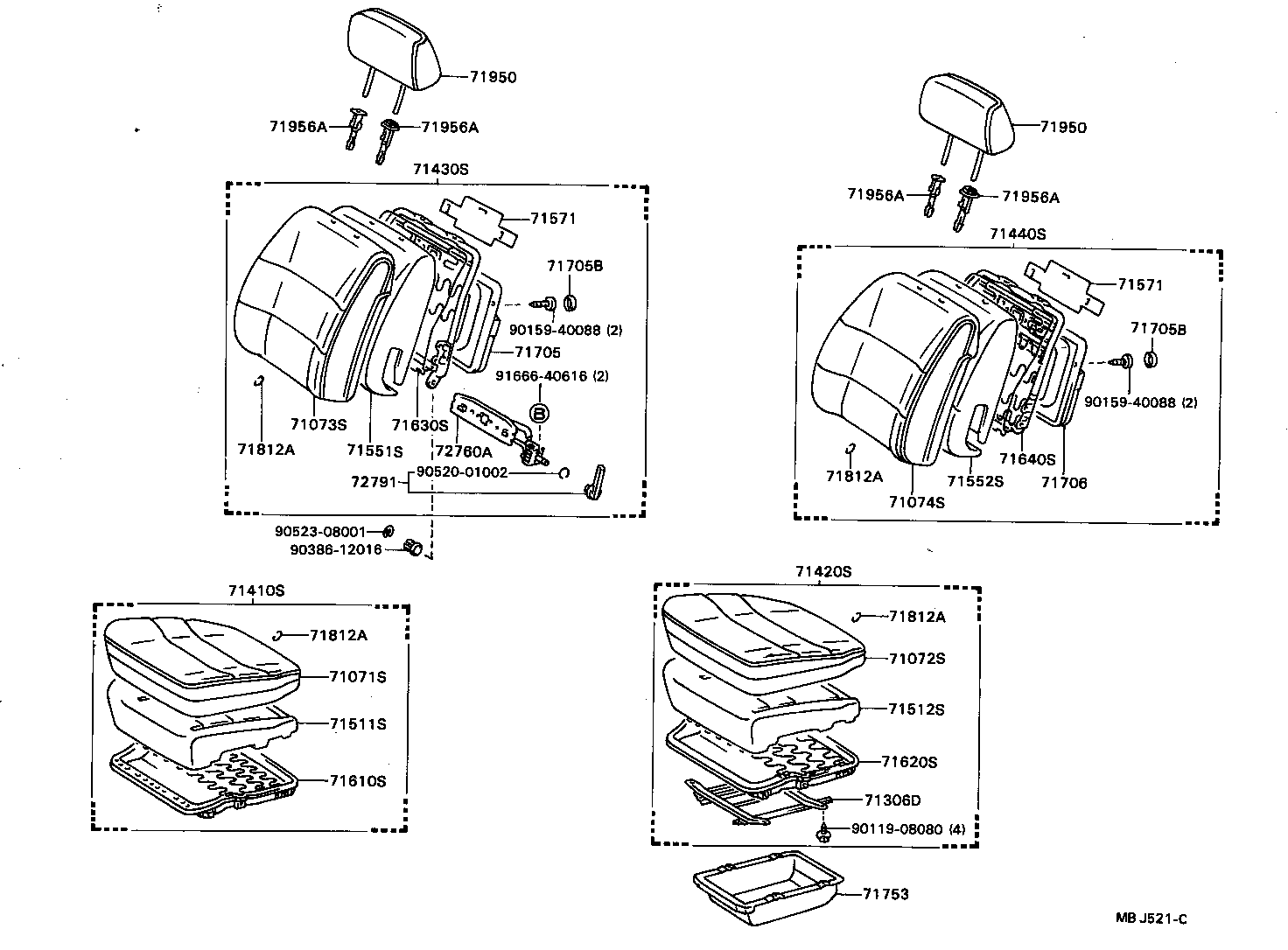

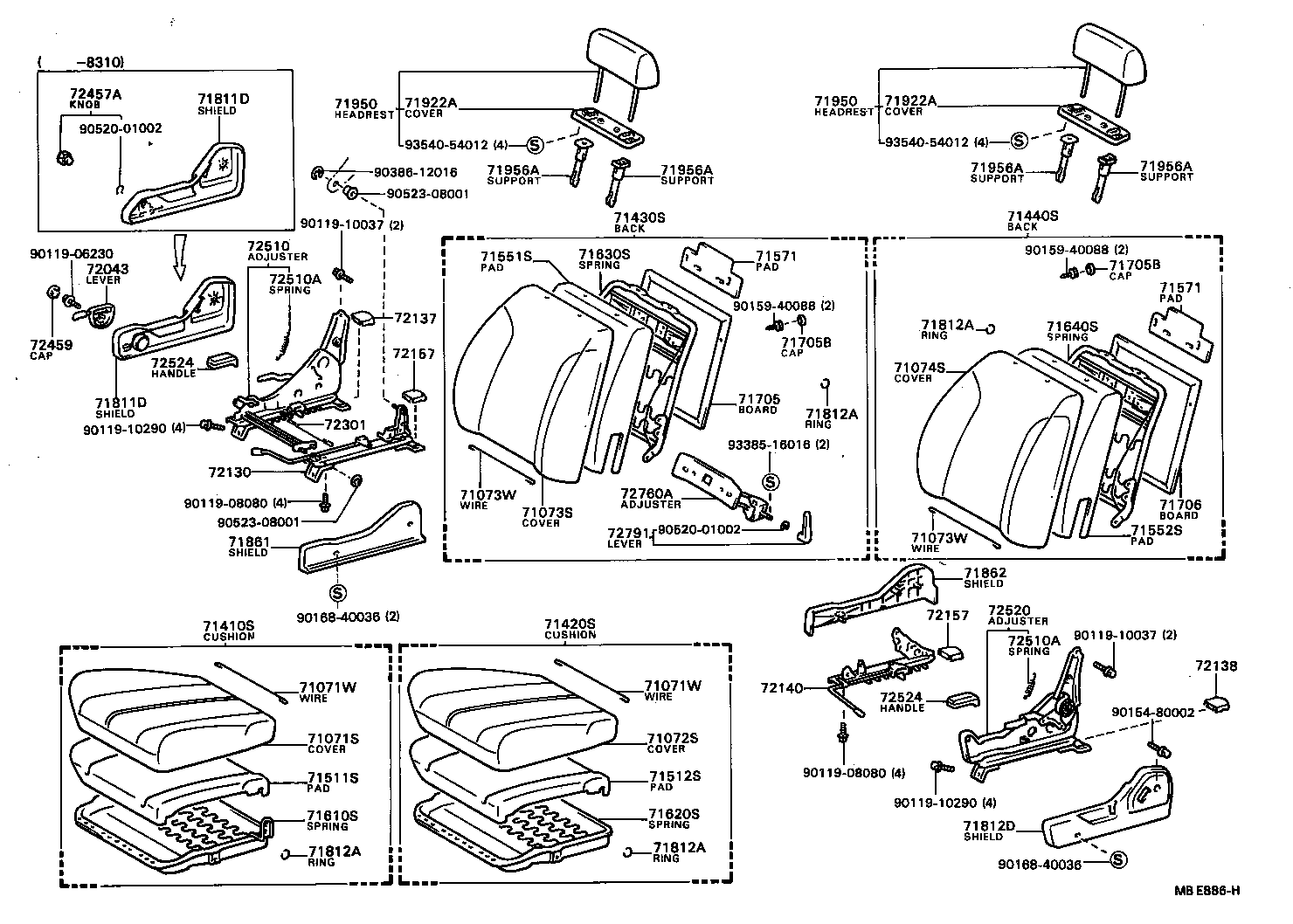

| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B38002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2B38004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B38003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B38102 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-2B38104 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B38103 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20106 |
ST150 L=500 |
4 | ||
| 90580-20107 |
AT150,CT150,ST150 L=1180 |
4 | ||
| 90580-20094 |
AT150,CT150,ST150 L=305 |
2 | ||
| 90580-20108 |
AT150,CT150,ST150 L=550 |
4 | ||
| 90580-20165 |
AT150,CT150,ST150 L=470 |
6 | ||
| 90580-20135 |
ST150 L=305 |
2 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20106 |
ST150 L=500 |
4 | ||
| 90580-20107 |
AT150,CT150,ST150 L=1180 |
4 | ||
| 90580-20094 |
AT150,CT150,ST150 L=305 |
2 | ||
| 90580-20108 |
AT150,CT150,ST150 L=550 |
4 | ||
| 90580-20165 |
AT150,CT150,ST150 L=470 |
6 | ||
| 90580-20135 |
ST150 L=305 |
2 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2082002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71072-2082003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2082103 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2082004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2082102 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-2082104 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B35003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B35004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B35103 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B35102 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-2B35002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2B35104 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-29010 |
AT150,CT150,ST150..EXA,EXS L=280 |
4 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-29010 |
AT150,CT150,ST150..EXA,EXS L=280 |
4 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2B02002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71074-2B02004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B35003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2B02003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B35002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2B35004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2B33003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2B33002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-2B33004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B47004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B47002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2B47003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B47102 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B47103 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B47104 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2074003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2074002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2074004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2074104 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2074102 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71420-2074103 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B46003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B46002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2B46004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B72002 |
CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B72003 |
CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B72004 |
CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2B17004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B17003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B17002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71440-2B45003 |
CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B45002 |
CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-2B45004 |
CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20450 |
AT150,CT150,ST150..4D..(EXA,EXS) |
1 | ||
| 71511-20370 |
AT150,CT150,ST150..4D..(EXA,EXS) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20370 |
AT150,CT150,ST150..4D..(EXA,EXS) |
1 | ||
| 71511-20450 |
AT150,CT150,ST150..4D..(EXA,EXS) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20340 |
AT150,CT150,ST150..4D..(EXA,EXS) |
1 | ||
| 71551-20380 |
AT150,CT150,ST150..EXA,EXS |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20340 |
AT150,CT150,ST150..4D..(EXA,EXS) |
1 | ||
| 71551-20380 |
AT150,CT150,ST150..EXA,EXS |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-24010 |
AT150,CT150,ST150 |
2 | ||
| 71571-20170 |
AT150,CT150,ST150,16# |
2 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-24010 |
AT150,CT150,ST150 |
2 | ||
| 71571-20170 |
AT150,CT150,ST150,16# |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20340 |
ST150 |
1 | ||
| 71610-20330 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20150 |
AT150,CT150,ST150,16# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-20320 |
AT150,CT150,ST150..EXA,EXS |
1 | ||
| 71630-20440 |
AT150,CT150,ST150..EXA,EXS |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-20240 |
AT150,CT150,ST150..EXA,EXS,SX |
1 | ||
| 71640-20310 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-2002004 |
AT150,CT150,ST150..EXA,EXS LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71705-2002012 |
AT150,CT150,ST150..EXA,EXS DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-2009004 |
CT150,ST150..4D..(EXA,EXS) BLUE,BLUE,TRIM8# |
1 | ||
| 71705-2009003 |
CT150,ST150..4D..(EXA,EXS) GRAY,GRAY,TRIM1# |
1 | ||
| 71705-2002013 |
AT150,CT150,ST150..EXA,EXS SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71705-2009002 |
CT150,ST150..4D..(EXA,EXS) MAROON,MAROON,TRIM3# |
1 | ||
| 71705B - CAP(FOR FRONT SEAT BACK BOARD) | ||||
| 90339-1000112 |
AT150,CT150,ST150..EXA,EXS DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 90339-1000104 |
AT150,CT150,ST150..EXA,EXS BLUE,BLUE,TRIM8# |
4 | ||
| 90339-1000123 |
AT150,CT150,ST150..EXA,EXS SHADOW GRAY,GRAY,TRIM1# |
4 | ||
| 90339-1000114 |
AT150,CT150,ST150..EXA,EXS BLUE,DEEP BLUE,TRIM8# |
4 | ||
| 71705B - CAP(FOR FRONT SEAT BACK BOARD) | ||||
| 90339-1000112 |
AT150,CT150,ST150..EXA,EXS DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 90339-1000104 |
AT150,CT150,ST150..EXA,EXS BLUE,BLUE,TRIM8# |
4 | ||
| 90339-1000123 |
AT150,CT150,ST150..EXA,EXS SHADOW GRAY,GRAY,TRIM1# |
4 | ||
| 90339-1000114 |
AT150,CT150,ST150..EXA,EXS BLUE,DEEP BLUE,TRIM8# |
4 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-2002004 |
AT150,CT150,ST150..EXA,EXS LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71705-2002013 |
AT150,CT150,ST150..EXA,EXS SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71705-2009004 |
CT150,ST150..4D..(EXA,EXS) BLUE,BLUE,TRIM8# |
1 | ||
| 71705-2002012 |
AT150,CT150,ST150..EXA,EXS DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-2009002 |
CT150,ST150..4D..(EXA,EXS) MAROON,MAROON,TRIM3# |
1 | ||
| 71705-2009003 |
CT150,ST150..4D..(EXA,EXS) GRAY,GRAY,TRIM1# |
1 | ||

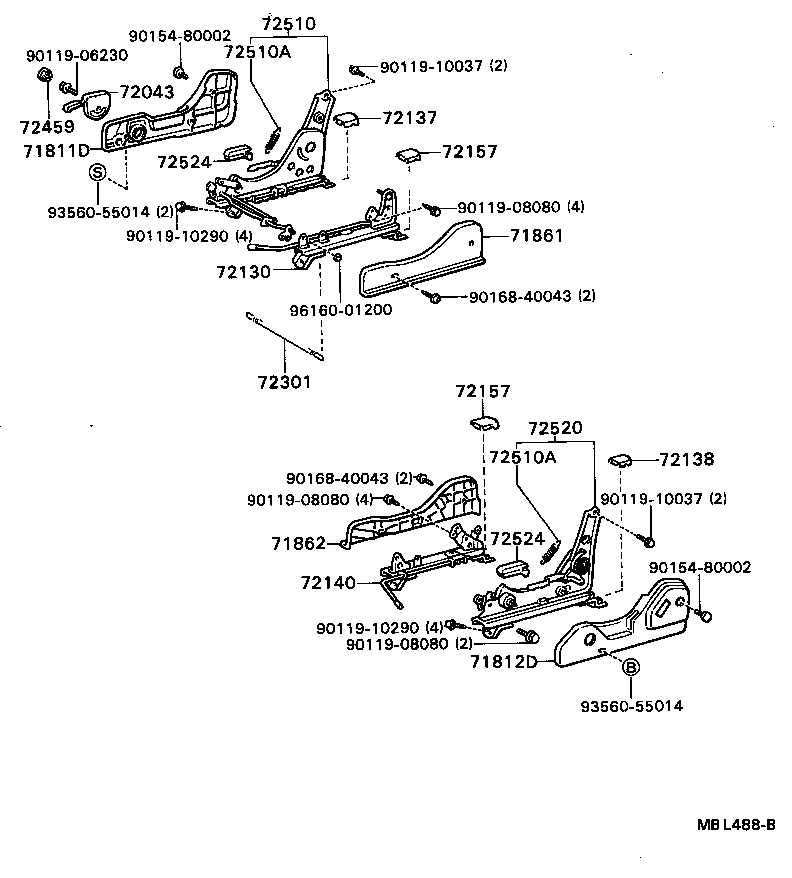

| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2010002 |
AT150,CT150,ST150..EXA,EXS,GX,SX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-1407012 |
ST150 DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-2010002 |
AT150,CT150,ST150..EXA,EXS,GX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-1407003 |
ST150 SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71811-2010003 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71811-2010014 |
AT150,CT150,ST150..EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 71811-2010004 |
AT150,CT150,ST150..EXA,EXS,GX,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2010002 |
AT150,CT150,ST150..EXA,EXS,GX,SX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-1407012 |
ST150 DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-2010002 |
AT150,CT150,ST150..EXA,EXS,GX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-1407003 |
ST150 SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71811-2010003 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71811-2010014 |
AT150,CT150,ST150..EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 71811-2010004 |
AT150,CT150,ST150..EXA,EXS,GX,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT150,CT150,ST150,16# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT150,CT150,ST150,16# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT150,CT150,ST150,16# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT150,CT150,ST150,16# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407012 |
AT150,CT150,ST150..DX,EXA,EXS,GX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-1407034 |
AT150,CT150,ST150..DX,EXA,EXS,GX BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812-1407003 |
AT150,CT150,ST150,16# SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1407012 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-1407004 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2001003 |
AT150,CT150,ST150,16# SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71861-2001002 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71861-2001004 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71861-2001014 |
AT150,CT150,ST150..DX,EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 71861-2001002 |
AT150,CT150,ST150..DX,EXA,EXS,GX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2001002 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71862-2001004 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71862-2001003 |
AT150,CT150,ST150,16# SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71862-2001014 |
AT150,CT150,ST150..DX,EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 71862-2001002 |
AT150,CT150,ST150..DX,EXA,EXS,GX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71922A - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-3201033 |
AT150,CT150,ST150..EXA,EXS,SX LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71922-3201035 |
AT150,CT150,ST150..EXA,EXS,SX ROSE BEIGE,BEIGE,TRIM3# |
2 | ||
| 71922-3201034 |
AT150,CT150,ST150..EXA,EXS,SX LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71922A - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-3201033 |
AT150,CT150,ST150..EXA,EXS,SX LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71922-3201035 |
AT150,CT150,ST150..EXA,EXS,SX ROSE BEIGE,BEIGE,TRIM3# |
2 | ||
| 71922-3201034 |
AT150,CT150,ST150..EXA,EXS,SX LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2043002 |
AT150,CT150,ST150..4D..(EXA,EXS) ROSE BEIGE,RED/MAROON,TRIM3# |
2 | ||
| 71910-2043004 |
AT150,CT150,ST150..4D..(EXA,EXS) LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2043003 |
AT150,CT150,ST150..4D..(EXA,EXS) LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71910-2064002 |
AT150,CT150,ST150..4D..(EXA,EXS) MAROON,MAROON,TRIM3# |
2 | ||
| 71910-2064004 |
AT150,CT150,ST150..4D..(EXA,EXS) BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2064003 |
AT150,CT150,ST150..4D..(EXA,EXS) GRAY,GRAY,TRIM1# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2043002 |
AT150,CT150,ST150..4D..(EXA,EXS) ROSE BEIGE,RED/MAROON,TRIM3# |
2 | ||
| 71910-2043004 |
AT150,CT150,ST150..4D..(EXA,EXS) LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2043003 |
AT150,CT150,ST150..4D..(EXA,EXS) LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71910-2064002 |
AT150,CT150,ST150..4D..(EXA,EXS) MAROON,MAROON,TRIM3# |
2 | ||
| 71910-2064004 |
AT150,CT150,ST150..4D..(EXA,EXS) BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2064003 |
AT150,CT150,ST150..4D..(EXA,EXS) GRAY,GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409003 |
AT150,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409023 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402023 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402003 |
AT150,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409003 |
AT150,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409023 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402023 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402003 |
AT150,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409003 |
AT150,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409023 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402023 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402003 |
AT150,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409003 |
AT150,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409023 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402023 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402003 |
AT150,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72043 - LEVER SUB-ASSY, SEAT LIFTER | ||||
| 72043-2001004 |
AT150,CT150,ST150..EXA,EXS,GX,SX BLUE,BLUE,TRIM8# |
1 | ||
| 72043-2001002 |
AT150,CT150,ST150..EXA,EXS,GX,SX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72043-2001003 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72043-2001002 |
AT150,CT150,ST150..EXA,EXS,GX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72043-2001004 |
AT150,CT150,ST150..EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-20170 |
ST150 |
1 | ||
| 72130-20190 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3201001 |
AT150,CT150,ST150,16# BLACK,BLACK |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-3201001 |
AT150,CT150,ST150,16# BLACK,BLACK |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-20130 |
AT150,CT150,ST150,16# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-3201001 |
AT150,CT150,ST150,16# BLACK,BLACK |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-3201001 |
AT150,CT150,ST150,16# BLACK,BLACK |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20180 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1404003 |
ST150 SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72457-1404012 |
ST150 DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-1201003 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72459-1201002 |
AT150,CT150,ST150..EXA,EXS,GX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72459-1201004 |
AT150,CT150,ST150..EXA,EXS,GX,SX BLUE,BLUE,TRIM8# |
1 | ||
| 72459-1201002 |
AT150,CT150,ST150..EXA,EXS,GX,SX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72459-1201024 |
AT150,CT150,ST150..EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-20110 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR |
1 | ||
| 72010-20090 |
ST150 |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AT150,CT150,ST150,16# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AT150,CT150,ST150,16# |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-20170 |
AT150,CT150,ST150,16# |
1 | ||
| 72020-20130 |
AT150,CT150,ST150 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401013 |
AT150,CT150,ST150 RH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401013 |
AT150,CT150,ST150 LH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-1401014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-1401043 |
AT150,CT150,ST150,16# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401044 |
AT150,CT150,ST150..DX,EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401043 |
AT150,CT150,ST150,16# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401044 |
AT150,CT150,ST150..DX,EXA,EXS,GX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401013 |
AT150,CT150,ST150 RH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401013 |
AT150,CT150,ST150 LH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-1401014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-1401043 |
AT150,CT150,ST150,16# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401044 |
AT150,CT150,ST150..DX,EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401043 |
AT150,CT150,ST150,16# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401044 |
AT150,CT150,ST150..DX,EXA,EXS,GX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-14030 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202004 |
AT150,CT150,ST150..EXA,EXS,SX BLUE,BLUE,TRIM8# |
1 | ||
| 72791-2202052 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR DEEP MAROON,MAROON,TRIM3# |
1 | ||
| 72791-2202022 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72791-2202024 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR BLUE,BLUE,TRIM8# |
1 | ||
| 72791-2202023 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06230 | ||||
| 90119-08080 | ||||
| 90119-10037 | ||||
| 90119-10290 | ||||
| 90154-80002 | ||||
| 90159-40088 | ||||
| 90168-40036 | ||||
| 90386-12016 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93385-16016 | ||||
| 93540-54012 | ||||
ILLUST NO. 1 OF 2(8508- )EXA,EXS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B38002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71071-2B38004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B38003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2B38102 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-2B38104 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2B38103 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2082002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71072-2082003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2082103 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71072-2082004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2082102 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-2082104 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B35003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B35004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B35103 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B35102 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-2B35002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2B35104 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2B02002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71074-2B02004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2B35003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2B02003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2B35002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2B35004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71074-2B33003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2B33002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-2B33004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71306D - BRACKET SUB-ASSY, FRONT SEAT SET | ||||
| 71306-20010 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B47004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2B47002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2B47003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B47102 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-2B47103 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2B47104 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2074003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2074002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2074004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2074104 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2074102 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71420-2074103 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B46003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B46002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2B46004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2B72002 |
CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-2B72003 |
CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2B72004 |
CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2B17004 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2B17003 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B17002 |
AT150,CT150,ST150..4D..(EXA,EXS) FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71440-2B45003 |
CT150,ST150..4D..(EXA,EXS) FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2B45002 |
CT150,ST150..4D..(EXA,EXS) FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-2B45004 |
CT150,ST150..4D..(EXA,EXS) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20450 |
AT150,CT150,ST150..4D..(EXA,EXS) |
1 | ||
| 71511-20370 |
AT150,CT150,ST150..4D..(EXA,EXS) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20370 |
AT150,CT150,ST150..4D..(EXA,EXS) |
1 | ||
| 71511-20450 |
AT150,CT150,ST150..4D..(EXA,EXS) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20340 |
AT150,CT150,ST150..4D..(EXA,EXS) |
1 | ||
| 71551-20380 |
AT150,CT150,ST150..EXA,EXS |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20340 |
AT150,CT150,ST150..4D..(EXA,EXS) |
1 | ||
| 71551-20380 |
AT150,CT150,ST150..EXA,EXS |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-24010 |
AT150,CT150,ST150 |
2 | ||
| 71571-20170 |
AT150,CT150,ST150,16# |
2 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-24010 |
AT150,CT150,ST150 |
2 | ||
| 71571-20170 |
AT150,CT150,ST150,16# |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20340 |
ST150 |
1 | ||
| 71610-20330 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20150 |
AT150,CT150,ST150,16# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-20320 |
AT150,CT150,ST150..EXA,EXS |
1 | ||
| 71630-20440 |
AT150,CT150,ST150..EXA,EXS |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-20240 |
AT150,CT150,ST150..EXA,EXS,SX |
1 | ||
| 71640-20310 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-2002004 |
AT150,CT150,ST150..EXA,EXS LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71705-2002012 |
AT150,CT150,ST150..EXA,EXS DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-2009004 |
CT150,ST150..4D..(EXA,EXS) BLUE,BLUE,TRIM8# |
1 | ||
| 71705-2009003 |
CT150,ST150..4D..(EXA,EXS) GRAY,GRAY,TRIM1# |
1 | ||
| 71705-2002013 |
AT150,CT150,ST150..EXA,EXS SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71705-2009002 |
CT150,ST150..4D..(EXA,EXS) MAROON,MAROON,TRIM3# |
1 | ||
| 71705B - CAP(FOR FRONT SEAT BACK BOARD) | ||||
| 90339-1000112 |
AT150,CT150,ST150..EXA,EXS DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 90339-1000104 |
AT150,CT150,ST150..EXA,EXS BLUE,BLUE,TRIM8# |
4 | ||
| 90339-1000123 |
AT150,CT150,ST150..EXA,EXS SHADOW GRAY,GRAY,TRIM1# |
4 | ||
| 90339-1000114 |
AT150,CT150,ST150..EXA,EXS BLUE,DEEP BLUE,TRIM8# |
4 | ||
| 71705B - CAP(FOR FRONT SEAT BACK BOARD) | ||||
| 90339-1000112 |
AT150,CT150,ST150..EXA,EXS DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 90339-1000104 |
AT150,CT150,ST150..EXA,EXS BLUE,BLUE,TRIM8# |
4 | ||
| 90339-1000123 |
AT150,CT150,ST150..EXA,EXS SHADOW GRAY,GRAY,TRIM1# |
4 | ||
| 90339-1000114 |
AT150,CT150,ST150..EXA,EXS BLUE,DEEP BLUE,TRIM8# |
4 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-2002004 |
AT150,CT150,ST150..EXA,EXS LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 71705-2002013 |
AT150,CT150,ST150..EXA,EXS SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71705-2009004 |
CT150,ST150..4D..(EXA,EXS) BLUE,BLUE,TRIM8# |
1 | ||
| 71705-2002012 |
AT150,CT150,ST150..EXA,EXS DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71705-2009002 |
CT150,ST150..4D..(EXA,EXS) MAROON,MAROON,TRIM3# |
1 | ||
| 71705-2009003 |
CT150,ST150..4D..(EXA,EXS) GRAY,GRAY,TRIM1# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-20040 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT150,CT150,ST150,16# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT150,CT150,ST150,16# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT150,CT150,ST150,16# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT150,CT150,ST150,16# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2043002 |
AT150,CT150,ST150..4D..(EXA,EXS) ROSE BEIGE,RED/MAROON,TRIM3# |
2 | ||
| 71910-2043004 |
AT150,CT150,ST150..4D..(EXA,EXS) LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2043003 |
AT150,CT150,ST150..4D..(EXA,EXS) LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71910-2064002 |
AT150,CT150,ST150..4D..(EXA,EXS) MAROON,MAROON,TRIM3# |
2 | ||
| 71910-2064004 |
AT150,CT150,ST150..4D..(EXA,EXS) BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2064003 |
AT150,CT150,ST150..4D..(EXA,EXS) GRAY,GRAY,TRIM1# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2043002 |
AT150,CT150,ST150..4D..(EXA,EXS) ROSE BEIGE,RED/MAROON,TRIM3# |
2 | ||
| 71910-2043004 |
AT150,CT150,ST150..4D..(EXA,EXS) LIGHT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2043003 |
AT150,CT150,ST150..4D..(EXA,EXS) LIGHT GRAY,GRAY,TRIM1# |
2 | ||
| 71910-2064002 |
AT150,CT150,ST150..4D..(EXA,EXS) MAROON,MAROON,TRIM3# |
2 | ||
| 71910-2064004 |
AT150,CT150,ST150..4D..(EXA,EXS) BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2064003 |
AT150,CT150,ST150..4D..(EXA,EXS) GRAY,GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409003 |
AT150,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409023 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402023 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402003 |
AT150,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409003 |
AT150,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409023 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402023 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402003 |
AT150,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409003 |
AT150,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409023 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402023 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402003 |
AT150,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1409014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409003 |
AT150,CT150,ST150 W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1409024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409005 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/LOCK,BEIGE,BEIGE,TRIM3# |
2 | ||
| 71930-1409023 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402023 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402002 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402003 |
AT150,CT150,ST150 W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402033 |
AT150,CT150,ST150,16# W/O LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71930-1409012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402012 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1402014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409033 |
AT150,CT150,ST150,16# W/LOCK,GRAY,GRAY,TRIM1# |
2 | ||
| 71931-1402034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1409034 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1402024 |
AT150,CT150,ST150..DX,EXA,EXS,GX W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-14030 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202004 |
AT150,CT150,ST150..EXA,EXS,SX BLUE,BLUE,TRIM8# |
1 | ||
| 72791-2202052 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR DEEP MAROON,MAROON,TRIM3# |
1 | ||
| 72791-2202022 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72791-2202024 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR BLUE,BLUE,TRIM8# |
1 | ||
| 72791-2202023 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90159-40088 | ||||
| 90386-12016 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91666-40616 | ||||
ILLUST NO. 2 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2010002 |
AT150,CT150,ST150..EXA,EXS,GX,SX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-1407012 |
ST150 DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-2010002 |
AT150,CT150,ST150..EXA,EXS,GX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71811-1407003 |
ST150 SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71811-2010003 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71811-2010014 |
AT150,CT150,ST150..EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 71811-2010004 |
AT150,CT150,ST150..EXA,EXS,GX,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407012 |
AT150,CT150,ST150..DX,EXA,EXS,GX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-1407034 |
AT150,CT150,ST150..DX,EXA,EXS,GX BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812-1407003 |
AT150,CT150,ST150,16# SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1407012 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71812-1407004 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2001003 |
AT150,CT150,ST150,16# SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71861-2001002 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71861-2001004 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71861-2001014 |
AT150,CT150,ST150..DX,EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 71861-2001002 |
AT150,CT150,ST150..DX,EXA,EXS,GX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2001002 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 71862-2001004 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX BLUE,BLUE,TRIM8# |
1 | ||
| 71862-2001003 |
AT150,CT150,ST150,16# SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 71862-2001014 |
AT150,CT150,ST150..DX,EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 71862-2001002 |
AT150,CT150,ST150..DX,EXA,EXS,GX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72043 - LEVER SUB-ASSY, SEAT LIFTER | ||||
| 72043-2001004 |
AT150,CT150,ST150..EXA,EXS,GX,SX BLUE,BLUE,TRIM8# |
1 | ||
| 72043-2001002 |
AT150,CT150,ST150..EXA,EXS,GX,SX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72043-2001003 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72043-2001002 |
AT150,CT150,ST150..EXA,EXS,GX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72043-2001004 |
AT150,CT150,ST150..EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-20170 |
ST150 |
1 | ||
| 72130-20190 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3201001 |
AT150,CT150,ST150,16# BLACK,BLACK |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-3201001 |
AT150,CT150,ST150,16# BLACK,BLACK |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-20130 |
AT150,CT150,ST150,16# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-3201001 |
AT150,CT150,ST150,16# BLACK,BLACK |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-3201001 |
AT150,CT150,ST150,16# BLACK,BLACK |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20180 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-1201003 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72459-1201002 |
AT150,CT150,ST150..EXA,EXS,GX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72459-1201004 |
AT150,CT150,ST150..EXA,EXS,GX,SX BLUE,BLUE,TRIM8# |
1 | ||
| 72459-1201002 |
AT150,CT150,ST150..EXA,EXS,GX,SX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72459-1201024 |
AT150,CT150,ST150..EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-20110 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR |
1 | ||
| 72010-20090 |
ST150 |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AT150,CT150,ST150,16# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AT150,CT150,ST150,16# |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-20170 |
AT150,CT150,ST150,16# |
1 | ||
| 72020-20130 |
AT150,CT150,ST150 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401013 |
AT150,CT150,ST150 RH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401013 |
AT150,CT150,ST150 LH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-1401014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-1401043 |
AT150,CT150,ST150,16# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401044 |
AT150,CT150,ST150..DX,EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401043 |
AT150,CT150,ST150,16# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401044 |
AT150,CT150,ST150..DX,EXA,EXS,GX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401013 |
AT150,CT150,ST150 RH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401013 |
AT150,CT150,ST150 LH,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-1401014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401014 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72526-1401022 |
AT150,CT150,ST150..DX,EXA,EXS,GX,SX LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-1401043 |
AT150,CT150,ST150,16# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401044 |
AT150,CT150,ST150..DX,EXA,EXS,GX BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401043 |
AT150,CT150,ST150,16# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401044 |
AT150,CT150,ST150..DX,EXA,EXS,GX LH,BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-06230 | ||||
| 90119-08080 | ||||
| 90119-10037 | ||||
| 90119-10290 | ||||
| 90154-80002 | ||||
| 90168-40043 | ||||
| 93560-55014 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
