ST150-TEMNL (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 5(8310- )

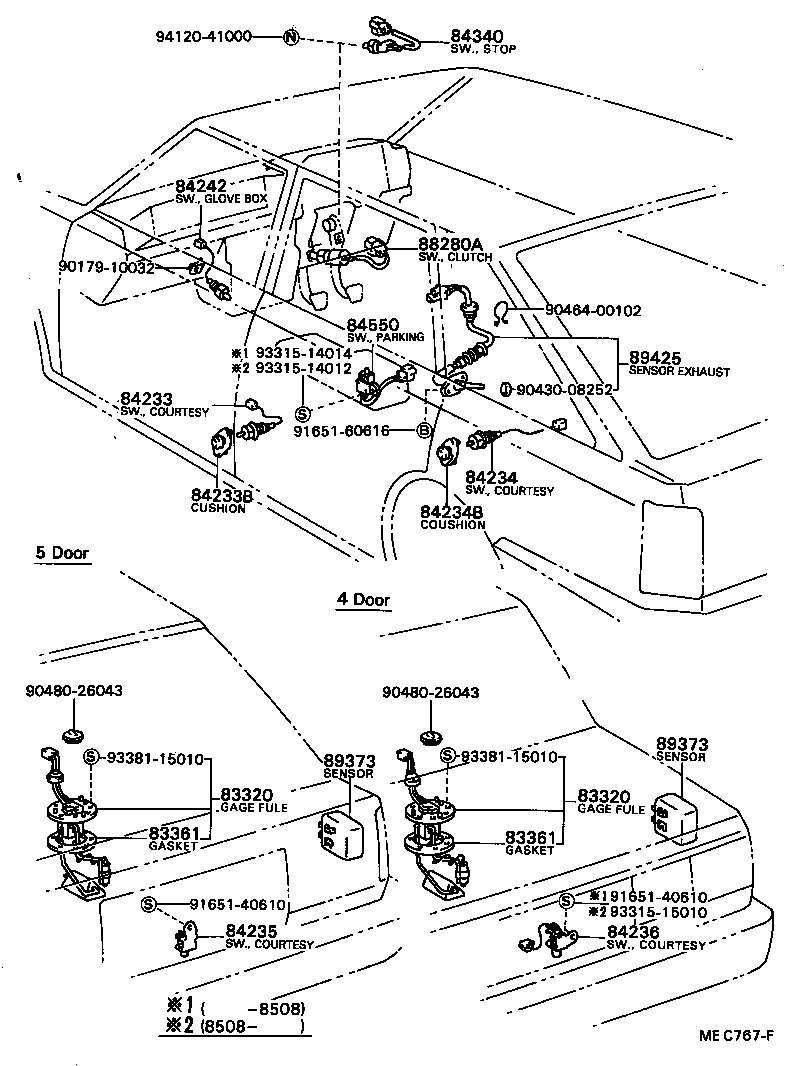

Click highlighted areas on diagram

diagram 83320 83320 83361 83361 84233 84233B 84234 84234B 84235 84236 84242 84340 84550 88280A 89373 89373 89425 9017910032 9043008252 9046400102 9048026043 9048026043 9165140610 9165140610 9165160616 9331514012 9331514014 9331515010 9338115010 9338115010 9412041000
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-29795

AT150,ST150..DX,EXA,EXS,GX,SX

 1
83320-29796

AT150,ST150..DX,EXA,EXS,GX,SX

 1
83320-29798

AT150,ST150..DX,EXA,EXS,GX,SX

 1
83320 - GAGE ASSY, FUEL SENDER
83320-29795

AT150,ST150..DX,EXA,EXS,GX,SX

 1
83320-29796

AT150,ST150..DX,EXA,EXS,GX,SX

 1
83320-29798

AT150,ST150..DX,EXA,EXS,GX,SX

 1
83361 - GASKET, FUEL SENDER GAGE
83361-32010

AT150,CT150,ST150

 1
83361 - GASKET, FUEL SENDER GAGE
83361-32010

AT150,CT150,ST150

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-20080

ST150

 2
84230-12120

AT150,CT150,ST150,16#

 2
84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR)
84234-24010

AT150,CT150,ST150,16#

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-20080

ST150

 2
84230-12120

AT150,CT150,ST150,16#

 2
84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR)
84234-24010

AT150,CT150,ST150,16#

 2
84242 - SWITCH, GLOVE BOX LAMP
84242-20020

AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR

 1
84340 - SWITCH ASSY, STOP LAMP
84340-30030

AT150,CT150,ST150,16#

MATSUSHITA

 1
84340-32010

AT150,CT150,ST150,16#

TOKAIRIKA

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-16010

AT150,CT150,ST150,16#

 1
84550-24010

AT150,CT150,ST150

 1
89373 - SENSOR, LAMP FAILURE INDICATOR
89373-20060

CT150,ST150,16#..4D

 1
89373-20050

ST150..4D..GX

 1
89373 - SENSOR, LAMP FAILURE INDICATOR
89373-20060

CT150,ST150,16#..4D

 1
89373-20050

ST150..4D..GX

 1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-12250

AT150,ST150..CBR,CI

 1
89425-12190

AT150,ST150..CBR,CI

 1
89425-19285

AT150,ST150..CBR,CI

 1
Common parts
90179-10032
90430-08252
90464-00102
90480-26043
91651-40610
91651-60616
93315-14012
93315-14014
93315-15010
93381-15010
94120-41000
