ST150-TEMEL (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )3ALU,1SILU

Click highlighted areas on diagram

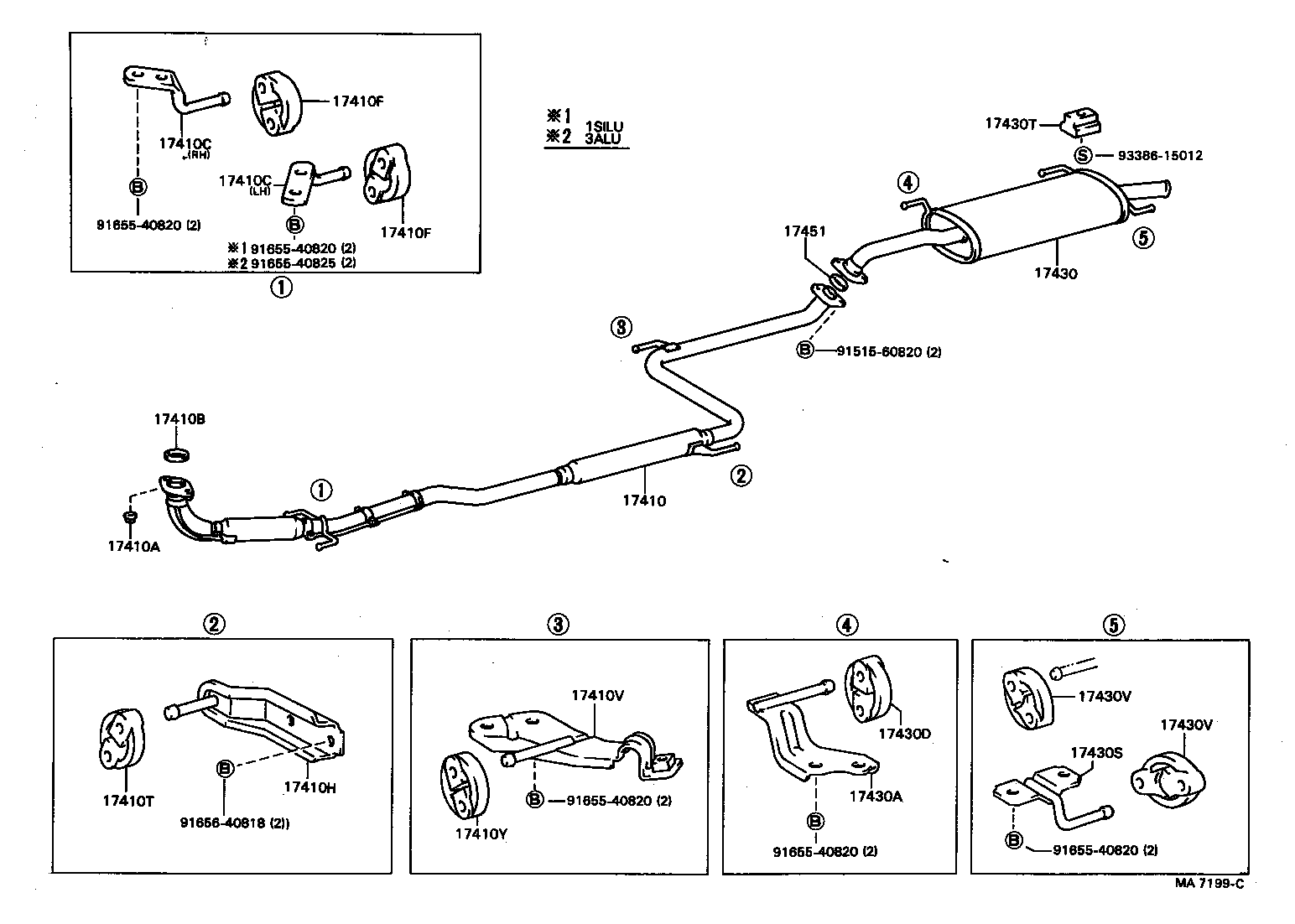

diagram 17410 17410A 17410B 17410C 17410C 17410F 17410F 17410H 17410T 17410V 17410Y 17430 17430A 17430D 17430S 17430T 17430V 17430V 17451 9151560820 9165540820 9165540820 9165540820 9165540820 9165540820 9165540825 9165640818 9338615012
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-63061

1SILU..ST150

 1
17410-63060

1SILU..ST150

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3ALU,2CL,1S#,3SGELU..AT150,CT150,ST150,16#

 3
90179-10028

3ALU,2CL,1S#..AT150,CT150,ST150

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

3ALU,2CL,1SILU..AT150,CT150,ST150

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17504-63010

3ALU,1SILU..AT150,ST150

RH

 1
17505-63020

1SILU..ST150

LH

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17504-63010

3ALU,1SILU..AT150,ST150

RH

 1
17505-63020

1SILU..ST150

LH

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
17565-63030

3ALU,1SILU..AT150,ST150

 2
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
17565-63030

3ALU,1SILU..AT150,ST150

 2
17410H - BRACKET, EXHAUST PIPE FRONT (FOR CENTER)
17506-63010

3ALU,2CL,1SILU..AT150,CT150,ST150

 1
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
17565-63060

3ALU,1SILU..AT150,ST150

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17507-63020

3ALU,2CL,1SILU..AT150,CT150,ST150

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-63060

3ALU,1SILU..AT150,ST150

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-63060

1S#..ST150

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-63010

3ALU,2CL,1S#..AT150,CT150,ST150

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63020

3ALU,2CL,1S#..AT150,CT150,ST150,160

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-63040

3ALU,2CL,1S#..AT150,CT150,ST150

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17591-36010

3ALU,2CL,1S#,3SGELU..AT150,CT150,ST150,16#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63070

3ALU,1S#..AT150,ST150

 2
17565-63071

3ALU,1S#..AT150,ST150

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63070

3ALU,1S#..AT150,ST150

 2
17565-63071

3ALU,1S#..AT150,ST150

 2
17451 - GASKET, EXHAUST PIPE
90917-06004

2CL,1SILU..CT150,ST150

 1
Common parts
91515-60820
91655-40820
91655-40825
91656-40818
93386-15012
