ST140-TSPNS (1982)
Toyota Corona

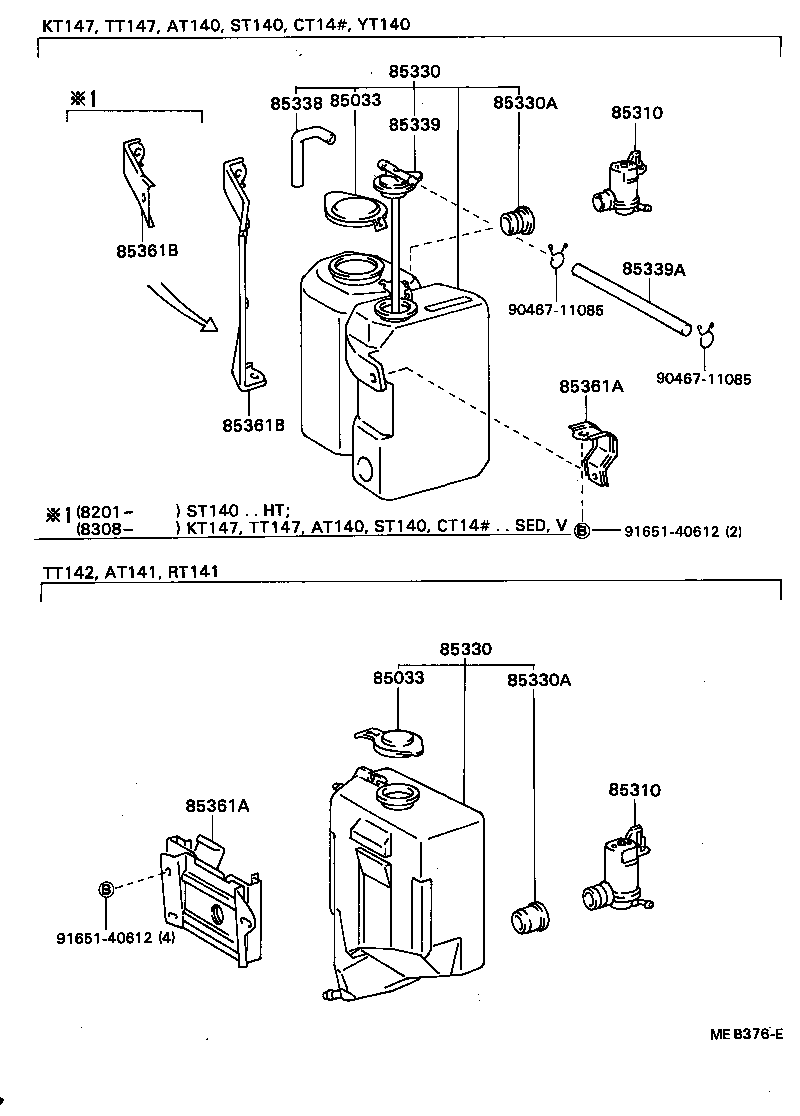

ILLUST NO. 2 OF 2(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-16010 |
AT14#,CT14#,RT141,ST140,TT14#,YT140 |
1 | ||
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-16010 |
AT14#,CT14#,RT141,ST140,TT14#,YT140 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-20350 |
ST140..HT |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-20350 |
ST140..HT |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 85338 - HOSE, BREATHER | ||||
| 85338-14040 |
AT140,CT14#,KT147,ST140,TT147 |
1 | ||
| 85339 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-14010 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 85339A - HOSE (FOR RADIATOR RESERVE TANK) | ||||
| 90445-12897 |
ST140 L=550 |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-20120 |
ST140..HT |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-20120 |
ST140..HT |
1 | ||
| 85361B - BRACKET, WINDSHIELD WASHER, NO.2 | ||||
| 85361-20170 |
ST140..HT |
1 | ||
| 85361B - BRACKET, WINDSHIELD WASHER, NO.2 | ||||
| 85361-20170 |
ST140..HT |
1 | ||
| Common parts | ||||
| 90467-11085 | ||||
| 91651-40612 | ||||

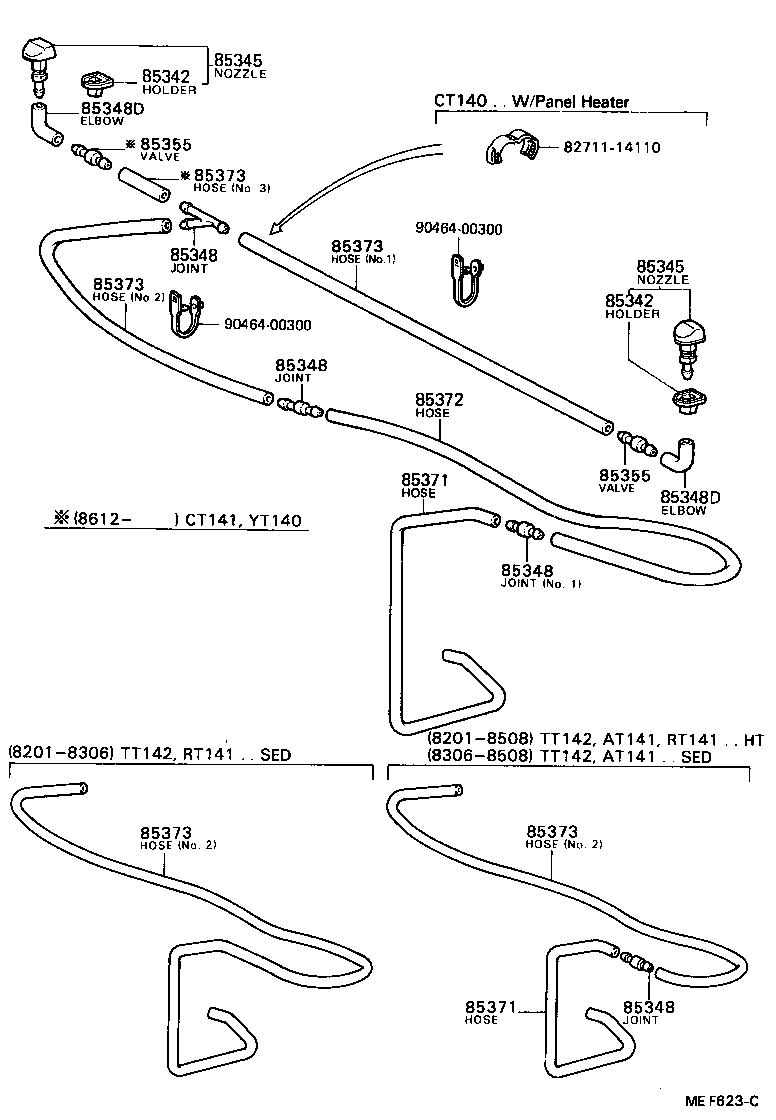

ILLUST NO. 1 OF 2(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-14010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-14010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-19015 |
AT141,RT141,ST140,TT142..HT |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-19015 |
AT141,RT141,ST140,TT142..HT |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT140,CT14#,KT147,ST140,TT147,YT140 2-WAY,NO.2 |
1 | ||
| 85349-89122 |
AT140,CT14#,KT147,ST140,TT147,YT140 2-WAY,NO.1 |
1 | ||
| 85355-12250 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 3-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT140,CT14#,KT147,ST140,TT147,YT140 2-WAY,NO.2 |
1 | ||
| 85349-89122 |
AT140,CT14#,KT147,ST140,TT147,YT140 2-WAY,NO.1 |
1 | ||
| 85355-12250 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 3-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT140,CT14#,KT147,ST140,TT147,YT140 2-WAY,NO.2 |
1 | ||
| 85349-89122 |
AT140,CT14#,KT147,ST140,TT147,YT140 2-WAY,NO.1 |
1 | ||
| 85355-12250 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 3-WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT140,CT14#,KT147,ST140,TT147,YT140 2-WAY,NO.2 |
1 | ||
| 85349-89122 |
AT140,CT14#,KT147,ST140,TT147,YT140 2-WAY,NO.1 |
1 | ||
| 85355-12250 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 3-WAY |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-12250 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-12250 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
AT140,CT14#,KT147,ST140,TT147 *H,L=400 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
AT140,CT14#,KT147,ST140,TT147 *H,L=400 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
AT140,CT14#,KT147,ST140,TT147,YT140 L=1200 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
AT140,CT14#,RT141,ST140,TT14#,YT140 *H,L=550,NO.1 |
1 | ||
| 90099-33299 |
AT140,CT140,147,KT147,ST140,TT147,YT140 長さ=450,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
AT140,CT14#,RT141,ST140,TT14#,YT140 *H,L=550,NO.1 |
1 | ||
| 90099-33299 |
AT140,CT140,147,KT147,ST140,TT147,YT140 長さ=450,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
AT140,CT14#,RT141,ST140,TT14#,YT140 *H,L=550,NO.1 |
1 | ||
| 90099-33299 |
AT140,CT140,147,KT147,ST140,TT147,YT140 長さ=450,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
AT140,CT14#,RT141,ST140,TT14#,YT140 *H,L=550,NO.1 |
1 | ||
| 90099-33299 |
AT140,CT140,147,KT147,ST140,TT147,YT140 長さ=450,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
AT140,CT14#,RT141,ST140,TT14#,YT140 *H,L=550,NO.1 |
1 | ||
| 90099-33299 |
AT140,CT140,147,KT147,ST140,TT147,YT140 長さ=450,NO.2 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90464-00300 | ||||
