ST140-TSPNS (1982)

Toyota Corona

Production Jan 1982 - Aug 1985
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

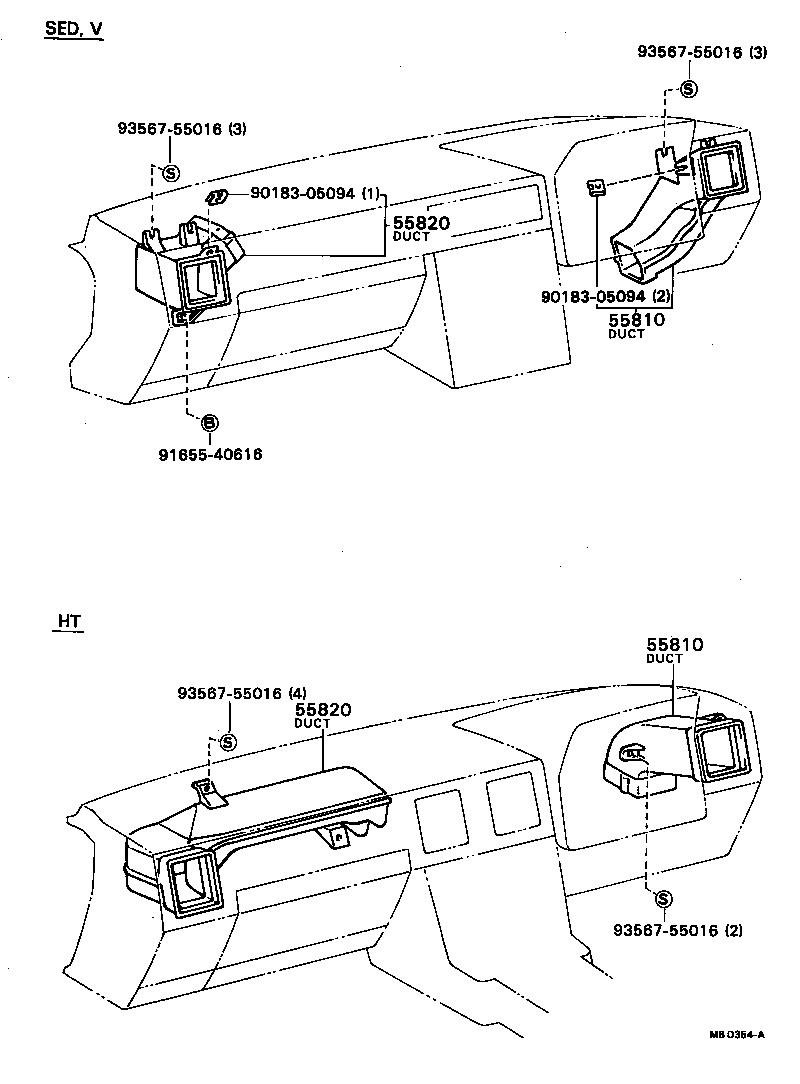

Click highlighted areas on diagram

diagram 55810 55810 55820 55820 9018305094 9018305094 9165540616 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55084-14090

AT141,RT141,ST140,TT142..HT

 1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55084-14090

AT141,RT141,ST140,TT142..HT

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55088-14030

AT141,RT141,ST140,TT142..HT

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55088-14030

AT141,RT141,ST140,TT142..HT

 1
Common parts
90183-05094
91655-40616
93567-55016
