ST140-TSPGS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)HT

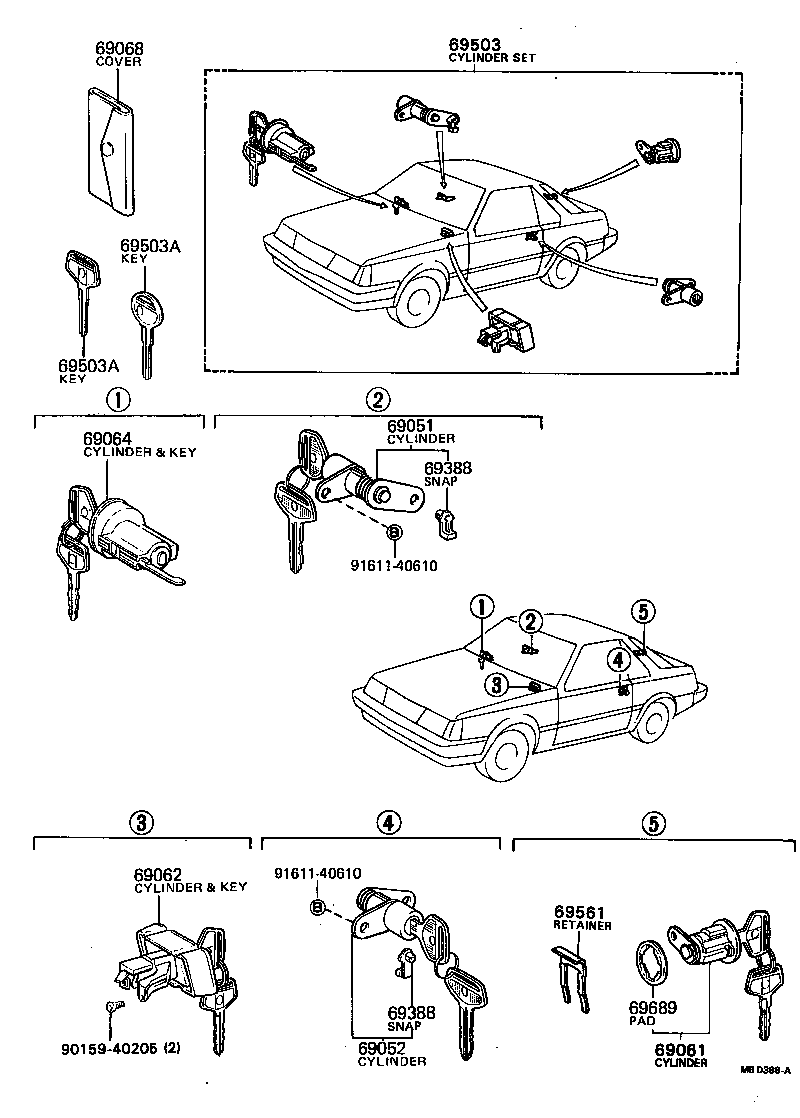

Click highlighted areas on diagram

diagram 69051 69052 69061 69062 69064 69068 69388 69388 69503 69503A 69503A 69561 69689 9015940205 9161140610 9161140610
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-14070

RT141,ST140,TT142..HT

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-14070

RT141,ST140,TT142..HT

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-29225

AT141,RT141,ST140,TT142..HT

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-1403001

YT140;RT141,ST140,TT142..HT;AT140,CT140,TT142..SED..(GTT,STD)

BLACK,BLACK,TRIM2#

 1
69056-1403004

AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX

BLUE,BLUE,TRIM8#

 1
69056-1403016

AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX

SADDLE BROWN,BROWN,TRIM4#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-14050

AT140,CT140,RT141,ST140,TT142,YT140

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24080

AT140,CT14#,RT141,ST140,TT14#,YT140

YELLOW

 2
69759-24090

AT140,CT14#,RT141,ST140,TT14#,YT140

BROWN

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24080

AT140,CT14#,RT141,ST140,TT14#,YT140

YELLOW

 2
69759-24090

AT140,CT14#,RT141,ST140,TT14#,YT140

BROWN

 2
69503 - CYLINDER SET, LOCK
69005-91D0101

RT141,ST140,TT142..HT

BLACK,BLACK,TRIM2#

 1
69005-91D0104

RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)

BLUE,BLUE,TRIM8#

 1
69005-91D0106

RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)

SADDLE BROWN,BROWN,TRIM4#

 1
69503A - KEY, BLANK
90999-00068

AT14#,CT140,RT141,ST140,TT142,YT140

ｻﾌﾞｷｰ,SUB KEY

 1
90999-00066

AT14#,CT140,RT141,ST140,TT142,YT140

ﾏｽﾀｰｷｰ,MASTER KEY

 1
69503A - KEY, BLANK
90999-00068

AT14#,CT140,RT141,ST140,TT142,YT140

ｻﾌﾞｷｰ,SUB KEY

 1
90999-00066

AT14#,CT140,RT141,ST140,TT142,YT140

ﾏｽﾀｰｷｰ,MASTER KEY

 1
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69681-20040

AT141,RT141,ST140,TT142..HT

 1
69689 - PAD, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER
69685-12010

AT14#,CT140,RT141,ST140,TT142,YT140

 1
Common parts
90159-40205
91611-40610
