ST140-TSPGS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)HT

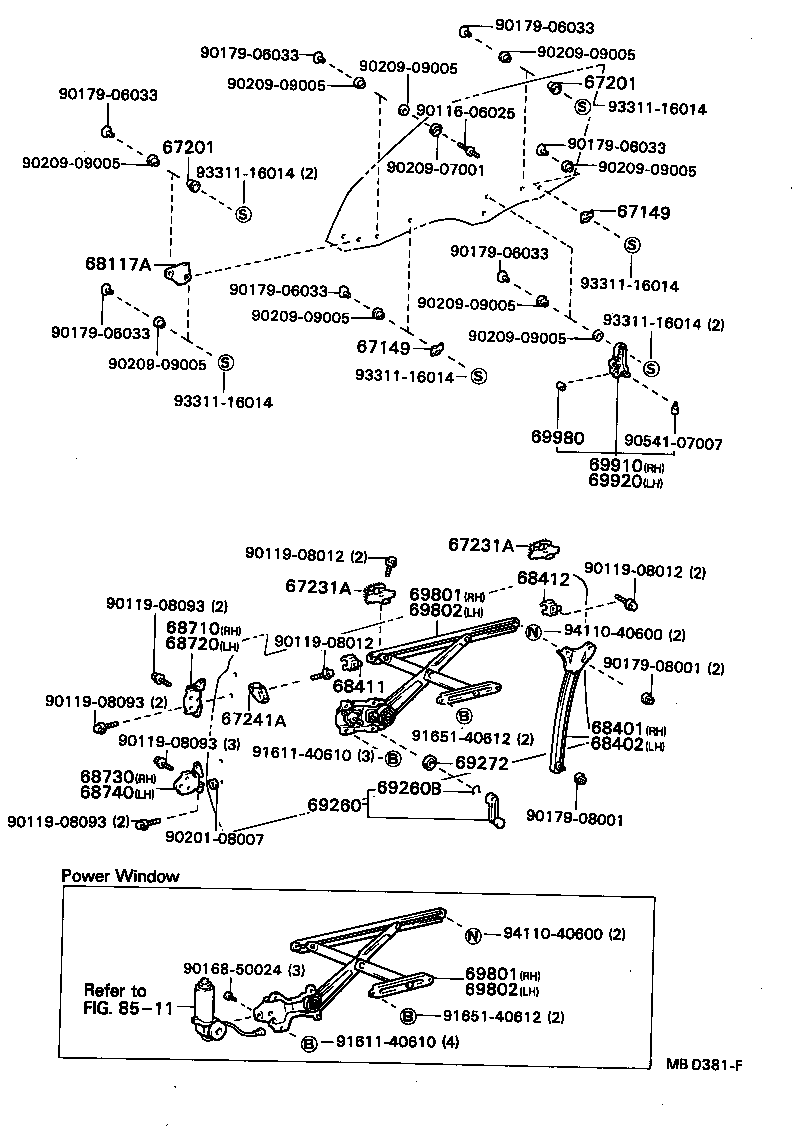

Click highlighted areas on diagram

diagram 67149 67149 67201 67201 67231A 67231A 67241A 68117A 68401 68402 68411 68412 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69910 69920 69980 8511 9011606025 9011908012 9011908012 9011908012 9011908093 9011908093 9011908093 9011908093 9016850024 9017906033 9017906033 9017906033 9017906033 9017906033 9017906033 9017906033 9017908001 9017908001 9020108007 9020907001 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9054107007 9161140610 9161140610 9165140612 9165140612 9331116014 9331116014 9331116014 9331116014 9331116014 9331116014 9411040600 9411040600
Part # Description Qty Price
67149 - STABILIZER, FRONT DOOR GLASS
68149-14010

AT141,RT141,ST140,TT142..HT

 4
67149 - STABILIZER, FRONT DOOR GLASS
68149-14010

AT141,RT141,ST140,TT142..HT

 4
67201 - STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
68147-14010

AT141,RT141,ST140,TT142..HT

 4
67201 - STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
68147-14010

AT141,RT141,ST140,TT142..HT

 4
67231A - SUPPORT, FRONT DOOR TRIM
67231-14030

AT141,RT141,ST140,TT142..HT

 4
67231A - SUPPORT, FRONT DOOR TRIM
67231-14030

AT141,RT141,ST140,TT142..HT

 4
67241A - STABILIZER, DOOR GLASS, INNER
67241-14010

AT141,RT141,ST140,TT142..HT

 2
68117A - PLATE, FRONT DOOR GLASS
68117-14010

AT141,RT141,ST140,TT142..HT

RH

 1
68118-14010

AT141,RT141,ST140,TT142..HT

LH

 1
68401 - GUIDE SUB-ASSY, FRONT DOOR WINDOW, RH
67401-14100

AT141,RT141,ST140,TT142..HT

 1
68402 - GUIDE SUB-ASSY, FRONT DOOR WINDOW, LH
67402-14100

AT141,RT141,ST140,TT142..HT

 1
68411 - STOPPER, DOOR WINDOW GLASS, UPPER FRONT
67211-14020

AT141,RT141,ST140,TT142..HT

 2
68412 - STOPPER, DOOR WINDOW GLASS, UPPER REAR
67211-14020

AT141,RT141,ST140,TT142..HT

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-14040

AT141,RT141,ST140,TT142..HT

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-14040

AT141,RT141,ST140,TT142..HT

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-14040

AT141,RT141,ST140,TT142..HT

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-14040

AT141,RT141,ST140,TT142..HT

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-14080

AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT)

W/POWER WINDOW

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-14080

AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT)

W/POWER WINDOW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-14080

AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT)

W/POWER WINDOW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-14080

AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT)

W/POWER WINDOW

 1
69910 - BRACKET ASSY, FRONT DOOR GLASS, RH
69901-14040

AT141,RT141,ST140,TT142..HT

 1
69920 - BRACKET ASSY, FRONT DOOR GLASS, LH
69902-14030

AT141,RT141,ST140,TT142..HT

 1
69980 - ROLLER ASSY, FRONT DOOR GLASS GUIDE
69981-14020

AT141,RT141,ST140,TT142..HT

 2
Common parts
90116-06025
90119-08012
90119-08093
90168-50024
90179-06033
90179-08001
90201-08007
90209-07001
90209-09005
90541-07007
91611-40610
91651-40612
93311-16014
94110-40600
Linked diagrams
8511
