ST140-TSPGS (1982)
Toyota Corona
(8201- )SED,V..DLX,EXA,EXS,GT,GTT,GX,GXA,SX ;(8305- )AT14#,CT140,147,KT147,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1403016 |
RT141,ST140,TT142..HT SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 55539-1403004 |
RT141,ST140,TT142..HT BLUE,BLUE,TRIM8# |
2 | ||
| 55539-1403001 |
RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
2 | ||
| 55539-1403116 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 55539-1403104 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) BLUE,BLUE,TRIM8# |
2 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1403004 |
RT141,ST140,TT142..HT BLUE,BLUE,TRIM8# |
2 | ||
| 55539-1403016 |
RT141,ST140,TT142..HT SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 55539-1403001 |
RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
2 | ||
| 55539-1403116 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 55539-1403104 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) BLUE,BLUE,TRIM8# |
2 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-1418004 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1418016 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 58811-1418001 |
AT141,RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
1 | ||
| 58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58827-20021 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-1401004 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 58839-1401001 |
TT142..SED..GTT;CT147,ST140,TT14#..HT,V BLACK,BLACK,TRIM2# |
1 | ||
| 58839-1401016 |
AT140,CT14#,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 58839-1401001 |
CT147,RT141,ST140,TT14#..HT,V;TT142,YT140..SED..(DLX,GTT,STD) BLACK,BLACK,TRIM2# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1404001 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX) BLACK,BLACK,TRIM2# |
1 | ||
| 58905-1404004 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 58905-1404016 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-14010 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-22010 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1405004 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1405016 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1405001 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX) BLACK,BLACK,TRIM2# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1405004 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1405016 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1405001 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX) BLACK,BLACK,TRIM2# |
1 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58902-14030 |
AT140,CT14#,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-24010 |
AT140,CT14#,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| Common parts | ||||
| 90176-04015 | ||||
| 90189-05003 | ||||
| 90541-04079 | ||||
| 93560-15014 | ||||
| 93560-55014 | ||||
| 93566-54512 | ||||

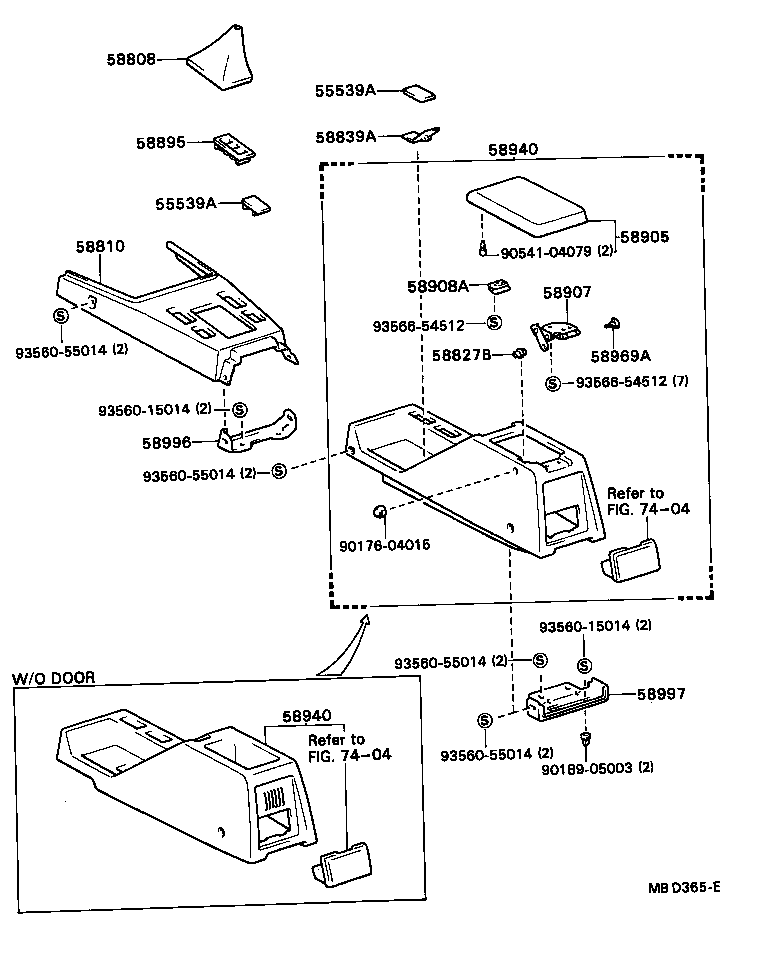

| Linked diagrams | ||||
| 7404 | ||||
(8201-8508)HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-14050 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 55477C - COVER, COOLER SWITCH HOLE | ||||
| 55477-1001001 |
AT141,RT141,ST140,TT142..HT BLACK |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1403016 |
RT141,ST140,TT142..HT SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 55539-1403004 |
RT141,ST140,TT142..HT BLUE,BLUE,TRIM8# |
2 | ||
| 55539-1403001 |
RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
2 | ||
| 55539-1403116 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 55539-1403104 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) BLUE,BLUE,TRIM8# |
2 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-1418004 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1418016 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 58811-1418001 |
AT141,RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
1 | ||
| 58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58827-20021 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX |
1 | ||
| 58836 - PANEL, CONSOLE, UPPER FRONT | ||||
| 58821-14070 |
RT141,ST140,TT142..HT |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-1401004 |
AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 58839-1401001 |
TT142..SED..GTT;CT147,ST140,TT14#..HT,V BLACK,BLACK,TRIM2# |
1 | ||
| 58839-1401016 |
AT140,CT14#,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 58839-1401001 |
CT147,RT141,ST140,TT14#..HT,V;TT142,YT140..SED..(DLX,GTT,STD) BLACK,BLACK,TRIM2# |
1 | ||
| 58884 - COVER, STEREO OPENING | ||||
| 55521-14050 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1404001 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX) BLACK,BLACK,TRIM2# |
1 | ||
| 58905-1404004 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 58905-1404016 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-14010 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-22010 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1405004 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1405016 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1405001 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX) BLACK,BLACK,TRIM2# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1405004 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1405016 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1405001 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX) BLACK,BLACK,TRIM2# |
1 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58902-14030 |
AT140,CT14#,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-24010 |
AT140,CT14#,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| Common parts | ||||
| 90176-04015 | ||||
| 90189-05003 | ||||
| 90541-04079 | ||||
| 93560-15014 | ||||
| 93560-55014 | ||||
| 93566-54512 | ||||
| 93567-55016 | ||||

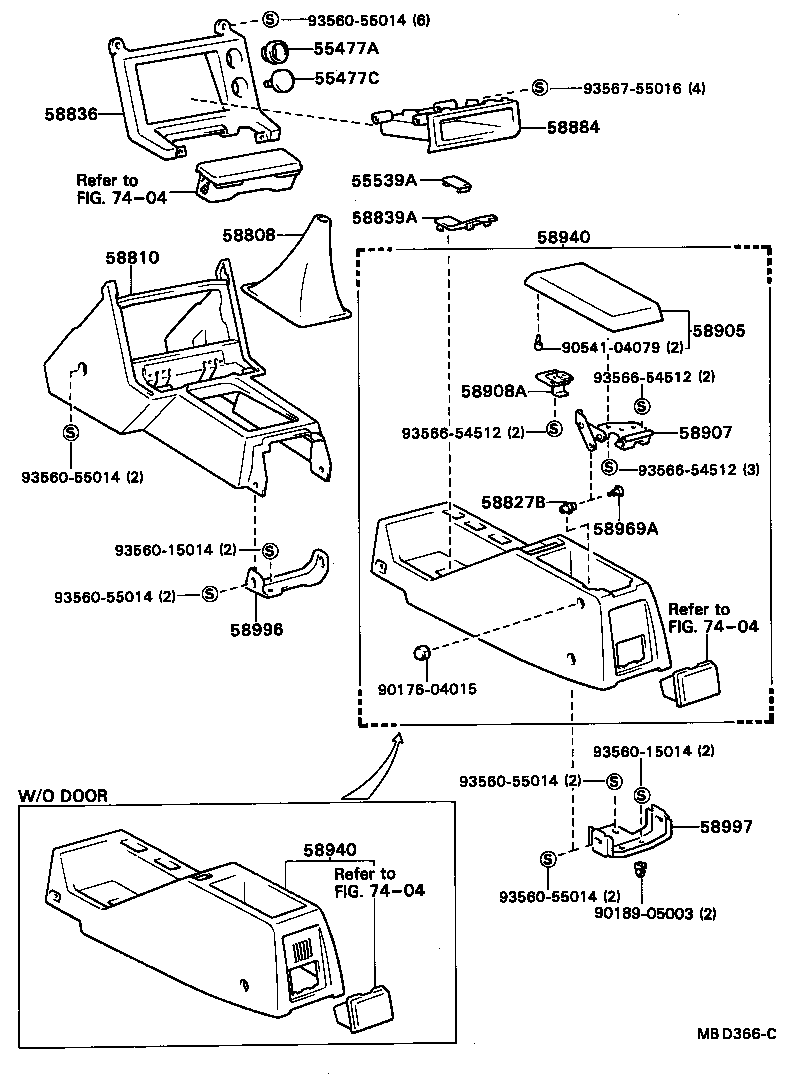

| Linked diagrams | ||||
| 7404 | ||||
