ST140-TSPGS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

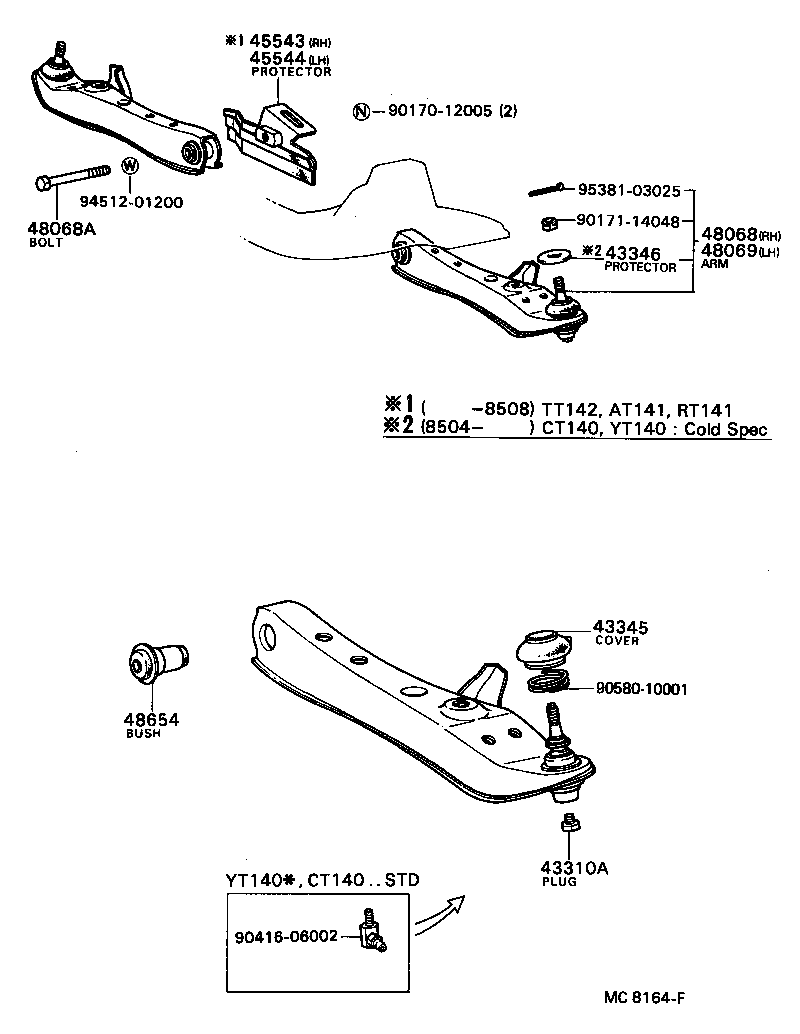

Click highlighted areas on diagram

diagram 43310A 43345 43346 45543 45544 48068 48068A 48069 48654 9017012005 9017114048 9041606002 9058010001 9451201200 9538103025
Part # Description Qty Price
43310A - PLUG (FOR BALL JOINT)
90345-06014

CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14#

 2
43345 - COVER, LOWER BALL JOINT DUST
43345-14010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-19105

CT140..EXS,GX;AT14#,RT141,ST140,TT142

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90101-12039

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

L=85

 2
90101-12291

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

L=81

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-19085

CT140..EXS,GX;AT14#,RT141,ST140,TT142

 1
48654 - BUSH, LOWER ARM
48654-12010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
Common parts
90170-12005
90171-14048
90416-06002
90580-10001
94512-01200
95381-03025
