ST140-TSPGS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)1SU

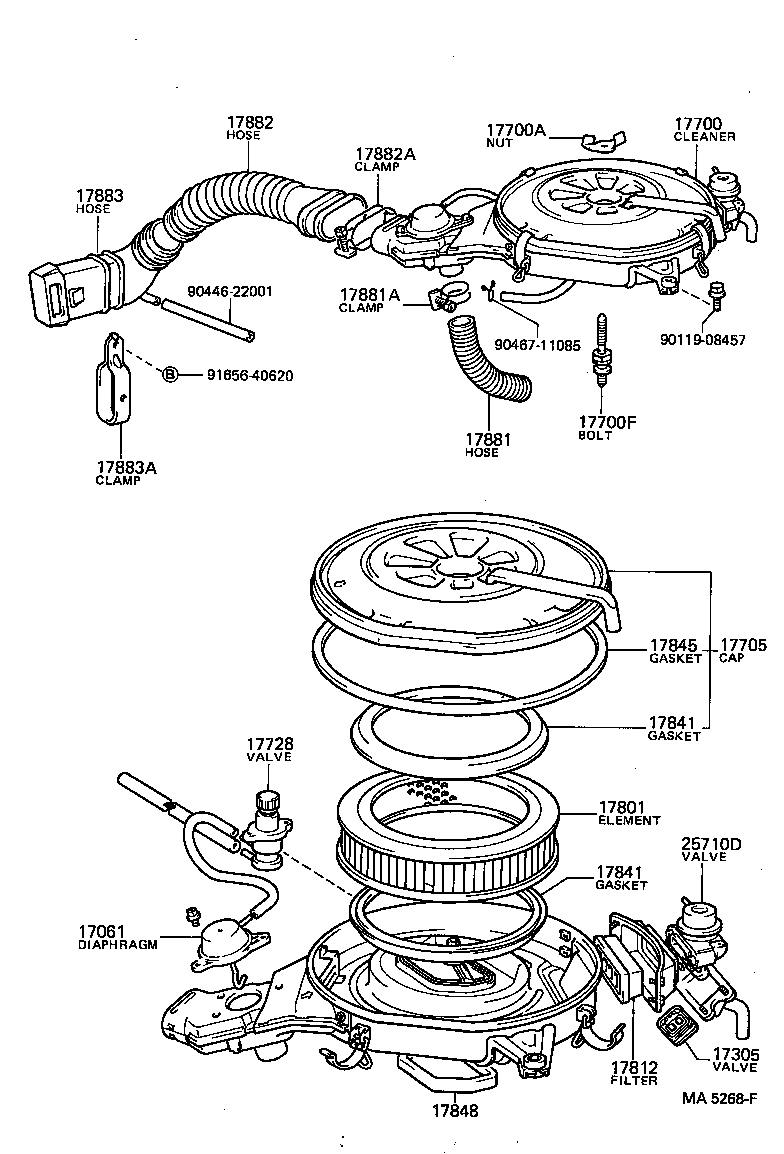

Click highlighted areas on diagram

diagram 17061 17305 17700 17700A 17700F 17705 17728 17801 17812 17841 17841 17845 17848 17881 17881A 17882 17882A 17883 17883A 25710D 9011908457 9044622001 9046711085 9165640620
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-63010

1SU..ST140

 1
17305 - VALVE SUB-ASSY, REED
17305-31010

1SU..ST140

 1
17700 - CLEANER ASSY, AIR
17700-63010

1SU..ST140

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06009

1SU..ST140

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06021

1SU..ST140

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-63010

1SU..ST140

 1
17728 - VALVE, THERMOSTATIC
17728-63010

1SU..ST140

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-25010

1SU..ST140

 1
17812 - FILTER, AIR CLEANER, NO.2
17812-63010

1SU..ST140

 1
17841 - GASKET, FILTER ELEMENT
17841-63010

1SU..ST140

 2
17841 - GASKET, FILTER ELEMENT
17841-63010

1SU..ST140

 2
17845 - GASKET, AIR CLEANER CAP
17845-63010

1SU..ST140

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-37011

1SU..ST140

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-63010

1SU..ST140

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

1SU..ST140

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-14030

1SU..ST140

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01024

1SU..ST140

 1
17883 - HOSE, AIR CLEANER, NO.3
17881-14030

1SU..ST140

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-01018

1SU..ST140

 1
25710D - VALVE ASSY, AIR SWITCHING
25710-63010

1SU..ST140

 1
Common parts
90119-08457
90446-22001
90467-11085
91656-40620
