ST140-TSPES (1982)
Toyota Corona
Production
Jan 1982
-
Aug 1985
Engine
1SU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

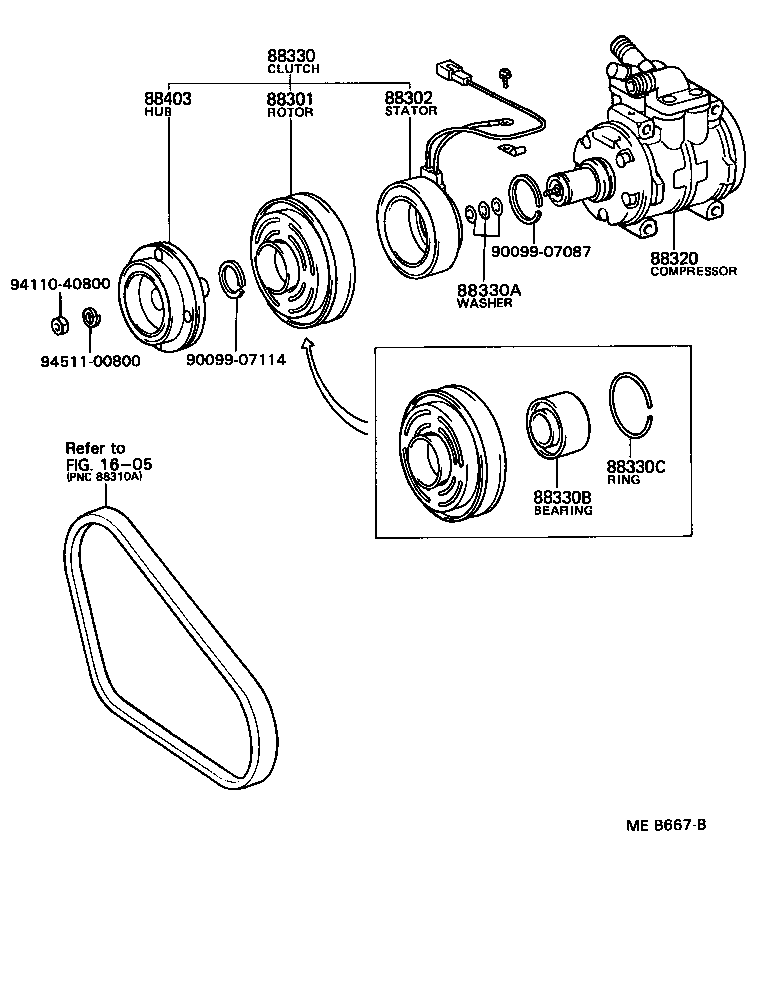

ILLUST NO. 1 OF 2(8201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14050 |
ST140 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
CT14#,KT147,RT141,ST140,YT140 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14420 |
ST140 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14130 |
ST140 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
AT141,CT14#,KT147,RT141,ST140,YT140 |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
AT140,RT141,ST140,TT14# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
AT141,CT14#,KT147,RT141,ST140,YT140 |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 1605 | ||||

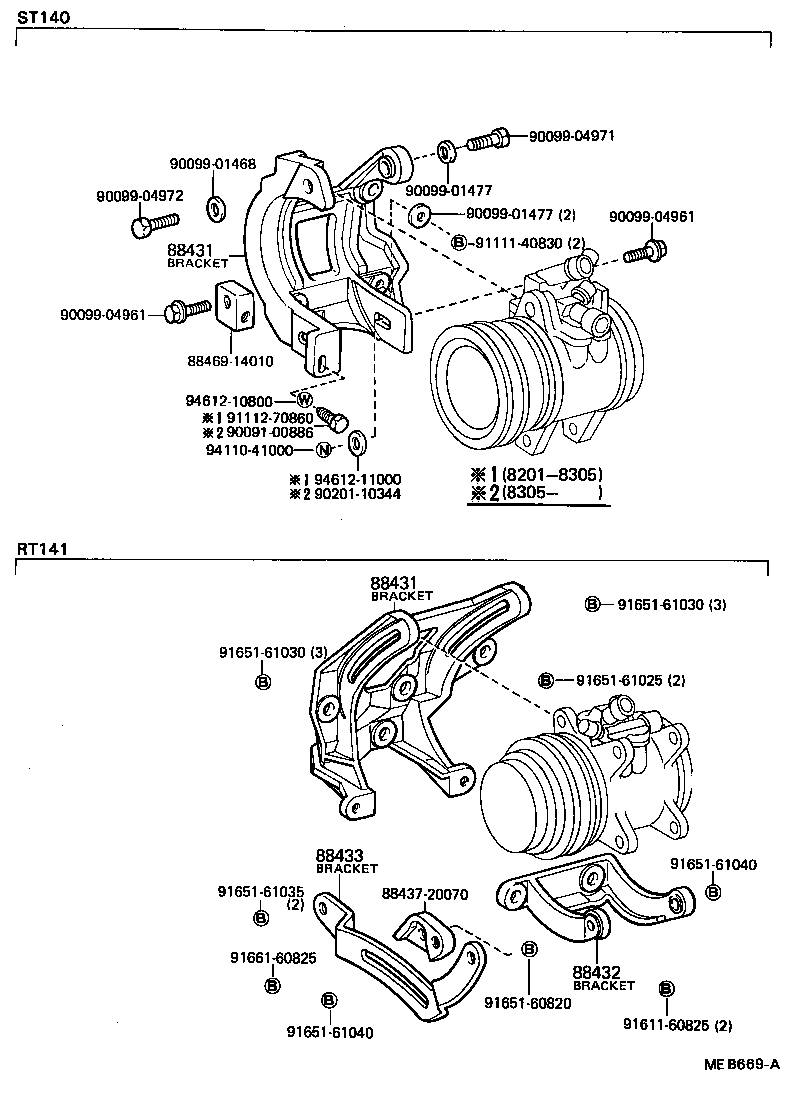

ILLUST NO. 2 OF 2(8201-8712)RT141,ST140
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-14140 |
ST140 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-14140 |
ST140 |
1 | ||
| Common parts | ||||
| 88437-20070 | ||||
| 88469-14010 | ||||
| 90091-00886 | ||||
| 90099-01468 | ||||
| 90099-01477 | ||||
| 90099-04961 | ||||
| 90099-04971 | ||||
| 90099-04972 | ||||
| 90201-10344 | ||||
| 91111-40830 | ||||
| 91112-70860 | ||||
| 91611-60825 | ||||
| 91651-60820 | ||||
| 91651-61025 | ||||
| 91651-61030 | ||||
| 91651-61035 | ||||
| 91651-61040 | ||||
| 91661-60825 | ||||
| 94110-41000 | ||||
| 94612-10800 | ||||
| 94612-11000 | ||||
