ST140-TSPES (1982)

Toyota Corona

Production Jan 1982 - Aug 1985
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)ST140

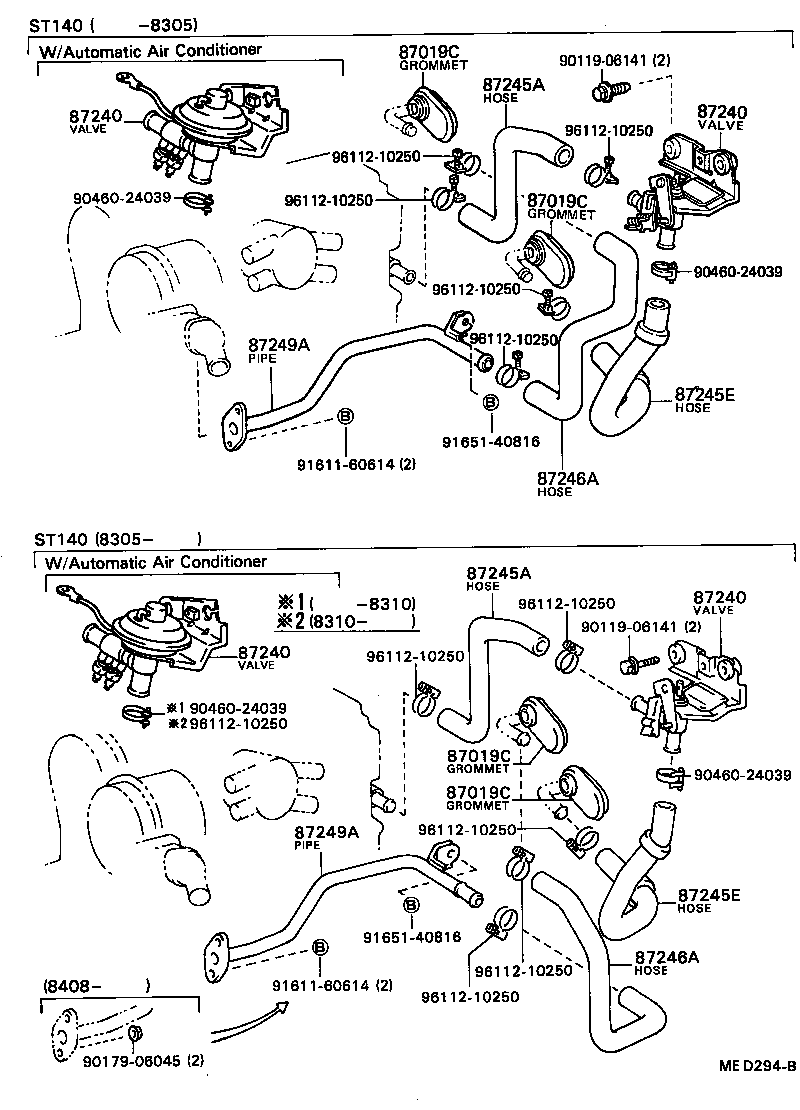

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87240 87240 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87249A 87249A 9011906141 9011906141 9017906045 9046024039 9046024039 9046024039 9046024039 9161160614 9161160614 9165140816 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 2
87240 - VALVE ASSY, HEATER WATER
87240-14110

AT14#,CT14#,KT147,RT141,ST140,TT14#

 1
88670-14060

AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX

W/*AAC

 1
87240 - VALVE ASSY, HEATER WATER
87240-14110

AT14#,CT14#,KT147,RT141,ST140,TT14#

 1
88670-14060

AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX

W/*AAC

 1
87240 - VALVE ASSY, HEATER WATER
87240-14110

AT14#,CT14#,KT147,RT141,ST140,TT14#

 1
88670-14060

AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX

W/*AAC

 1
87240 - VALVE ASSY, HEATER WATER
87240-14110

AT14#,CT14#,KT147,RT141,ST140,TT14#

 1
88670-14060

AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX

W/*AAC

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14800

ST140

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14800

ST140

 1
87245E - HOSE, HEATER WATER, INLET E
87245-14740

RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
87245E - HOSE, HEATER WATER, INLET E
87245-14740

RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,STD,SX

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-14790

ST140

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-14790

ST140

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-14110

ST140

 1
87208-20160

ST140

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-14110

ST140

 1
87208-20160

ST140

 1
Common parts
90119-06141
90179-06045
90460-24039
91611-60614
91651-40816
96112-10250
