ST140-TSPES (1982)
Toyota Corona
ILLUST NO. 1 OF 3(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12060 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
5 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-14130 |
AT141,RT141,ST140,TT142..HT MODE CONTROL |
1 | ||
| 55906-14160 |
AT141,RT141,ST140,TT142..HT R-L CONTROL |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-14130 |
AT141,RT141,ST140,TT142..HT MODE CONTROL |
1 | ||
| 55906-14160 |
AT141,RT141,ST140,TT142..HT R-L CONTROL |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-14220 |
AT141,RT141,ST140,TT142..HT WIRE:L=695,TUBE:L=645 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-14100 |
AT141,RT141,ST140,TT142..HT WIRE:L=660,TUBE:L=605 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-14050 |
AT141,RT141,ST140,TT142..HT WIRE:L=650,TUBE:L=595 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-14290 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 55915 - LEVER, COOLER CONTROL | ||||
| 55917-14140 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX) W/*AAC |
1 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-14020 |
AT141,RT141,ST140,TT142..HT |
5 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-14070 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX W/*AAC |
1 | ||
| 88032-14070 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX) W/*AAC |
1 | ||
| Common parts | ||||
| 55928-14010 | ||||
| 55939-16010 | ||||
| 90480-01108 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-14080 |
AT14#,CT14#,KT147,ST140,TT14#,YT140 W/O *AAC |
1 | ||
| 87138-24010 |
AT140,CT14#,RT141,ST140,TT14#,YT140 W/O *AAC |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-24032 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 87201-24031 |
AT140,CT14#,RT141,ST140,TT14# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-14120 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-14120 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87201-24020 |
AT14#,CT140,147,RT141,ST140,TT14# |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 55086-14090 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 55086-14090 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-24010 |
AT14#,CT140,147,KT147,RT141,ST140,TT14#,YT140..(3FC,4F,4FC,5F)..(DLX,EXA,EXS,GT,GTT,GX,GXA,SX)..05S |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-24010 |
AT14#,CT140,147,KT147,RT141,ST140,TT14#,YT140..(3FC,4F,4FC,5F)..(DLX,EXA,EXS,GT,GTT,GX,GXA,SX)..05S |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55085-14080 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 55085-14070 |
AT141,RT141,ST140,TT142..HT W/COOLER |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55085-14080 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 55085-14070 |
AT141,RT141,ST140,TT142..HT W/COOLER |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55087-14090 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55087-14090 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| Common parts | ||||
| 55876-14010 | ||||
| 90159-50184 | ||||
| 90159-60125 | ||||
| 90167-50002 | ||||
| 90183-05094 | ||||
| 90467-04005 | ||||
| 93540-55010 | ||||
| 93560-15012 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8714 | ||||

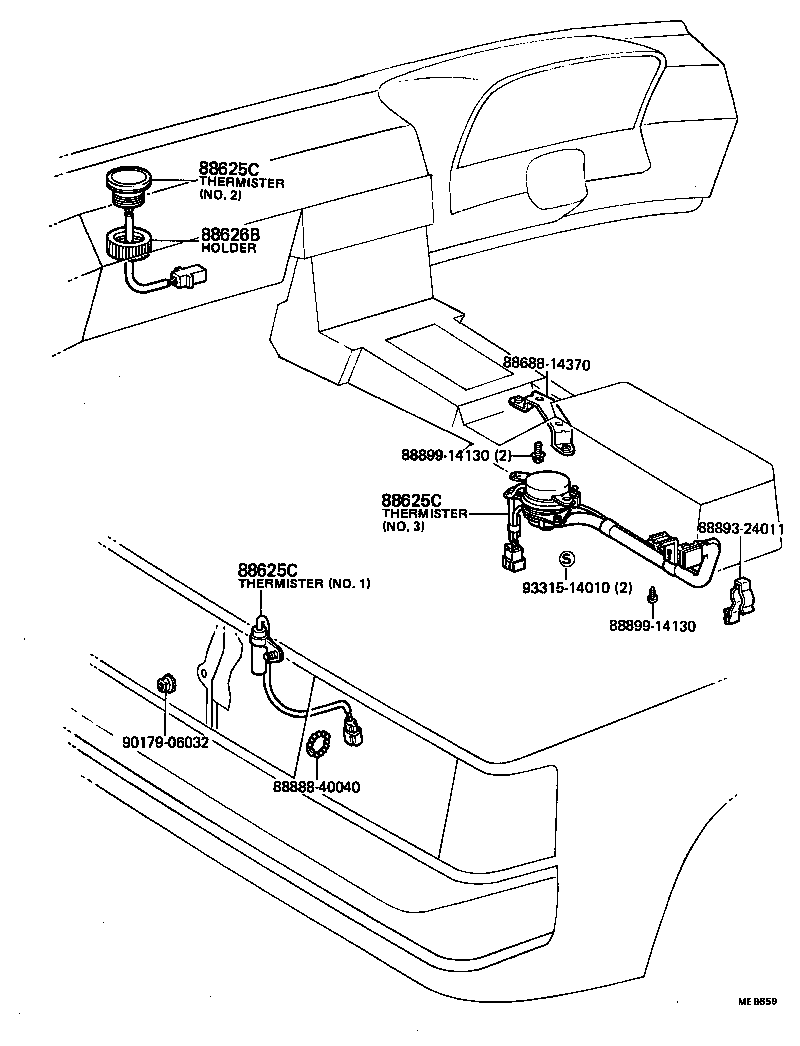

ILLUST NO. 3 OF 3(8201-8508)EXA,EXS,GT,GTT,GXA,SX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88790-14070 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC,NO.3 |
1 | ||
| 88625-14050 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC,NO.1 |
1 | ||
| 88625-24020 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC,NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88790-14070 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC,NO.3 |
1 | ||
| 88625-14050 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC,NO.1 |
1 | ||
| 88625-24020 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC,NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88790-14070 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC,NO.3 |
1 | ||
| 88625-14050 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC,NO.1 |
1 | ||
| 88625-24020 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC,NO.2 |
1 | ||
| 88626B - HOLDER, THERMISTOR | ||||
| 88626-24010 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX W/*AAC |
1 | ||
| Common parts | ||||
| 88688-14370 | ||||
| 88888-40040 | ||||
| 88893-24011 | ||||
| 88899-14130 | ||||
| 90179-06032 | ||||
| 93315-14010 | ||||
