ST140-TSPES (1982)

Toyota Corona

Production Jan 1982 - Aug 1985
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)4FC

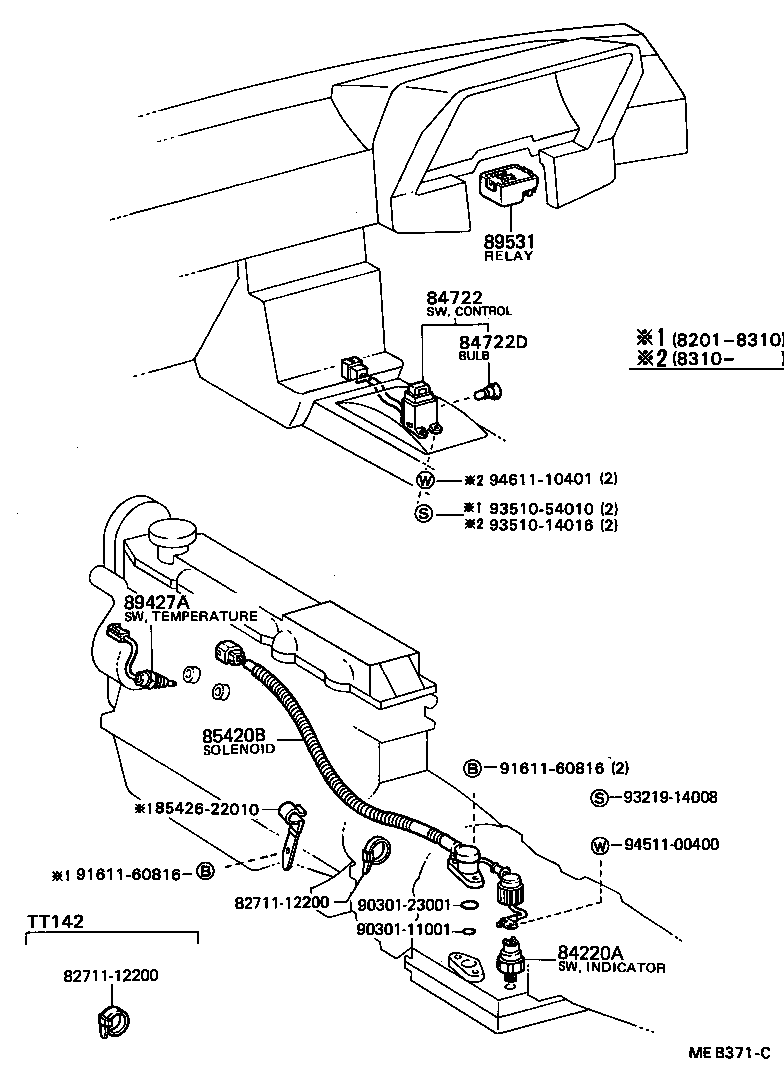

Click highlighted areas on diagram

diagram 8271112200 8271112200 84220A 84722 84722D 85420B 8542622010 89427A 89531 9030111001 9030123001 9161160816 9161160816 9321914008 9351014016 9351054010 9451100400 9461110401
Part # Description Qty Price
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-30050

CT140,ST140,TT142..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-14060

CT140,ST140,TT142..4FC

 1
84722D - BULB, TRANSMISSION CONTROL SWITCH
90981-11024

CT140,ST140,TT142..4FC

12V 1.4W,12V 1.4W

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-22040

CT140,ST140..4FC

 1
89427A - SWITCH, TEMPERATURE
89427-14050

ST140..4FC

 1
89531 - RELAY, TRANSMISSION CONTROL
89531-22030

ST140,TT142..4FC

 1
Common parts
82711-12200
85426-22010
90301-11001
90301-23001
91611-60816
93219-14008
93510-14016
93510-54010
94511-00400
94611-10401
