ST140-TSPES (1982)
Toyota Corona
Production
Jan 1982
-
Aug 1985
Engine
1SU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8201-8508)

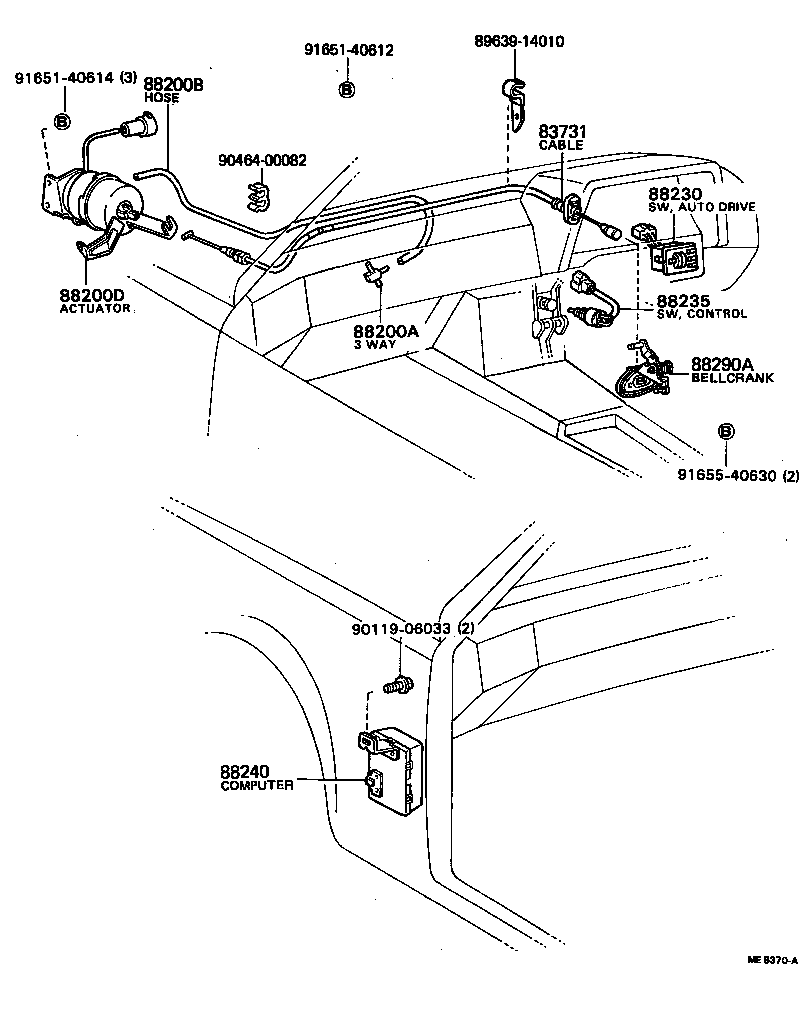

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83731 - CABLE, CRUISE CONTROL | ||||
| 83731-14020 |
ST140..EXA,EXS |
1 | ||
| 88200A - UNION OR WAY, CRUISE CONTROL VACUUM | ||||
| 90413-04005 |
ST140..EXA,EXS COLD SPEC |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 90445-08214 |
ST140..EXA,EXS *H,L=1200 |
1 | ||
| 90445-08207 |
ST140..EXS *H,L=1300 |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88200-14040 |
ST140..EXA,EXS |
1 | ||
| 88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL | ||||
| 88230-20030 |
ST140..EXS |
1 | ||
| 88230-20020 |
RT141,ST140..EXA,EXS,GT |
1 | ||
| 88240 - COMPUTER ASSY, CRUISE CONTROL | ||||
| 88240-20040 |
ST140..EXS |
1 | ||
| 88240-20020 |
RT141,ST140..EXA,EXS,GT |
1 | ||
| 88290A - BELLCRANK ASSY, CRUISE CONTROL | ||||
| 88290-24010 |
ST140..EXA,EXS |
1 | ||
| Common parts | ||||
| 89639-14010 | ||||
| 90119-06033 | ||||
| 90464-00082 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91655-40630 | ||||
