ST140-TSPES (1982)
Toyota Corona
ILLUST NO. 1 OF 5(8201-8712)AT14#,KT147,RT141,ST140,TT14#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 7.5A,7.5A |
6 | ||
| 90982-09003 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 15A,15A |
11 | ||
| 90982-09004 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 20A,黄,20A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-22091 |
AT140,CT14#,RT141,ST140,TT14#,YT140 SUMITOMO |
1 | ||
| 82660-22100 |
AT140,CT14#,RT141,ST140,TT14#,YT140 YAZAKI |
1 | ||
| 82660-22091 |
CT140..EXS,GX;AT140,CT147,ST140,TT14# SUMITOMO |
1 | ||
| 82660-22100 |
CT140..EXS,GX;AT140,CT147,ST140,TT14# YAZAKI |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22040 |
AT140,CT14#,RT141,ST140,TT14#,YT140 UPR,YAZAKI |
1 | ||
| 82661-22040 |
CT140..EXS,GX;AT140,CT147,ST140,TT14# UPR,YAZAKI |
1 | ||
| 82661-22011 |
AT140,CT14#,RT141,ST140,TT14#,YT140 UPR,SUMITOMO |
1 | ||
| 82661-22030 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LWR,SUMITOMO |
1 | ||
| 82661-22080 |
CT140..EXS,GX;AT140,CT147,ST140,TT14# UPR,YAZAKI |
1 | ||
| 82661-22070 |
AT140,CT14#,ST140,TT14#,YT140 UPR,SUMITOMO |
1 | ||
| 82661-22060 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LWR,YAZAKI |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22040 |
AT140,CT14#,RT141,ST140,TT14#,YT140 UPR,YAZAKI |
1 | ||
| 82661-22040 |
CT140..EXS,GX;AT140,CT147,ST140,TT14# UPR,YAZAKI |
1 | ||
| 82661-22011 |
AT140,CT14#,RT141,ST140,TT14#,YT140 UPR,SUMITOMO |
1 | ||
| 82661-22030 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LWR,SUMITOMO |
1 | ||
| 82661-22080 |
CT140..EXS,GX;AT140,CT147,ST140,TT14# UPR,YAZAKI |
1 | ||
| 82661-22070 |
AT140,CT14#,ST140,TT14#,YT140 UPR,SUMITOMO |
1 | ||
| 82661-22060 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 LWR,YAZAKI |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14070 |
ST140 MARK=330B |
1 | ||
| 83391-14061 |
AT140,ST140 MARK=85M |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14070 |
ST140 MARK=330B |
1 | ||
| 83391-14061 |
AT140,ST140 MARK=85M |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14070 |
ST140 MARK=330B |
1 | ||
| 83391-14061 |
AT140,ST140 MARK=85M |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-14060 |
ST140 |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-14060 |
ST140 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
AT140,CT14#,ST140,TT14#,YT140 NIPPONDENSO |
1 | ||
| 83420-20020 |
AT140,CT14#,ST140,TT14#,YT140 YAZAKI |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-20020 |
ST140..EXS |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
KT147,ST140 |
1 | ||
| 83530-12040 |
ST140 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-14080 |
CT140,ST140,TT14#..ATM |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02002 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX MARUKO,W/*PW,*SH OR SUN ROOF |
1 | ||
| 90987-02004 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 NIPPONDENSO,IGNITION RELAY |
1 | ||
| 90987-02004 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX NIPPONDENSO,W/*PW,*SH OR SUN ROOF |
1 | ||
| 90987-02002 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 MARUKO,IGNITION RELAY |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AT140,CT14#,RT141,ST140,TT14#,YT140 TAIL & HEAD |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AT140,CT14#,RT141,ST140,TT14#,YT140 TAIL & HEAD |
2 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-14070 |
AT140,RT141,ST140,TT142 |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12051 |
CT14#,ST140 HEATER IDLE UP |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19065 |
AT140,ST140 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
AT14#,RT141,ST140,TT142,YT140 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-24120 | ||||
| 90119-06067 | ||||
| 90119-06157 | ||||
| 90179-08012 | ||||
| 90179-08059 | ||||
| 90201-08084 | ||||
| 90430-18007 | ||||
| 90461-06064 | ||||
| 90461-08312 | ||||
| 90461-12218 | ||||
| 90462-08008 | ||||
| 90464-00073 | ||||
| 90464-00257 | ||||
| 90989-01015 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91651-40610 | ||||
| 91655-40616 | ||||
| 93385-16025 | ||||
ILLUST NO. 3 OF 5(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 7.5A,7.5A |
6 | ||
| 90982-09003 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 15A,15A |
11 | ||
| 90982-09004 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 20A,黄,20A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 30A |
3 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-22010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 NO.2(ASSISTANT SIDE) |
1 | ||
| 82660-24010 |
AT140,CT14#,RT141,ST140,TT14#,YT140 NO.1(DRIVER SIDE) |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-22010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 NO.2(ASSISTANT SIDE) |
1 | ||
| 82660-24010 |
AT140,CT14#,RT141,ST140,TT14#,YT140 NO.1(DRIVER SIDE) |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 85912-20010 |
AT140,CT140,RT141,ST140,TT142 W/DEFOGGER TIMER |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 85912-20010 |
AT140,CT140,RT141,ST140,TT142 W/DEFOGGER TIMER |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02002 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX MARUKO,W/*PW,*SH OR SUN ROOF |
1 | ||
| 90987-02004 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 NIPPONDENSO,IGNITION RELAY |
1 | ||
| 90987-02004 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX NIPPONDENSO,W/*PW,*SH OR SUN ROOF |
1 | ||
| 90987-02002 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 MARUKO,IGNITION RELAY |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AT140,CT14#,RT141,ST140,TT14#,YT140 TAIL & HEAD |
2 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02002 |
AT14#,RT141,ST140,TT142 MARUKO |
1 | ||
| 90987-02004 |
AT14#,RT141,ST140,TT142 NIPPONDENSO |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-14010 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT |
1 | ||
| 85930-20040 |
AT141,ST140,TT142..EXS,GT,GTT |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-14010 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT |
1 | ||
| 85930-20040 |
AT141,ST140,TT142..EXS,GT,GTT |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-24010 |
ST140..EXS |
1 | ||
| 85940-24010 |
CT140,RT141,ST140..EXA,EXS,GT |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-24010 |
ST140..EXS |
1 | ||
| 85940-24010 |
CT140,RT141,ST140..EXA,EXS,GT |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22021 |
CT140,RT141,ST140..EXA,EXS,GT W/ILLUMINATED ENTRY SYSTEM |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-22012 |
CT140,ST140..EXA,EXS |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-14030 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-14480 |
ST140..HT..4FC |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-14480 |
ST140..HT..4FC |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-14480 |
ST140..HT..4FC |
1 | ||
| Common parts | ||||
| 90119-06029 | ||||
| 90119-06061 | ||||
| 90170-06003 | ||||
| 90189-05010 | ||||
| 90189-06018 | ||||
| 91651-40612 | ||||
| 93385-16016 | ||||
| 93540-15014 | ||||
| 93540-55014 | ||||
| 93560-55014 | ||||

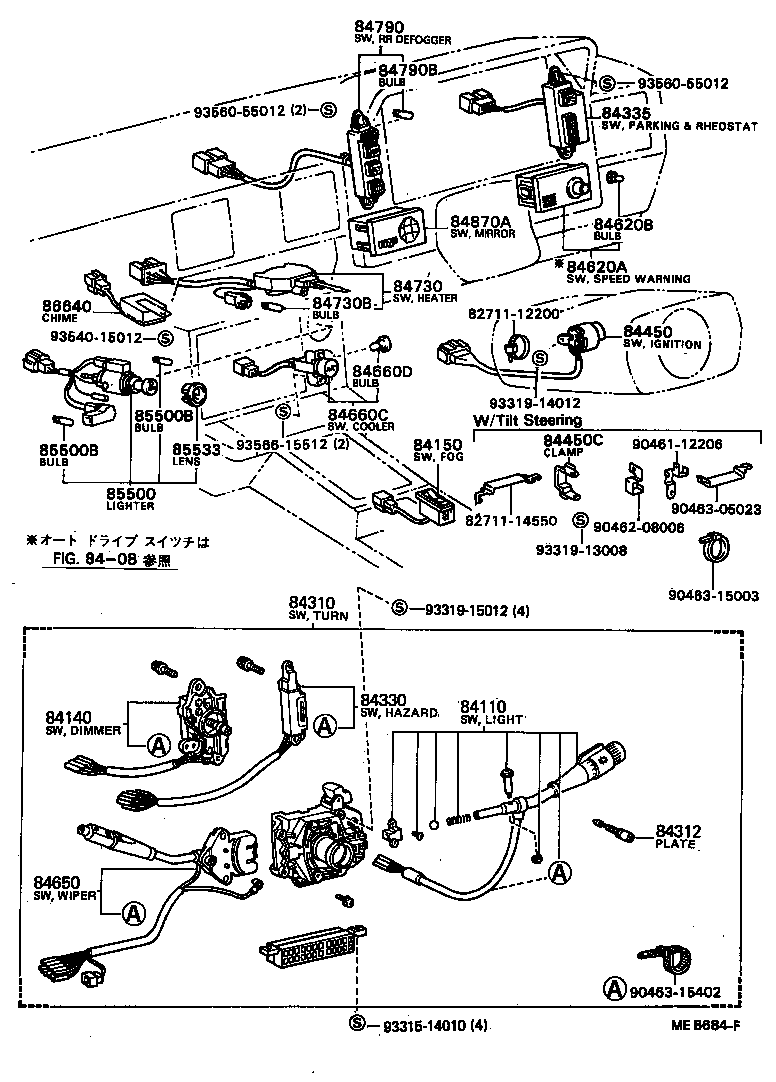

ILLUST NO. 4 OF 5(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12030 |
AT141,RT141,ST140,TT142..HT |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12030 |
AT141,RT141,ST140,TT142..HT |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-14020 |
AT141,RT141,ST140,TT142..HT |
2 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-24010 |
AT141,RT141,ST140,TT142 |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-24010 |
AT141,RT141,ST140,TT142 |
1 | ||
| 84242A - BRACKET, GLOVE BOX LAMP SWITCH | ||||
| 84233-14010 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-24010 |
ST140..EXS W/AUTO DRIVE |
1 | ||
| 84340-22072 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-22070 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) FR(LH) |
1 | ||
| 84810-1407016 |
RT141,ST140..HT..(EXA,EXS,GT) RR(RH & LH),SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 84810-2005004 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RR(RH & LH),BLUE,BLUE,TRIM8# |
2 | ||
| 84810-2005001 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RR(RH & LH),BLACK,BLACK,TRIM2# |
2 | ||
| 84810-1407001 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) RR(RH & LH),BLACK,BLACK,TRIM2# |
2 | ||
| 84810-1407004 |
RT141,ST140..HT..(EXA,EXS,GT) RR(RH & LH),BLUE,BLUE,TRIM8# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-22070 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) FR(LH) |
1 | ||
| 84810-1407016 |
RT141,ST140..HT..(EXA,EXS,GT) RR(RH & LH),SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 84810-2005004 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RR(RH & LH),BLUE,BLUE,TRIM8# |
2 | ||
| 84810-2005001 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RR(RH & LH),BLACK,BLACK,TRIM2# |
2 | ||
| 84810-1407001 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) RR(RH & LH),BLACK,BLACK,TRIM2# |
2 | ||
| 84810-1407004 |
RT141,ST140..HT..(EXA,EXS,GT) RR(RH & LH),BLUE,BLUE,TRIM8# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-22070 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) FR(LH) |
1 | ||
| 84810-1407016 |
RT141,ST140..HT..(EXA,EXS,GT) RR(RH & LH),SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 84810-2005004 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RR(RH & LH),BLUE,BLUE,TRIM8# |
2 | ||
| 84810-2005001 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RR(RH & LH),BLACK,BLACK,TRIM2# |
2 | ||
| 84810-1407001 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) RR(RH & LH),BLACK,BLACK,TRIM2# |
2 | ||
| 84810-1407004 |
RT141,ST140..HT..(EXA,EXS,GT) RR(RH & LH),BLUE,BLUE,TRIM8# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-20040 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) |
1 | ||
| 84820-20041 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 84820-20042 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-20040 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) |
1 | ||
| 84820-20041 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 84820-20042 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-29215 |
AT140,ST140 |
1 | ||
| Common parts | ||||
| 84739-30020 | ||||
| 90119-06390 | ||||
| 90164-40005 | ||||
| 90179-06070 | ||||
| 90179-10032 | ||||
| 90201-10572 | ||||
| 90430-08252 | ||||
| 90461-08160 | ||||
| 90463-08205 | ||||
| 90463-12570 | ||||
| 91651-40612 | ||||
| 91651-60616 | ||||
| 93315-14014 | ||||
| 93540-54012 | ||||
| 93567-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8511 | ||||
| 8513 | ||||
ILLUST NO. 2 OF 5(8201-8508)HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19345 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 TOKAIRIKA |
1 | ||
| 84112-19285 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19125 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 TOKAIRIKA |
1 | ||
| 84140-19145 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 MATSUSHITA |
1 | ||
| 84150 - SWITCH ASSY, FOG LAMP | ||||
| 84160-14050 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-14200 |
CT140,RT141,ST140..EXA,EXS,GT |
1 | ||
| 84310-2B080 |
ST140..EXS W/AUTO DRIVE |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 MATSUSHITA |
1 | ||
| 84312-20011 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 TOKAIRIKA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19095 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 TOKAIRIKA |
1 | ||
| 84332-19115 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 MATSUSHITA |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-20090 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/RHEOSTAT |
1 | ||
| 84330-20070 |
AT141,ST140,TT142..HT W/O RHEOSTAT |
1 | ||
| 84330-20080 |
ST140..HT..EXS W/RHEOSTAT |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-22080 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX W/*TIS |
1 | ||
| 84450-22080 |
AT141,ST140,TT142..EXS,GT,GTT W/*TIS |
1 | ||
| 84450-22110 |
AT141,ST140,TT142..EXS,GT,GTT W/*TIS & *PW |
1 | ||
| 84450C - CLAMP,(FOR IGNITION SWITCH WIRE) | ||||
| 82711-14530 |
CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX W/TILT STEERING OR *PW |
1 | ||
| 82711-14530 |
AT141,ST140,TT142..EXS,GT,GTT W/TILT STEERING OR *PW |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-14190 |
CT140,RT141,ST140..EXA,EXS,GT MATSUSHITA |
1 | ||
| 84652-29785 |
ST140..EXS W/AUTO DRIVE |
1 | ||
| 84652-19345 |
CT140,RT141,ST140..EXA,EXS,GT TOKAIRIKA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-14060 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-14020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 14V 1.4W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-14160 |
RT141,ST140,TT142..HT |
1 | ||
| 84732-14170 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX) W/AUTOMATIC AIR CONDITINER |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 14V 1.4W,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20070 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11014 |
AT141,RT141,ST140,TT142..HT 14V 1.4W,12V 1.4W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-14050 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX) |
1 | ||
| 84870-14070 |
ST140,TT142..HT..(EXA,EXS,GTT,SX) |
1 | ||
| 84870-14070 |
AT141,ST140,TT142..HT |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-14101 |
AT141,ST140,TT142..HT |
1 | ||
| 85500-14100 |
RT141,ST140,TT142..HT |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AT14#,CT140,147,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GTT,GX,GXA,SX 14V 1.4W,12V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AT14#,CT140,147,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GTT,GX,GXA,SX 14V 1.4W,12V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
AT140,CT14#,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-14050 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14550 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-05023 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93540-15012 | ||||
| 93560-55012 | ||||
| 93566-15512 | ||||
ILLUST NO. 5 OF 5(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19545 |
ST140..EXS W/DIGITAL SPEEDOMETER |
1 | ||
| 83320-19535 |
AT140,ST140..DLX,EXS,GX,GXA |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
AT140,CT140,141,ST140 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
AT140,CT140,141,ST140 |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84230-22040 |
ST140,TT142..HT..(EXS,GTT) |
1 | ||
| 84230-22040 |
ST140..HT..(EXA,EXS) |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84230-22040 |
ST140,TT142..HT..(EXS,GTT) |
1 | ||
| 84230-22040 |
ST140..HT..(EXA,EXS) |
1 | ||
| 84236A - BRACKET, COURTESY SWITCH(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84233-91D01 |
ST140..HT..(EXA,EXS) |
1 | ||
| 84233-91D01 |
ST140,TT142..HT..(EXS,GTT) |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-20030 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-20030 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| Common parts | ||||
| 90170-10179 | ||||
| 90179-06070 | ||||
| 90179-06184 | ||||
| 90560-10008 | ||||
| 91651-40612 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 8511 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
