ST140-TSPES (1982)
Toyota Corona
ILLUST NO. 1 OF 2(8201-8508)AT141,ST140,TT142..HT..EXS,GT,GTT,GX,SX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
14 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
14 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83133-2B570 |
ST140,TT142..HT..(EXS,GTT,SX) |
1 | ||
| 83133-2B571 |
AT141,ST140,TT142..HT..(EXS,GT,GTT,SX) |
1 | ||
| 83133-2B590 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/DIGITAL SPEEDOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-12020 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) BULB:12V 3.4W,LONG TYPE(L=40) |
2 | ||
| 83101-14030 |
AT141,RT141,ST140,TT142..HT BULB:12V 3.4W(OD=18) |
8 | ||
| 83101-14040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 BULB:12V 1.4W(D=11.3) |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-12020 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) BULB:12V 3.4W,LONG TYPE(L=40) |
2 | ||
| 83101-14030 |
AT141,RT141,ST140,TT142..HT BULB:12V 3.4W(OD=18) |
8 | ||
| 83101-14040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 BULB:12V 1.4W(D=11.3) |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-12020 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) BULB:12V 3.4W,LONG TYPE(L=40) |
2 | ||
| 83101-14030 |
AT141,RT141,ST140,TT142..HT BULB:12V 3.4W(OD=18) |
8 | ||
| 83101-14040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 BULB:12V 1.4W(D=11.3) |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-2B570 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83247-2B571 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83247-20810 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/DIGITAL SPEEDOMETER |
1 | ||
| 83247-2B571 |
AT141,ST140..HT..(EXS,GT) |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) 12V 3.4W ｷｬｯﾌﾟ付き,BULB:12V 3.4W,W/*DS |
4 | ||
| 83109-20020 |
AT141,ST140,TT142..HT 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,BULB:12V 3.4W,ANALOGUE METER |
1 | ||
| 83109-24010 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,BULB:12V 1.4W,W/*DS |
1 | ||
| 83109-20010 |
AT141,ST140,TT142..HT 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,BULB:12V 3.4W,ANALOGUE METER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-14330 |
ST140,TT142..HT..(EXS,GX,SX) |
1 | ||
| 83110-14790 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/DIGITAL SPEEDOMETER |
1 | ||
| 83110-2B270 |
AT141,ST140..HT |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-14330 |
ST140,TT142..HT..(EXS,GX,SX) |
1 | ||
| 83110-14790 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/DIGITAL SPEEDOMETER |
1 | ||
| 83110-2B270 |
AT141,ST140..HT |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14510 |
AT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) |
1 | ||
| 83128-10260 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/DIGITAL SPEEDOMETER |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-2B570 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83131-1D700 |
ST140..EXS W/DIGITAL SPEEDOMETER |
1 | ||
| 83131-2B650 |
ST140..EXS |
1 | ||
| 83131-2B571 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2B570 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83132-2B570 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83132-2B571 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83132-2B330 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/DIGITAL SPEEDOMETER |
1 | ||
| 83132-2B270 |
ST140..EXS |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-14510 |
ST140,TT142..HT..(EXS,GX,SX) |
1 | ||
| 83242-2B570 |
ST140,TT142..HT |
1 | ||
| 83270-14250 |
ST140..EXS W/DIGITAL SPEEDOMETER |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-14510 |
ST140,TT142..HT..(EXS,GX,SX) |
1 | ||
| 83310-14120 |
AT141,ST140,TT142..EXS,GT,GTT W/WATER TEMPARATURE GAGE |
1 | ||
| 83243-20370 |
AT141,ST140,TT142..HT |
1 | ||
| 83310-14121 |
AT141,ST140,TT142..EXS,GT,GTT W/WATER TEMPARATURE GAGE |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-14510 |
ST140,TT142..HT..(EXS,GX,SX) |
1 | ||
| 83244-14530 |
ST140,TT142..HT..(EXS,GX,SX) |
1 | ||
| 83244-20190 |
AT141,ST140,TT142..HT |
1 | ||
| 83244-1B010 |
ST140,TT142..HT..(EXS,GX,SX) |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83246-14510 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83246-20050 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,SX) |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,SX) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14300 |
AT141,ST140,TT142..HT..(EXS,GT,GTT,SX) DIGITAL |
1 | ||
| 83910-14310 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) DIGITAL,W/DIGITAL SPEEDOMETER |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14300 |
AT141,ST140,TT142..HT..(EXS,GT,GTT,SX) DIGITAL |
1 | ||
| 83910-14310 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) DIGITAL,W/DIGITAL SPEEDOMETER |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX DIGITAL |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 93510-13008 | ||||
| 93567-55016 | ||||

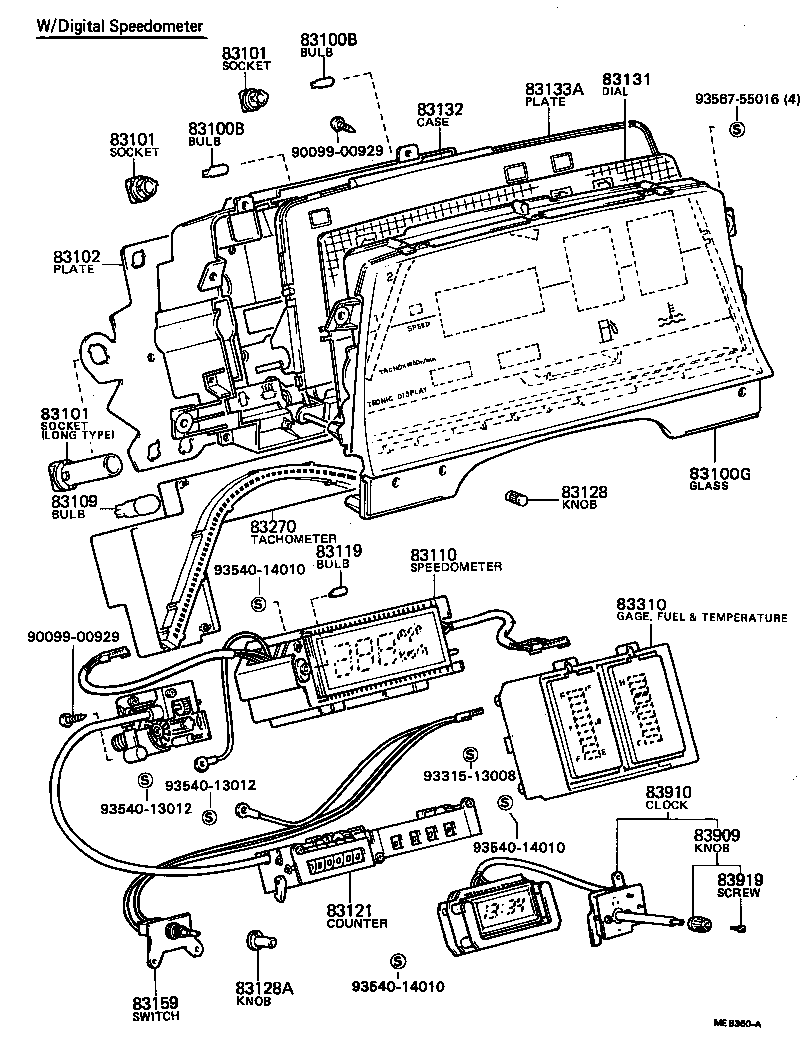

ILLUST NO. 1 OF 2(8201-8310)HT..EXA,GT,GTT ; (8310-8508)HT..EXS,GT,GTT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
14 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
14 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83133-2B570 |
ST140,TT142..HT..(EXS,GTT,SX) |
1 | ||
| 83133-2B571 |
AT141,ST140,TT142..HT..(EXS,GT,GTT,SX) |
1 | ||
| 83133-2B590 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/DIGITAL SPEEDOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-12020 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) BULB:12V 3.4W,LONG TYPE(L=40) |
2 | ||
| 83101-14030 |
AT141,RT141,ST140,TT142..HT BULB:12V 3.4W(OD=18) |
8 | ||
| 83101-14040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 BULB:12V 1.4W(D=11.3) |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-12020 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) BULB:12V 3.4W,LONG TYPE(L=40) |
2 | ||
| 83101-14030 |
AT141,RT141,ST140,TT142..HT BULB:12V 3.4W(OD=18) |
8 | ||
| 83101-14040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 BULB:12V 1.4W(D=11.3) |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-12020 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) BULB:12V 3.4W,LONG TYPE(L=40) |
2 | ||
| 83101-14030 |
AT141,RT141,ST140,TT142..HT BULB:12V 3.4W(OD=18) |
8 | ||
| 83101-14040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 BULB:12V 1.4W(D=11.3) |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-2B570 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83247-2B571 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83247-20810 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/DIGITAL SPEEDOMETER |
1 | ||
| 83247-2B571 |
AT141,ST140..HT..(EXS,GT) |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) 12V 3.4W ｷｬｯﾌﾟ付き,BULB:12V 3.4W,W/*DS |
4 | ||
| 83109-20020 |
AT141,ST140,TT142..HT 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,BULB:12V 3.4W,ANALOGUE METER |
1 | ||
| 83109-24010 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,BULB:12V 1.4W,W/*DS |
1 | ||
| 83109-20010 |
AT141,ST140,TT142..HT 14V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,BULB:12V 3.4W,ANALOGUE METER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-14330 |
ST140,TT142..HT..(EXS,GX,SX) |
1 | ||
| 83110-14790 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/DIGITAL SPEEDOMETER |
1 | ||
| 83110-2B270 |
AT141,ST140..HT |
1 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83119-24010 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) 12V 1.4W ｿｹｯﾄ付き,12V 1.4W,SPEED WARNER |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-14030 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14510 |
AT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) |
1 | ||
| 83128-10260 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/DIGITAL SPEEDOMETER |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-14610 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-2B570 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83131-1D700 |
ST140..EXS W/DIGITAL SPEEDOMETER |
1 | ||
| 83131-2B650 |
ST140..EXS |
1 | ||
| 83131-2B571 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2B570 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83132-2B570 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83132-2B571 |
ST140,TT142..HT..(EXS,SX) |
1 | ||
| 83132-2B330 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/DIGITAL SPEEDOMETER |
1 | ||
| 83132-2B270 |
ST140..EXS |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-14870 |
ST140..EXS W/DIGITAL SPEEDOMETER |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-14090 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-14510 |
ST140,TT142..HT..(EXS,GX,SX) |
1 | ||
| 83242-2B570 |
ST140,TT142..HT |
1 | ||
| 83270-14250 |
ST140..EXS W/DIGITAL SPEEDOMETER |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-14510 |
ST140,TT142..HT..(EXS,GX,SX) |
1 | ||
| 83310-14120 |
AT141,ST140,TT142..EXS,GT,GTT W/WATER TEMPARATURE GAGE |
1 | ||
| 83243-20370 |
AT141,ST140,TT142..HT |
1 | ||
| 83310-14121 |
AT141,ST140,TT142..EXS,GT,GTT W/WATER TEMPARATURE GAGE |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,SX) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14300 |
AT141,ST140,TT142..HT..(EXS,GT,GTT,SX) DIGITAL |
1 | ||
| 83910-14310 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) DIGITAL,W/DIGITAL SPEEDOMETER |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX DIGITAL |
1 | ||
| Common parts | ||||
| 90099-00929 | ||||
| 93315-13008 | ||||
| 93540-13012 | ||||
| 93540-14010 | ||||
| 93567-55016 | ||||
ILLUST NO. 2 OF 2(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-14290 |
ST140..HT..4FC |
1 | ||
| 83960 - MEMORIZER ASSY | ||||
| 83960-2001001 |
CT140,RT141,ST140,TT142..EXS,GT,GTT,SX BLACK,BLACK,TRIM2# |
1 | ||
| 83960-2001006 |
CT140,RT141,ST140,TT142..EXS,GT,GTT,SX DARK BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 82711-22220 | ||||
| 83791-12020 | ||||
| 83791-14050 | ||||
| 83791-14110 | ||||
| 83791-14120 | ||||
| 83791-20130 | ||||
| 83791-20160 | ||||
| 83791-20180 | ||||
| 91611-60614 | ||||
| 91651-40614 | ||||
| 94611-11001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
