ST140-TSPES (1982)

Toyota Corona

Production Jan 1982 - Aug 1985
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)HT

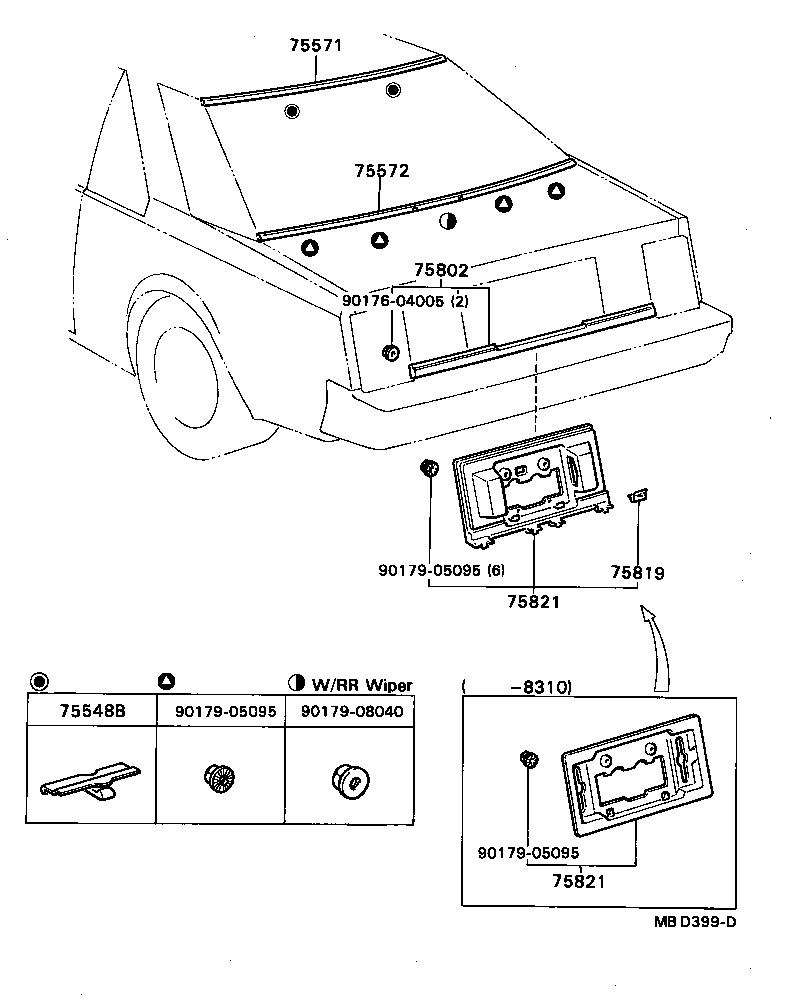

Click highlighted areas on diagram

diagram 75548B 75571 75572 75802 75819 75821 75821 9017604005 9017905095 9017905095 9017905095 9017908040
Part # Description Qty Price
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-24020

AT141,RT141,ST140,TT142..HT

 5
75548-22060

AT141,ST140,TT142..HT

 5
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75501-91D01

AT141,RT141,ST140,TT142..HT

 1
75572 - MOULDING, BACK WINDOW, LOWER
75507-91D01

AT141,RT141,ST140,TT142..HT

W/O RR WIPER

 1
75802 - MOULDING SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LOWER
75802-29035

AT141,ST140,TT142..HT

 1
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-91D01

AT141,ST140,TT142..HT

 4
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75801-29135

AT141,ST140,TT142..HT

 1
75801-29125

RT141,ST140,TT142..HT

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75801-29135

AT141,ST140,TT142..HT

 1
75801-29125

RT141,ST140,TT142..HT

 1
Common parts
90176-04005
90179-05095
90179-08040
