ST140-TSPES (1982)

Toyota Corona

Production Jan 1982 - Aug 1985
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612)SED,V ; (8612-8712)AT140,CT147,KT147,ST140

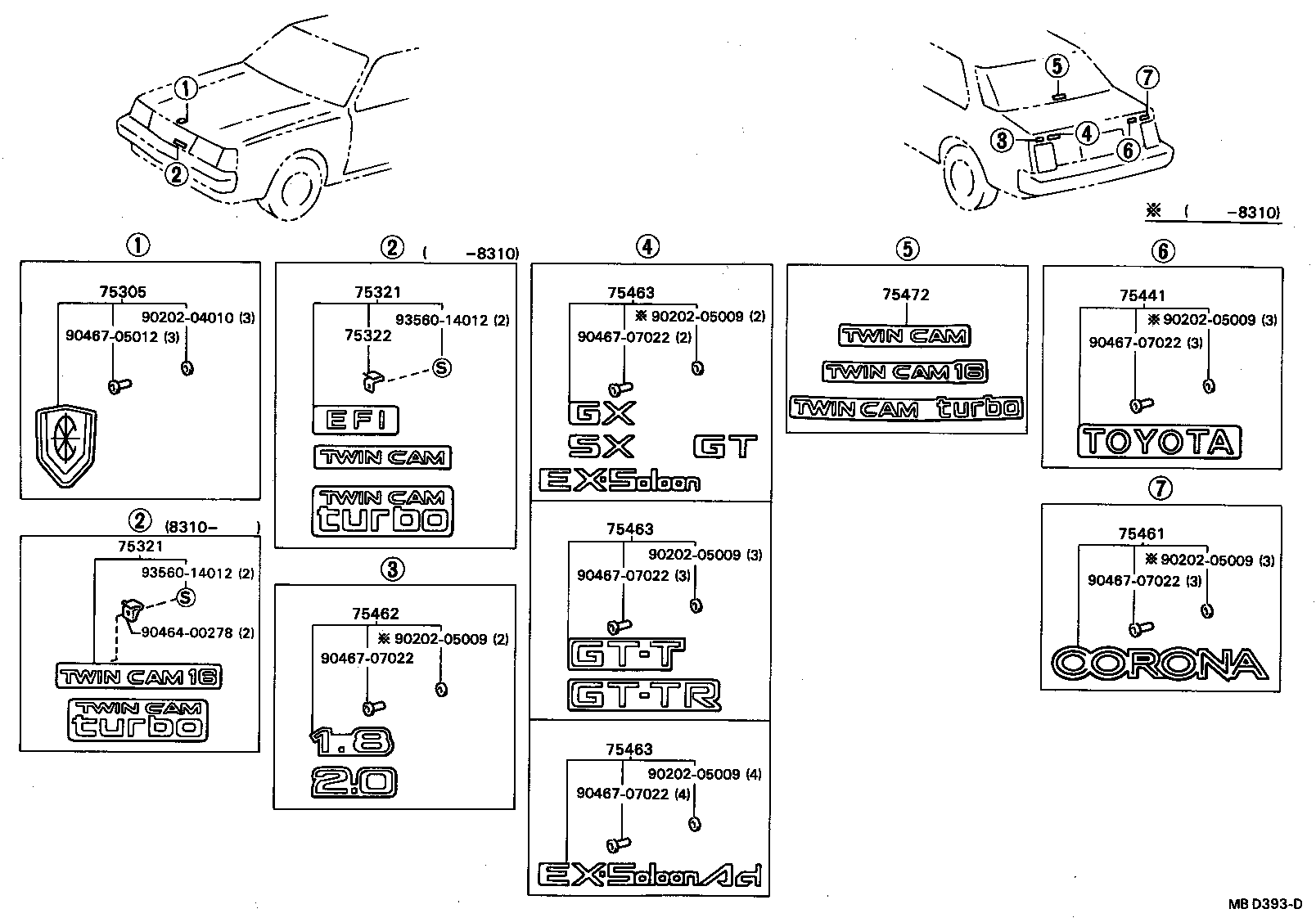

Click highlighted areas on diagram

diagram 75305 75321 75321 75351 75365 75441 75460 75461 75462 75463 75463 75463 75463 75472 9020204010 9020204015 9020204015 9020204015 9020204015 9020204015 9020204015 9020204015 9020205009 9046400278 9046705012 9046705012 9046705012 9046705012 9046705012 9046705012 9046705012 9046707022 9046804129 9356014012 9356014012
Part # Description Qty Price
75305 - EMBLEM, HOOD
75331-91D01

RT141,ST140,TT142..HT

 1
75331-91D03

AT141,ST140,TT142..HT

 1
75441 - PLATE, REAR NAME, NO.1
75443-91D01

AT141,RT141,ST140,TT142..HT

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-91D01

AT141,RT141,ST140,TT142..HT

CORONA

 1
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75442-91D01

ST140,TT142..HT..(EXS,GX,SX)

1.8

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-91D03

ST140..HT..EXS

EX SALOON

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-91D03

ST140..HT..EXS

EX SALOON

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-91D03

ST140..HT..EXS

EX SALOON

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-91D03

ST140..HT..EXS

EX SALOON

 1
Common parts
90202-04010
90202-04015
90202-05009
90464-00278
90467-05012
90467-07022
90468-04129
93560-14012

(8201-8508)HT

Click highlighted areas on diagram

diagram 75305 75321 75321 75322 75441 75461 75462 75463 75463 75463 75472 9020204010 9020205009 9020205009 9020205009 9020205009 9020205009 9020205009 9046400278 9046705012 9046707022 9046707022 9046707022 9046707022 9046707022 9046707022 9356014012 9356014012
Part # Description Qty Price
75305 - EMBLEM, HOOD
75331-91D01

RT141,ST140,TT142..HT

 1
75331-91D03

AT141,ST140,TT142..HT

 1
75441 - PLATE, REAR NAME, NO.1
75443-91D01

AT141,RT141,ST140,TT142..HT

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-91D01

AT141,RT141,ST140,TT142..HT

CORONA

 1
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75442-91D01

ST140,TT142..HT..(EXS,GX,SX)

1.8

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-91D03

ST140..HT..EXS

EX SALOON

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-91D03

ST140..HT..EXS

EX SALOON

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-91D03

ST140..HT..EXS

EX SALOON

 1
Common parts
90202-04010
90202-05009
90464-00278
90467-05012
90467-07022
93560-14012
