ST140-TSPES (1982)
Toyota Corona

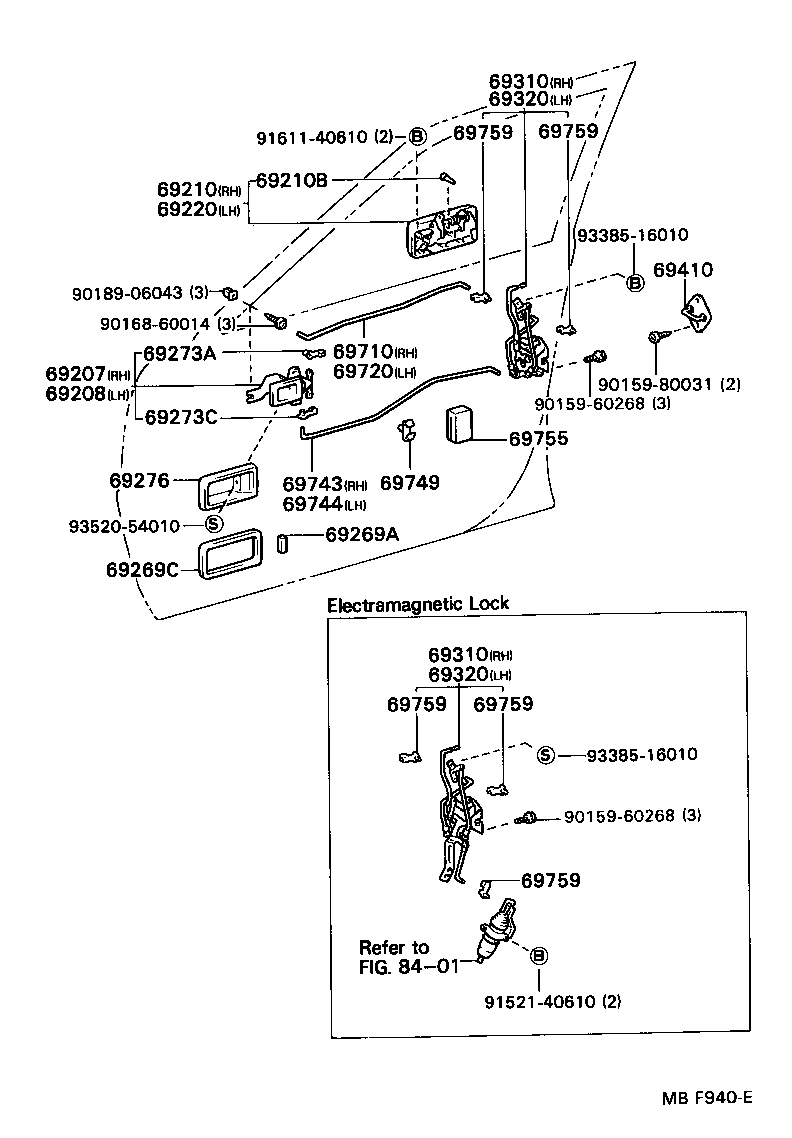

(8201-8310)HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-1405004 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) BLUE,BLUE,TRIM8# |
1 | ||
| 69205-1405001 |
RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
1 | ||
| 69205-1208001 |
AT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
1 | ||
| 69205-1405016 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 69205-1208004 |
AT141,ST140,TT142..HT BLUE,BLUE,TRIM8# |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-1405001 |
RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
1 | ||
| 69206-1208001 |
AT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
1 | ||
| 69206-1405016 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 69206-1208004 |
AT141,ST140,TT142..HT BLUE,BLUE,TRIM8# |
1 | ||
| 69206-1405004 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) BLUE,BLUE,TRIM8# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-14080 |
AT141,ST140,TT142..HT |
1 | ||
| 69210-14070 |
RT141,ST140,TT142..HT |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
4 | ||
| 90541-03021 |
AT141,ST140,TT142..HT |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-14080 |
AT141,ST140,TT142..HT |
1 | ||
| 69220-14070 |
RT141,ST140,TT142..HT |
1 | ||
| 69269A - SEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR) | ||||
| 69289-12010 |
AT141,ST140,TT142..HT |
2 | ||
| 69289-12010 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
2 | ||
| 69269C - SEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR) | ||||
| 69269-14010 |
RT141,ST140,TT142..HT |
2 | ||
| 69269-14020 |
AT141,ST140,TT142..HT |
2 | ||
| 69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR) | ||||
| 69759-14050 |
ST140,TT142..HT RH |
1 | ||
| 69759-24070 |
AT140,CT14#,RT141,ST140,TT14# LH |
1 | ||
| 69759-20020 |
AT141,ST140,TT142..HT RH |
1 | ||
| 69759-14050 |
AT140,CT14#,RT141,ST140,TT14#,YT140 RH |
1 | ||
| 69759-24070 |
ST140,TT142..HT LH |
1 | ||
| 69759-20060 |
AT141,ST140,TT142..HT LH |
1 | ||
| 69273C - SNAP, DOOR INSIDE HANDLE LINK | ||||
| 69759-24040 |
RT141,ST140,TT142..HT LH |
1 | ||
| 69759-20030 |
AT141,ST140,TT142..HT LH |
1 | ||
| 69759-24030 |
RT141,ST140,TT142..HT RH |
1 | ||
| 69759-20070 |
AT141,ST140,TT142..HT RH |
1 | ||
| 69276 - BEZEL, FRONT DOOR INSIDE HANDLE | ||||
| 69277-1402004 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) BLUE,BLUE,TRIM8# |
2 | ||
| 69277-1402016 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 69277-1402001 |
RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
2 | ||
| 69277-1403004 |
AT141,ST140,TT142..HT BLUE,BLUE,TRIM8# |
2 | ||
| 69277-1403001 |
AT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
2 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-16020 |
RT141,ST140,TT142..HT RH |
1 | ||
| 69293-16010 |
RT141,ST140,TT142..HT LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-91D02 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) W/*EL |
1 | ||
| 69310-91D01 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) W/O *EL |
1 | ||
| 69310-91D04 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/*EL |
1 | ||
| 69310-91D03 |
AT141,ST140,TT142..HT W/O *EL |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-91D02 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) W/*EL |
1 | ||
| 69310-91D01 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) W/O *EL |
1 | ||
| 69310-91D04 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/*EL |
1 | ||
| 69310-91D03 |
AT141,ST140,TT142..HT W/O *EL |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-91D02 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) W/*EL |
1 | ||
| 69320-91D03 |
AT141,ST140,TT142..HT W/O *EL |
1 | ||
| 69320-91D01 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) W/O *EL |
1 | ||
| 69320-91D04 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/*EL |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-91D02 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) W/*EL |
1 | ||
| 69320-91D03 |
AT141,ST140,TT142..HT W/O *EL |
1 | ||
| 69320-91D01 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) W/O *EL |
1 | ||
| 69320-91D04 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/*EL |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-14050 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-91D01 |
RT141,ST140,TT142..HT |
1 | ||
| 69711-14062 |
AT141,ST140,TT142..HT |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-14062 |
AT141,ST140,TT142..HT |
1 | ||
| 69712-91D01 |
RT141,ST140,TT142..HT |
1 | ||
| 69743 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH | ||||
| 69733-14040 |
RT141,ST140,TT142..HT |
1 | ||
| 69733-14041 |
AT141,ST140,TT142..HT |
1 | ||
| 69744 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH | ||||
| 69734-14041 |
AT141,ST140,TT142..HT |
1 | ||
| 69734-14040 |
RT141,ST140,TT142..HT |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12040 |
AT141,ST140,TT142..HT |
2 | ||
| 69749-12030 |
RT141,ST140,TT142..HT |
2 | ||
| 69755 - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-14010 |
AT141,RT141,ST140,TT142..HT |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24040 |
RT141,ST140,TT142..HT RH,PINK |
1 | ||
| 69759-24010 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759-24060 |
RT141,ST140,TT142..HT RH,GRAY |
1 | ||
| 69759-24050 |
RT141,ST140,TT142..HT LH,GREEN |
1 | ||
| 69759-20020 |
AT141,ST140,TT142..HT LH,WHITE |
1 | ||
| 69759-20040 |
AT141,ST140,TT142..HT LH,YELLOW |
1 | ||
| 69759-24020 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-24030 |
RT141,ST140,TT142..HT LH,RED |
1 | ||
| 69759-20030 |
AT141,ST140,TT142..HT RH,BLUE |
1 | ||
| 69759-20050 |
AT141,ST140,TT142..HT RH,BROWN |
1 | ||
| 69759-20110 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-20100 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24040 |
RT141,ST140,TT142..HT RH,PINK |
1 | ||
| 69759-24010 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759-24060 |
RT141,ST140,TT142..HT RH,GRAY |
1 | ||
| 69759-24050 |
RT141,ST140,TT142..HT LH,GREEN |
1 | ||
| 69759-20020 |
AT141,ST140,TT142..HT LH,WHITE |
1 | ||
| 69759-20040 |
AT141,ST140,TT142..HT LH,YELLOW |
1 | ||
| 69759-24020 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-24030 |
RT141,ST140,TT142..HT LH,RED |
1 | ||
| 69759-20030 |
AT141,ST140,TT142..HT RH,BLUE |
1 | ||
| 69759-20050 |
AT141,ST140,TT142..HT RH,BROWN |
1 | ||
| 69759-20110 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-20100 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24040 |
RT141,ST140,TT142..HT RH,PINK |
1 | ||
| 69759-24010 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759-24060 |
RT141,ST140,TT142..HT RH,GRAY |
1 | ||
| 69759-24050 |
RT141,ST140,TT142..HT LH,GREEN |
1 | ||
| 69759-20020 |
AT141,ST140,TT142..HT LH,WHITE |
1 | ||
| 69759-20040 |
AT141,ST140,TT142..HT LH,YELLOW |
1 | ||
| 69759-24020 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-24030 |
RT141,ST140,TT142..HT LH,RED |
1 | ||
| 69759-20030 |
AT141,ST140,TT142..HT RH,BLUE |
1 | ||
| 69759-20050 |
AT141,ST140,TT142..HT RH,BROWN |
1 | ||
| 69759-20110 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-20100 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24040 |
RT141,ST140,TT142..HT RH,PINK |
1 | ||
| 69759-24010 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759-24060 |
RT141,ST140,TT142..HT RH,GRAY |
1 | ||
| 69759-24050 |
RT141,ST140,TT142..HT LH,GREEN |
1 | ||
| 69759-20020 |
AT141,ST140,TT142..HT LH,WHITE |
1 | ||
| 69759-20040 |
AT141,ST140,TT142..HT LH,YELLOW |
1 | ||
| 69759-24020 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-24030 |
RT141,ST140,TT142..HT LH,RED |
1 | ||
| 69759-20030 |
AT141,ST140,TT142..HT RH,BLUE |
1 | ||
| 69759-20050 |
AT141,ST140,TT142..HT RH,BROWN |
1 | ||
| 69759-20110 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-20100 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RH,W/*EL |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90159-60268 | ||||
| 90159-80014 | ||||
| 90189-06018 | ||||
| 91521-40610 | ||||
| 91611-40610 | ||||
| 93385-16010 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 8401 | ||||

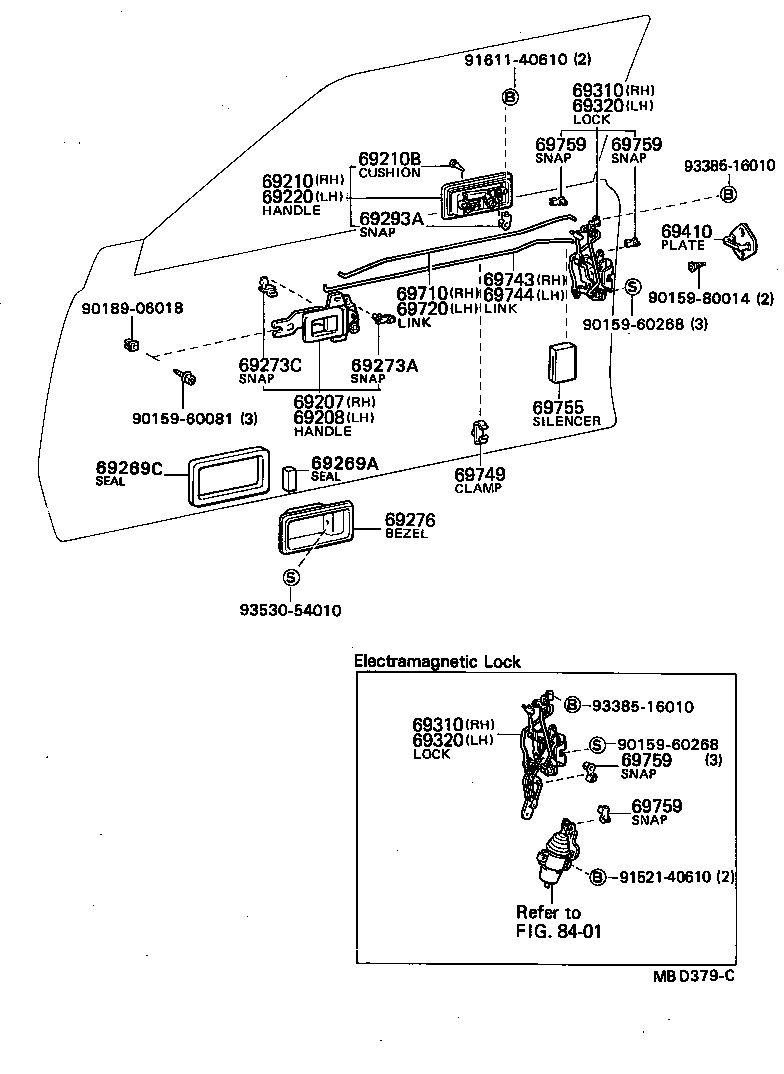

(8310-8508)HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-1405004 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) BLUE,BLUE,TRIM8# |
1 | ||
| 69205-1405001 |
RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
1 | ||
| 69205-1208001 |
AT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
1 | ||
| 69205-1405016 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 69205-1208004 |
AT141,ST140,TT142..HT BLUE,BLUE,TRIM8# |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-1405001 |
RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
1 | ||
| 69206-1208001 |
AT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
1 | ||
| 69206-1405016 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 69206-1208004 |
AT141,ST140,TT142..HT BLUE,BLUE,TRIM8# |
1 | ||
| 69206-1405004 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) BLUE,BLUE,TRIM8# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-14080 |
AT141,ST140,TT142..HT |
1 | ||
| 69210-14070 |
RT141,ST140,TT142..HT |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
4 | ||
| 90541-03021 |
AT141,ST140,TT142..HT |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-14080 |
AT141,ST140,TT142..HT |
1 | ||
| 69220-14070 |
RT141,ST140,TT142..HT |
1 | ||
| 69269A - SEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR) | ||||
| 69289-12010 |
AT141,ST140,TT142..HT |
2 | ||
| 69289-12010 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
2 | ||
| 69269C - SEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR) | ||||
| 69269-14010 |
RT141,ST140,TT142..HT |
2 | ||
| 69269-14020 |
AT141,ST140,TT142..HT |
2 | ||
| 69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR) | ||||
| 69759-14050 |
ST140,TT142..HT RH |
1 | ||
| 69759-24070 |
AT140,CT14#,RT141,ST140,TT14# LH |
1 | ||
| 69759-20020 |
AT141,ST140,TT142..HT RH |
1 | ||
| 69759-14050 |
AT140,CT14#,RT141,ST140,TT14#,YT140 RH |
1 | ||
| 69759-24070 |
ST140,TT142..HT LH |
1 | ||
| 69759-20060 |
AT141,ST140,TT142..HT LH |
1 | ||
| 69273C - SNAP, DOOR INSIDE HANDLE LINK | ||||
| 69759-24040 |
RT141,ST140,TT142..HT LH |
1 | ||
| 69759-20030 |
AT141,ST140,TT142..HT LH |
1 | ||
| 69759-24030 |
RT141,ST140,TT142..HT RH |
1 | ||
| 69759-20070 |
AT141,ST140,TT142..HT RH |
1 | ||
| 69276 - BEZEL, FRONT DOOR INSIDE HANDLE | ||||
| 69277-1402004 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) BLUE,BLUE,TRIM8# |
2 | ||
| 69277-1402016 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) SADDLE BROWN,BROWN,TRIM4# |
2 | ||
| 69277-1402001 |
RT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
2 | ||
| 69277-1403004 |
AT141,ST140,TT142..HT BLUE,BLUE,TRIM8# |
2 | ||
| 69277-1403001 |
AT141,ST140,TT142..HT BLACK,BLACK,TRIM2# |
2 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-91D02 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) W/*EL |
1 | ||
| 69310-91D01 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) W/O *EL |
1 | ||
| 69310-91D04 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/*EL |
1 | ||
| 69310-91D03 |
AT141,ST140,TT142..HT W/O *EL |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-91D02 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) W/*EL |
1 | ||
| 69310-91D01 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) W/O *EL |
1 | ||
| 69310-91D04 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/*EL |
1 | ||
| 69310-91D03 |
AT141,ST140,TT142..HT W/O *EL |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-91D02 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) W/*EL |
1 | ||
| 69320-91D03 |
AT141,ST140,TT142..HT W/O *EL |
1 | ||
| 69320-91D01 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) W/O *EL |
1 | ||
| 69320-91D04 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/*EL |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-91D02 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) W/*EL |
1 | ||
| 69320-91D03 |
AT141,ST140,TT142..HT W/O *EL |
1 | ||
| 69320-91D01 |
RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) W/O *EL |
1 | ||
| 69320-91D04 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/*EL |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-14050 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-91D01 |
RT141,ST140,TT142..HT |
1 | ||
| 69711-14062 |
AT141,ST140,TT142..HT |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-14062 |
AT141,ST140,TT142..HT |
1 | ||
| 69712-91D01 |
RT141,ST140,TT142..HT |
1 | ||
| 69743 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH | ||||
| 69733-14040 |
RT141,ST140,TT142..HT |
1 | ||
| 69733-14041 |
AT141,ST140,TT142..HT |
1 | ||
| 69744 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH | ||||
| 69734-14041 |
AT141,ST140,TT142..HT |
1 | ||
| 69734-14040 |
RT141,ST140,TT142..HT |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12040 |
AT141,ST140,TT142..HT |
2 | ||
| 69749-12030 |
RT141,ST140,TT142..HT |
2 | ||
| 69755 - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-14010 |
AT141,RT141,ST140,TT142..HT |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24040 |
RT141,ST140,TT142..HT RH,PINK |
1 | ||
| 69759-24010 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759-24060 |
RT141,ST140,TT142..HT RH,GRAY |
1 | ||
| 69759-24050 |
RT141,ST140,TT142..HT LH,GREEN |
1 | ||
| 69759-20020 |
AT141,ST140,TT142..HT LH,WHITE |
1 | ||
| 69759-20040 |
AT141,ST140,TT142..HT LH,YELLOW |
1 | ||
| 69759-24020 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-24030 |
RT141,ST140,TT142..HT LH,RED |
1 | ||
| 69759-20030 |
AT141,ST140,TT142..HT RH,BLUE |
1 | ||
| 69759-20050 |
AT141,ST140,TT142..HT RH,BROWN |
1 | ||
| 69759-20110 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-20100 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24040 |
RT141,ST140,TT142..HT RH,PINK |
1 | ||
| 69759-24010 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759-24060 |
RT141,ST140,TT142..HT RH,GRAY |
1 | ||
| 69759-24050 |
RT141,ST140,TT142..HT LH,GREEN |
1 | ||
| 69759-20020 |
AT141,ST140,TT142..HT LH,WHITE |
1 | ||
| 69759-20040 |
AT141,ST140,TT142..HT LH,YELLOW |
1 | ||
| 69759-24020 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-24030 |
RT141,ST140,TT142..HT LH,RED |
1 | ||
| 69759-20030 |
AT141,ST140,TT142..HT RH,BLUE |
1 | ||
| 69759-20050 |
AT141,ST140,TT142..HT RH,BROWN |
1 | ||
| 69759-20110 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-20100 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24040 |
RT141,ST140,TT142..HT RH,PINK |
1 | ||
| 69759-24010 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759-24060 |
RT141,ST140,TT142..HT RH,GRAY |
1 | ||
| 69759-24050 |
RT141,ST140,TT142..HT LH,GREEN |
1 | ||
| 69759-20020 |
AT141,ST140,TT142..HT LH,WHITE |
1 | ||
| 69759-20040 |
AT141,ST140,TT142..HT LH,YELLOW |
1 | ||
| 69759-24020 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-24030 |
RT141,ST140,TT142..HT LH,RED |
1 | ||
| 69759-20030 |
AT141,ST140,TT142..HT RH,BLUE |
1 | ||
| 69759-20050 |
AT141,ST140,TT142..HT RH,BROWN |
1 | ||
| 69759-20110 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-20100 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24040 |
RT141,ST140,TT142..HT RH,PINK |
1 | ||
| 69759-24010 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759-24060 |
RT141,ST140,TT142..HT RH,GRAY |
1 | ||
| 69759-24050 |
RT141,ST140,TT142..HT LH,GREEN |
1 | ||
| 69759-20020 |
AT141,ST140,TT142..HT LH,WHITE |
1 | ||
| 69759-20040 |
AT141,ST140,TT142..HT LH,YELLOW |
1 | ||
| 69759-24020 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-24030 |
RT141,ST140,TT142..HT LH,RED |
1 | ||
| 69759-20030 |
AT141,ST140,TT142..HT RH,BLUE |
1 | ||
| 69759-20050 |
AT141,ST140,TT142..HT RH,BROWN |
1 | ||
| 69759-20110 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-20100 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24040 |
RT141,ST140,TT142..HT RH,PINK |
1 | ||
| 69759-24010 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) RH,W/*EL |
1 | ||
| 69759-24060 |
RT141,ST140,TT142..HT RH,GRAY |
1 | ||
| 69759-24050 |
RT141,ST140,TT142..HT LH,GREEN |
1 | ||
| 69759-20020 |
AT141,ST140,TT142..HT LH,WHITE |
1 | ||
| 69759-20040 |
AT141,ST140,TT142..HT LH,YELLOW |
1 | ||
| 69759-24020 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-24030 |
RT141,ST140,TT142..HT LH,RED |
1 | ||
| 69759-20030 |
AT141,ST140,TT142..HT RH,BLUE |
1 | ||
| 69759-20050 |
AT141,ST140,TT142..HT RH,BROWN |
1 | ||
| 69759-20110 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) LH,W/*EL |
1 | ||
| 69759-20100 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RH,W/*EL |
1 | ||
| Common parts | ||||
| 90159-60268 | ||||
| 90159-80031 | ||||
| 90168-60014 | ||||
| 90189-06043 | ||||
| 91521-40610 | ||||
| 91611-40610 | ||||
| 93385-16010 | ||||
| 93520-54010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
