ST140-TSPES (1982)
Toyota Corona
(8201-8508)HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-14250 |
RT141,ST140,TT142..HT |
1 | ||
| 67001-91D01 |
AT141,ST140,TT142..HT |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-14280 |
RT141,ST140,TT142..HT |
1 | ||
| 67002-91D01 |
AT141,ST140,TT142..HT |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-14180 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-14190 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-14160 |
AT141,RT141,ST140,TT142..HT W/O DOOR MIRROR |
1 | ||
| 67401-14170 |
AT141,ST140,TT142..HT W/DOOR MIRROR |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-14170 |
AT141,ST140,TT142..HT W/DOOR MIRROR |
1 | ||
| 67402-14160 |
AT141,RT141,ST140,TT142..HT W/O DOOR MIRROR |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-14070 |
AT141,ST140,TT142..HT W/DOOR MIRROR |
1 | ||
| 67491-14050 |
AT141,RT141,ST140,TT142..HT W/O DOOR MIRROR |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-14050 |
AT141,RT141,ST140,TT142..HT W/O DOOR MIRROR |
1 | ||
| 67492-14070 |
AT141,ST140,TT142..HT W/DOOR MIRROR |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-91D0301 |
ST140..HT..EXS BLACK,BLACK,TRIM2# |
1 | ||
| 67610-91D0304 |
ST140..HT..EXS BLUE,BLUE,TRIM8# |
1 | ||
| 67610-91D0701 |
ST140..HT..EXS W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-91D0706 |
ST140..HT..EXS W/*PW,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 67610-91D0704 |
ST140..HT..EXS W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-91D0306 |
ST140..HT..EXS SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 67610-91D1001 |
ST140..HT..EXS BLACK,BLACK,TRIM2# |
1 | ||
| 67610-91D1006 |
ST140..HT..EXS SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 67610-91D1004 |
ST140..HT..EXS BLUE,BLUE,TRIM8# |
1 | ||
| 67610-91D2604 |
ST140..HT..EXS W/*DM,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-91D1206 |
ST140..HT..EXS W/*PW,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 67610-91D1201 |
ST140..HT..EXS W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-91D2601 |
ST140..HT..EXS W/*DM,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-91D2606 |
ST140..HT..EXS W/*DM,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 67610-91D3006 |
ST140..HT..EXS W/*DM,*PW,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 67610-91D3001 |
ST140..HT..EXS W/*DM,*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-91D3004 |
ST140..HT..EXS W/*DM,*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-91D1204 |
ST140..HT..EXS W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-91D1404 |
ST140..EXS BLUE,BLUE,TRIM8# |
1 | ||
| 67610-91D1401 |
ST140..EXS BLACK,BLACK,TRIM2# |
1 | ||
| 67610-91D1804 |
ST140..EXS W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-91D2401 |
ST140..EXS W/*DM,*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-91D2404 |
ST140..EXS W/*DM,*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-91D1801 |
ST140..EXS W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-91D2004 |
ST140..EXS W/*DM,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-91D2001 |
ST140..EXS W/*DM,BLACK,BLACK,TRIM2# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-22010 |
AT141,ST140,TT142..HT TYPE A |
16 | ||
| 67771-22010 |
AT141,RT141,ST140,TT142..HT |
22 | ||
| 67771-30060 |
AT141,ST140,TT142..HT TYPE B |
6 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-22010 |
AT141,ST140,TT142..HT TYPE A |
16 | ||
| 67771-22010 |
AT141,RT141,ST140,TT142..HT |
22 | ||
| 67771-30060 |
AT141,ST140,TT142..HT TYPE B |
6 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-91D0306 |
ST140..HT..EXS SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 67620-91D0704 |
ST140..HT..EXS W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-91D0701 |
ST140..HT..EXS W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-91D0301 |
ST140..HT..EXS BLACK,BLACK,TRIM2# |
1 | ||
| 67620-91D0304 |
ST140..HT..EXS BLUE,BLUE,TRIM8# |
1 | ||
| 67620-91D0706 |
ST140..HT..EXS W/*PW,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 67620-91D1004 |
ST140..HT..EXS BLUE,BLUE,TRIM8# |
1 | ||
| 67620-91D1006 |
ST140..HT..EXS SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 67620-91D1201 |
ST140..HT..EXS W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-91D1001 |
ST140..HT..EXS BLACK,BLACK,TRIM2# |
1 | ||
| 67620-91D1204 |
ST140..HT..EXS W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-91D1206 |
ST140..HT..EXS W/*PW,SADDLE BROWN,BROWN,TRIM4# |
1 | ||
| 67620-91D1401 |
ST140..EXS BLACK,BLACK,TRIM2# |
1 | ||
| 67620-91D1801 |
ST140..EXS W/*PW,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-91D1404 |
ST140..EXS BLUE,BLUE,TRIM8# |
1 | ||
| 67620-91D1804 |
ST140..EXS W/*PW,BLUE,BLUE,TRIM8# |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67812-12010 |
AT141,RT141,ST140,TT142..HT |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-91D02 |
AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT) W/*PW |
1 | ||
| 67831-14130 |
RT141,ST140..HT..(EXA,EXS,GT) W/*PW |
1 | ||
| 67831-91D01 |
AT141,RT141,ST140,TT142..HT..(EXS,GT,GTT,GX,SX) |
1 | ||
| 67831-14120 |
RT141,ST140,TT142..HT..(EXS,GT,GX,SX) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 67832-14050 |
RT141,ST140,TT142..HT |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
AT14#,CT140,RT141,ST140,TT142,YT140 |
44 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 67868 - CLIP, FRONT DOOR GLASS WEATHERSTRIP | ||||
| 67869-30020 |
AT141,RT141,ST140,TT142..HT |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-91D01 |
AT141,RT141,ST140,TT142..HT *TT,T=5.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-91D01 |
AT141,RT141,ST140,TT142..HT *TT,T=5.0 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-14130 |
AT141,RT141,ST140,TT142..HT LH |
1 | ||
| 68170-14160 |
AT141,RT141,ST140,TT142..HT RH |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-14040 |
AT141,RT141,ST140,TT142..HT |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-90K00 |
AT141,ST140,TT142..HT |
2 | ||
| 68617-30010 |
AT141,RT141,ST140,TT142..HT |
2 | ||
| Common parts | ||||
| 67771-14010 | ||||
| 82817-24040 | ||||
| 90119-06148 | ||||
| 90168-40025 | ||||
| 90179-06070 | ||||
| 90179-08123 | ||||
| 90188-04057 | ||||
| 90333-30002 | ||||
| 93540-54010 | ||||

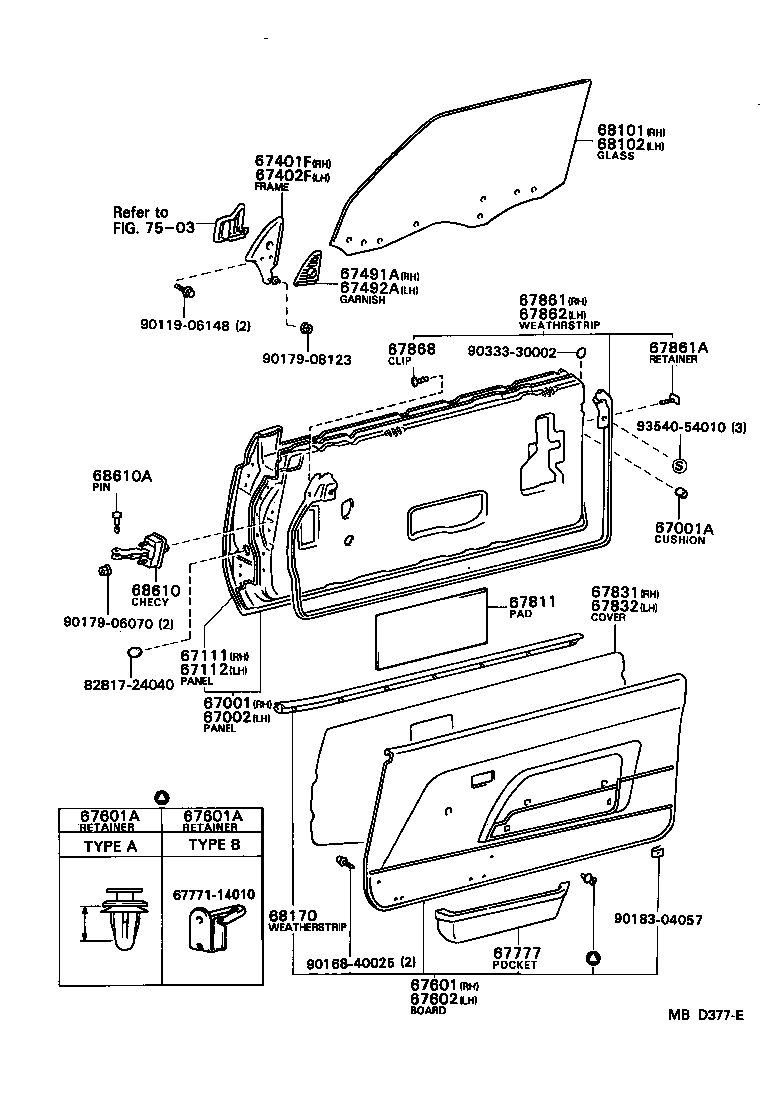

| Linked diagrams | ||||
| 7503 | ||||
