ST140-TSPES (1982)
Toyota Corona
(8201-8508)HT

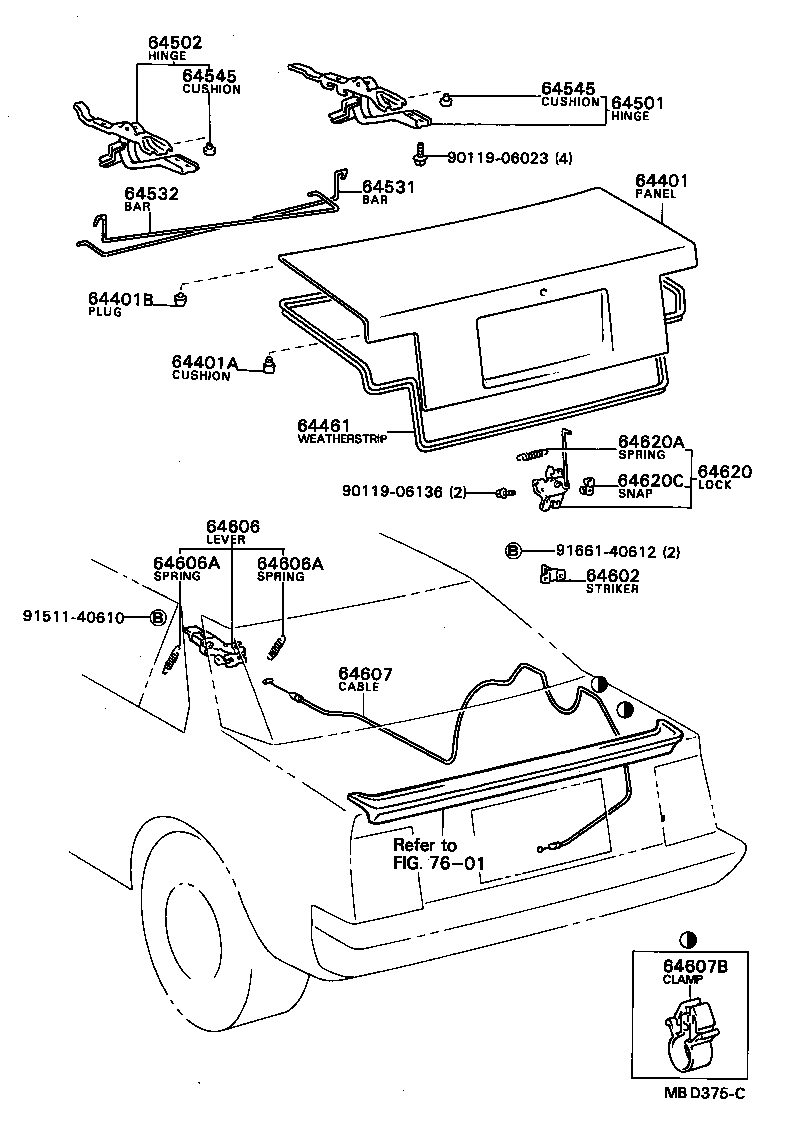

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-91D03 |
ST140,TT142..HT |
1 | ||
| 64401-91D02 |
RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX) |
1 | ||
| 64401-91D05 |
AT141,ST140,TT142..HT |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09126 |
AT141,RT141,ST140,TT142..HT |
2 | ||
| 90541-18001 |
AT141,ST140,TT142..HT |
2 | ||
| 64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-07046 |
AT141,RT141,ST140,TT142..HT |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-91D02 |
AT141,ST140,TT142..HT |
1 | ||
| 64531-91D03 |
AT141,ST140,TT142..HT W/SPOILER |
1 | ||
| 64531-91D01 |
RT141,ST140,TT142..HT |
1 | ||
| 64531-91D02 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-91D01 |
RT141,ST140,TT142..HT |
1 | ||
| 64532-91D03 |
AT141,ST140,TT142..HT W/SPOILER |
1 | ||
| 64532-91D02 |
AT141,ST140,TT142..HT |
1 | ||
| 64532-91D02 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-07007 |
AT14#,CT140,RT141,ST140,TT142,YT140 |
2 | ||
| 64545 - CUSHION, LUGGAGE DOOR HINGE | ||||
| 90541-07007 |
AT14#,CT140,RT141,ST140,TT142,YT140 |
2 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64620-22030 |
AT14#,CT140,RT141,ST140,TT142,YT140 |
1 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-14030 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
CT140,YT140;AT14#,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
2 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
CT140,YT140;AT14#,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 64607B - CLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90464-00165 |
AT141,RT141,ST140,TT142..HT |
5 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-08001 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 64620C - SNAP, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 69759-24050 |
RT141,ST140,TT142..HT |
1 | ||
| Common parts | ||||
| 90119-06023 | ||||
| 90119-06136 | ||||
| 91511-40610 | ||||
| 91661-40612 | ||||
| Linked diagrams | ||||
| 7601 | ||||
