ST140-TSPES (1982)
Toyota Corona

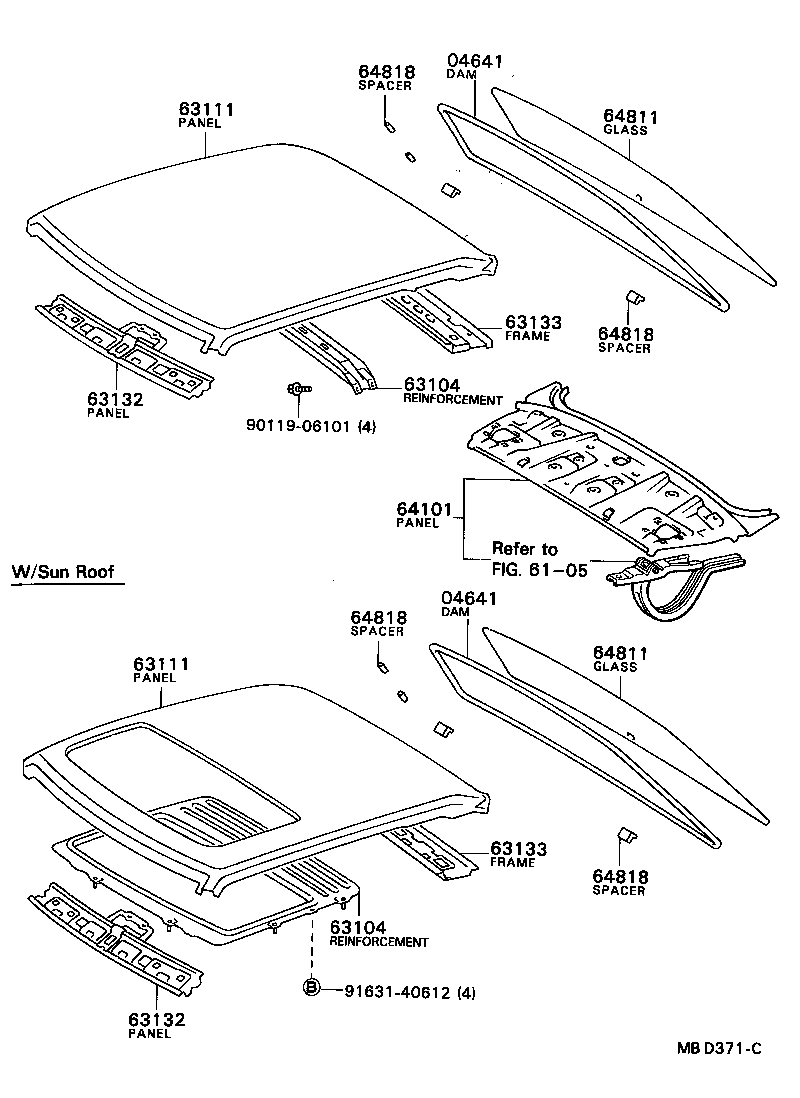

ILLUST NO. 1 OF 2(8201-8508)HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04641-20010 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04641-20010 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-14060 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 63142-14030 |
RT141,ST140,TT142..HT W/SUN ROOF |
1 | ||
| 63142-14030 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/SUN ROOF |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-14060 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 63142-14030 |
RT141,ST140,TT142..HT W/SUN ROOF |
1 | ||
| 63142-14030 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/SUN ROOF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-91D02 |
RT141,ST140,TT142..HT W/SUN ROOF |
1 | ||
| 63111-91D02 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/SUN ROOF |
1 | ||
| 63111-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-91D02 |
RT141,ST140,TT142..HT W/SUN ROOF |
1 | ||
| 63111-91D02 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) W/SUN ROOF |
1 | ||
| 63111-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-14070 |
AT141,ST140,TT142..HT |
1 | ||
| 63102-14110 |
RT141,ST140,TT142..HT |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-14070 |
AT141,ST140,TT142..HT |
1 | ||
| 63102-14110 |
RT141,ST140,TT142..HT |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-91D01 |
AT141,RT141,ST140,TT142..HT *EHTT,T=4.0 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-91D01 |
AT141,RT141,ST140,TT142..HT *EHTT,T=4.0 |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64819-91D01 |
AT141,RT141,ST140,TT142..HT LWR |
2 | ||
| 64818-91D01 |
AT141,RT141,ST140,TT142..HT SIDE |
4 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-91D01 |
AT141,RT141,ST140,TT142..HT SIDE |
4 | ||
| 64819-91D01 |
AT141,RT141,ST140,TT142..HT LWR |
2 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-91D01 |
AT141,RT141,ST140,TT142..HT SIDE |
4 | ||
| 64819-91D01 |
AT141,RT141,ST140,TT142..HT LWR |
2 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64819-91D01 |
AT141,RT141,ST140,TT142..HT LWR |
2 | ||
| 64818-91D01 |
AT141,RT141,ST140,TT142..HT SIDE |
4 | ||
| Common parts | ||||
| 90119-06101 | ||||
| 91631-40612 | ||||
| Linked diagrams | ||||
| 6105 | ||||
ILLUST NO. 2 OF 2(8201-8508)AT14#,CT140,RT141,ST140,TT142,YT140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201A - PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-14030 |
RT141,ST140,TT142..HT |
1 | ||
| 63201-14030 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-14040 |
RT141,ST140,TT142..HT |
1 | ||
| 63203-14070 |
ST140,TT142..HT |
1 | ||
| 63203-14071 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 63203-14070 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-12030 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,TT142..EXS,GTT,SX |
1 | ||
| 63207-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
1 | ||
| 63207-12030 |
AT141,ST140,TT142..EXS,GT,GTT |
1 | ||
| 63207-12031 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-12030 |
AT141,ST140,TT142..EXS,GT,GTT |
1 | ||
| 63208-12030 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,TT142..EXS,GTT,SX |
1 | ||
| 63208-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
1 | ||
| 63208-12031 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-14020 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
1 | ||
| 63209-14020 |
AT141,ST140,TT142..EXS,GT,GTT |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 90446-13001 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RR |
2 | ||
| 90446-13001 |
RT141,ST140,TT142..HT RR |
2 | ||
| 90446-12023 |
AT141,ST140,TT142..EXS,GT,GTT FR |
2 | ||
| 90446-12023 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 90446-13001 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RR |
2 | ||
| 90446-13001 |
RT141,ST140,TT142..HT RR |
2 | ||
| 90446-12023 |
AT141,ST140,TT142..EXS,GT,GTT FR |
2 | ||
| 90446-12023 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 90446-13001 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RR |
2 | ||
| 90446-13001 |
RT141,ST140,TT142..HT RR |
2 | ||
| 90446-12023 |
AT141,ST140,TT142..EXS,GT,GTT FR |
2 | ||
| 90446-12023 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 90446-13001 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RR |
2 | ||
| 90446-13001 |
RT141,ST140,TT142..HT RR |
2 | ||
| 90446-12023 |
AT141,ST140,TT142..EXS,GT,GTT FR |
2 | ||
| 90446-12023 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 90446-13001 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) RR |
2 | ||
| 90446-13001 |
RT141,ST140,TT142..HT RR |
2 | ||
| 90446-12023 |
AT141,ST140,TT142..EXS,GT,GTT FR |
2 | ||
| 90446-12023 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX FR |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-12030 |
AT141,ST140,TT142..EXS,GT,GTT |
1 | ||
| 63221-12030 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,TT142..EXS,GTT,SX |
1 | ||
| 63221-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
1 | ||
| 63223-20010 |
AT141,ST140,TT142..EXS,GT,GTT |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
1 | ||
| 63224-20010 |
AT141,ST140,TT142..EXS,GT,GTT |
1 | ||
| 63247 - HOSE, SLIDING ROOF HOUSING DRAIN | ||||
| 63247-91D01 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
2 | ||
| 63247-91D01 |
RT141,ST140,TT142..HT |
2 | ||
| 63248 - JOINT, SLIDE ROOF DRAIN HOSE, RH | ||||
| 90407-13006 |
RT141,ST140,TT142..HT |
1 | ||
| 90407-13006 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 63249 - JOINT, SLIDE ROOF DRAIN HOSE, LH | ||||
| 90407-13006 |
RT141,ST140,TT142..HT |
1 | ||
| 90407-13006 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-14020 |
AT141,ST140,TT142..EXS,GT,GTT |
1 | ||
| 63251-14020 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-12030 |
AT141,ST140,TT142..EXS,GT,GTT |
1 | ||
| 63255-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
1 | ||
| 63255-12030 |
AT141,ST140,TT142..EXS,GT,GTT |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-12040 |
AT141,ST140,TT142..EXS,GT,GTT |
1 | ||
| 63260-12040 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,TT142..EXS,GTT,SX |
1 | ||
| 63260-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
1 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
2 | ||
| 63261-12020 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,TT142..EXS,GTT,SX RH |
1 | ||
| 63261-20010 |
AT141,ST140,TT142..EXS,GT,GTT RH |
1 | ||
| 63262-12020 |
AT141,ST140,TT142..EXS,GT,GTT LH |
1 | ||
| 63262-12020 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,TT142..EXS,GTT,SX LH |
1 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63267-14010 |
AT141,ST140,TT142..EXS,GT,GTT RH |
1 | ||
| 63267-20010 |
AT141,ST140,TT142..EXS,GT,GTT RH |
1 | ||
| 63268-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX LH |
1 | ||
| 63268-14020 |
AT141,ST140,TT142..EXS,GT,GTT LH |
1 | ||
| 63267-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX RH |
1 | ||
| 63268-20010 |
AT141,ST140,TT142..EXS,GT,GTT LH |
1 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63269-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX RH |
1 | ||
| 63269-20010 |
AT141,ST140,TT142..EXS,GT,GTT RH |
1 | ||
| 63279-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX LH |
1 | ||
| 63279-20010 |
AT141,ST140,TT142..EXS,GT,GTT LH |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX L=91.5X55,T=1.0 |
8 | ||
| 63277-14020 |
AT141,ST140,TT142..EXS,GT,GTT L=48X28,T=1.0 |
8 | ||
| 63277-20010 |
AT141,ST140,TT142..EXS,GT,GTT L=91.5X55,T=1.0 |
8 | ||
| 63277-14020 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX L=48X28,T=1.0 |
8 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-20010 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX L=91.5X55,T=1.0 |
8 | ||
| 63277-14020 |
AT141,ST140,TT142..EXS,GT,GTT L=48X28,T=1.0 |
8 | ||
| 63277-20010 |
AT141,ST140,TT142..EXS,GT,GTT L=91.5X55,T=1.0 |
8 | ||
| 63277-14020 |
ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX L=48X28,T=1.0 |
8 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-12010 |
AT141,ST140,TT142..EXS,GT,GTT |
1 | ||
| Common parts | ||||
| 90153-60004 | ||||
| 90162-50007 | ||||
| 90168-40046 | ||||
| 90179-06070 | ||||
| 90179-06123 | ||||
| 90182-05020 | ||||
| 90189-05043 | ||||
| 90333-25001 | ||||
| 90467-11085 | ||||
| 90467-14001 | ||||
| 90959-01016 | ||||
| 93382-16012 | ||||
| 93385-15012 | ||||
