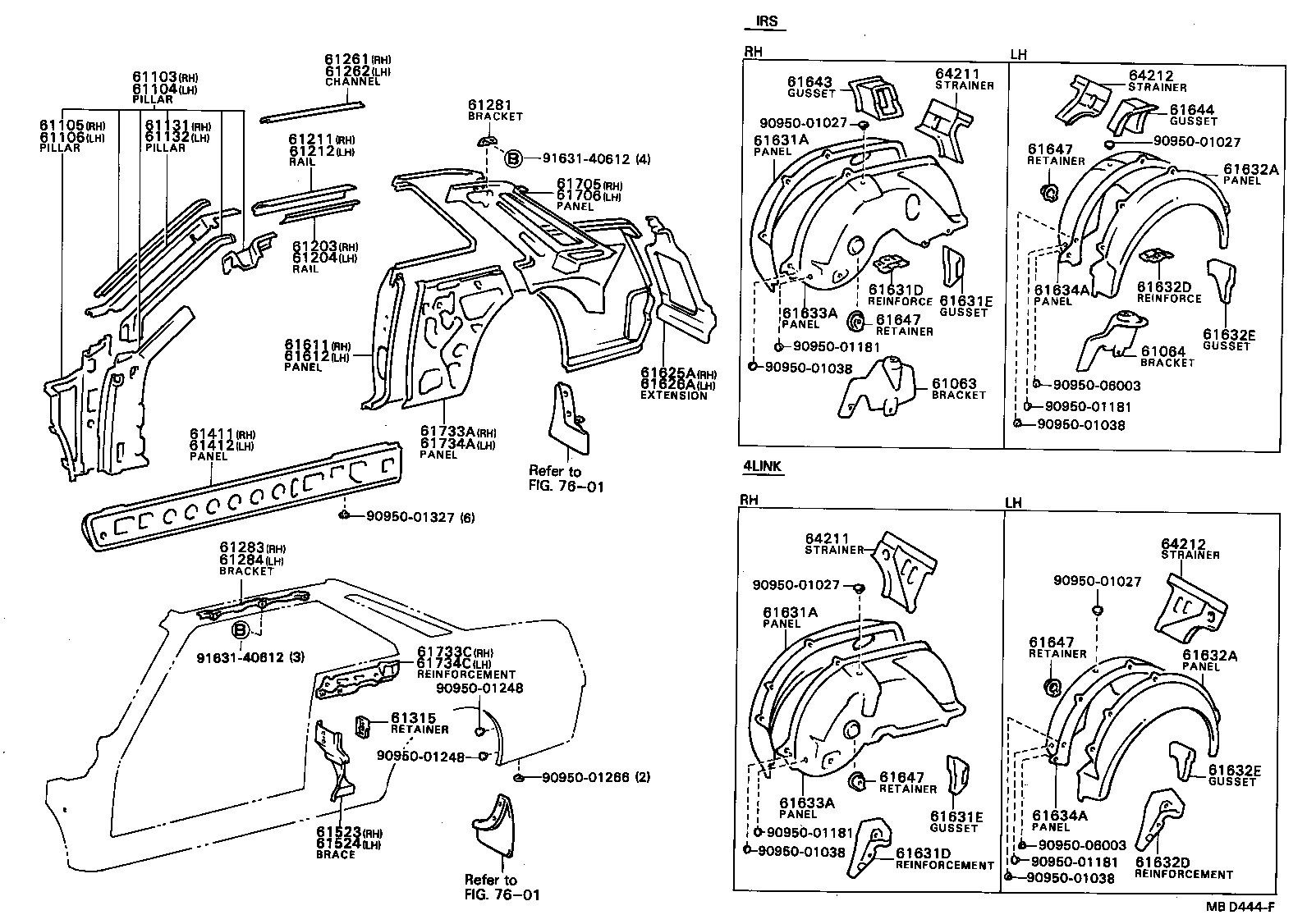

ST140-TSPES (1982)
Toyota Corona
(8201-8508)HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-14200 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-14230 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH | ||||
| 61025-14040 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH | ||||
| 61026-14040 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-14170 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-14140 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61231-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61232-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-14030 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
2 | ||
| 61281-14030 |
RT141,ST140,TT142..HT |
2 | ||
| 61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH | ||||
| 61283-14030 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 61283-14030 |
RT141,ST140,TT142..HT |
1 | ||
| 61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH | ||||
| 61284-14030 |
AT141,ST140,TT142..HT..(EXS,GT,GTT) |
1 | ||
| 61284-14030 |
RT141,ST140,TT142..HT |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61315-22020 |
AT141,RT141,ST140,TT142..HT |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-20900 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-20900 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61523 - BRACE, QUARTER LOCK PILLAR TO ROCKER PANEL, RH | ||||
| 61521-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61524 - BRACE, QUARTER LOCK PILLAR TO ROCKER PANEL, LH | ||||
| 61522-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-20906 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-20901 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61625A - EXTENSION SUB-ASSY, QUARTER PANEL, RH | ||||
| 61625-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61626A - EXTENSION SUB-ASSY, QUARTER PANEL, LH | ||||
| 61626-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-14020 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-14020 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61631D - REINFORCEMENT, QUARTER WHEEL HOUSE, RH | ||||
| 61675-14030 |
AT140,CT140,ST140 |
1 | ||
| 61631D - REINFORCEMENT, QUARTER WHEEL HOUSE, RH | ||||
| 61675-14030 |
AT140,CT140,ST140 |
1 | ||
| 61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-14040 |
AT14#,CT140,RT141,ST140,TT142,YT140 |
1 | ||
| 61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-14040 |
AT14#,CT140,RT141,ST140,TT142,YT140 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-14130 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61632-14140 |
AT141,ST140,TT142..HT |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-14130 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61632-14140 |
AT141,ST140,TT142..HT |
1 | ||
| 61632D - REINFORCEMENT, QUARTER WHEEL HOUSE, LH | ||||
| 61676-14020 |
AT140,CT140,ST140 |
1 | ||
| 61632D - REINFORCEMENT, QUARTER WHEEL HOUSE, LH | ||||
| 61676-14020 |
AT140,CT140,ST140 |
1 | ||
| 61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-14050 |
AT14#,CT140,RT141,ST140,TT142,YT140 |
1 | ||
| 61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-14050 |
AT14#,CT140,RT141,ST140,TT142,YT140 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61603-14909 |
ST140..HT |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61603-14909 |
ST140..HT |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61604-14909 |
ST140..HT |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61604-14909 |
ST140..HT |
1 | ||
| 61647 - RETAINER, REAR SEAT BACK PIVOT, LOWER | ||||
| 61647-14050 |
AT141,ST140,TT142..HT |
2 | ||
| 61647-14040 |
RT141,ST140,TT142..HT |
2 | ||
| 61647 - RETAINER, REAR SEAT BACK PIVOT, LOWER | ||||
| 61647-14050 |
AT141,ST140,TT142..HT |
2 | ||
| 61647-14040 |
RT141,ST140,TT142..HT |
2 | ||
| 61647 - RETAINER, REAR SEAT BACK PIVOT, LOWER | ||||
| 61647-14050 |
AT141,ST140,TT142..HT |
2 | ||
| 61647-14040 |
RT141,ST140,TT142..HT |
2 | ||
| 61647 - RETAINER, REAR SEAT BACK PIVOT, LOWER | ||||
| 61647-14050 |
AT141,ST140,TT142..HT |
2 | ||
| 61647-14040 |
RT141,ST140,TT142..HT |
2 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-20910 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-20910 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61733C - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 61734C - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-91D01 |
AT141,RT141,ST140,TT142..HT |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-14110 |
ST140..HT |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-14110 |
ST140..HT |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-14110 |
ST140..HT |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-14110 |
ST140..HT |
1 | ||
| Common parts | ||||
| 90950-01027 | ||||
| 90950-01038 | ||||
| 90950-01181 | ||||
| 90950-01248 | ||||
| 90950-01266 | ||||
| 90950-01327 | ||||
| 90950-06003 | ||||
| 91631-40612 | ||||
| Linked diagrams | ||||
| 7601 | ||||
