ST140-TSPES (1982)

Toyota Corona

Production Jan 1982 - Aug 1985
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

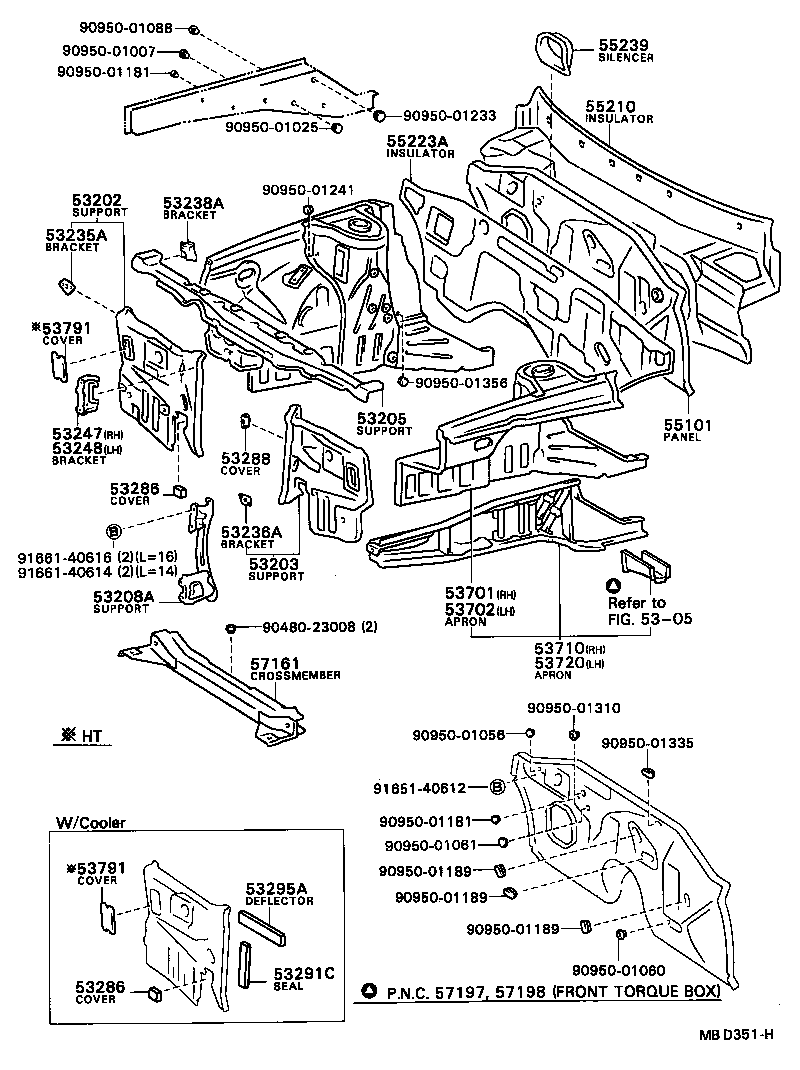

Click highlighted areas on diagram

diagram 5305 53202 53203 53205 53208A 53235A 53236A 53238A 53247 53248 53286 53286 53288 53291C 53295A 53701 53702 53710 53720 53791 53791 55101 55210 55223A 55239 57161 9048023008 9095001007 9095001025 9095001056 9095001060 9095001061 9095001088 9095001181 9095001181 9095001189 9095001189 9095001189 9095001233 9095001241 9095001310 9095001335 9095001356 9165140612 9166140614 9166140616
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-91D01

RT141,ST140,TT142..HT

 1
53202-91D02

AT141,RT141,ST140,TT142..HT

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-91D01

AT141,RT141,ST140,TT142..HT

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-91D01

AT141,RT141,ST140,TT142..HT

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-91D02

AT141,ST140,TT142..HT

 1
53208-91D01

RT141,ST140,TT142..HT

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-20924

ST140..HT

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-20935

AT141,RT141,ST140,TT142..HT

 1
53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH
53710-20904

ST140..HT

 1
53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH
53720-20903

AT141,RT141,ST140,TT142..HT

 1
53791 - COVER, COOL AIR INTAKE HOLE
53791-14010

AT141,RT141,ST140,TT142..HT

 2
53791 - COVER, COOL AIR INTAKE HOLE
53791-14010

AT141,RT141,ST140,TT142..HT

 2
55101 - PANEL SUB-ASSY, DASH
55101-14911

ST140

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-14270

RT141,ST140,TT142..HT

 1
55239 - SILENCER, STEERING COLUMN HOLE COVER
55212-14060

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..3FC,4F,4FC,5F

 1
57161 - CROSSMEMBER, FRONT
57104-14050

AT141,RT141,ST140,TT142..HT

 1
Common parts
90480-23008
90950-01007
90950-01025
90950-01056
90950-01060
90950-01061
90950-01088
90950-01181
90950-01189
90950-01233
90950-01241
90950-01310
90950-01335
90950-01356
91651-40612
91661-40614
91661-40616
Linked diagrams
5305
