ST140-TSPES (1982)

Toyota Corona

Production Jan 1982 - Aug 1985
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

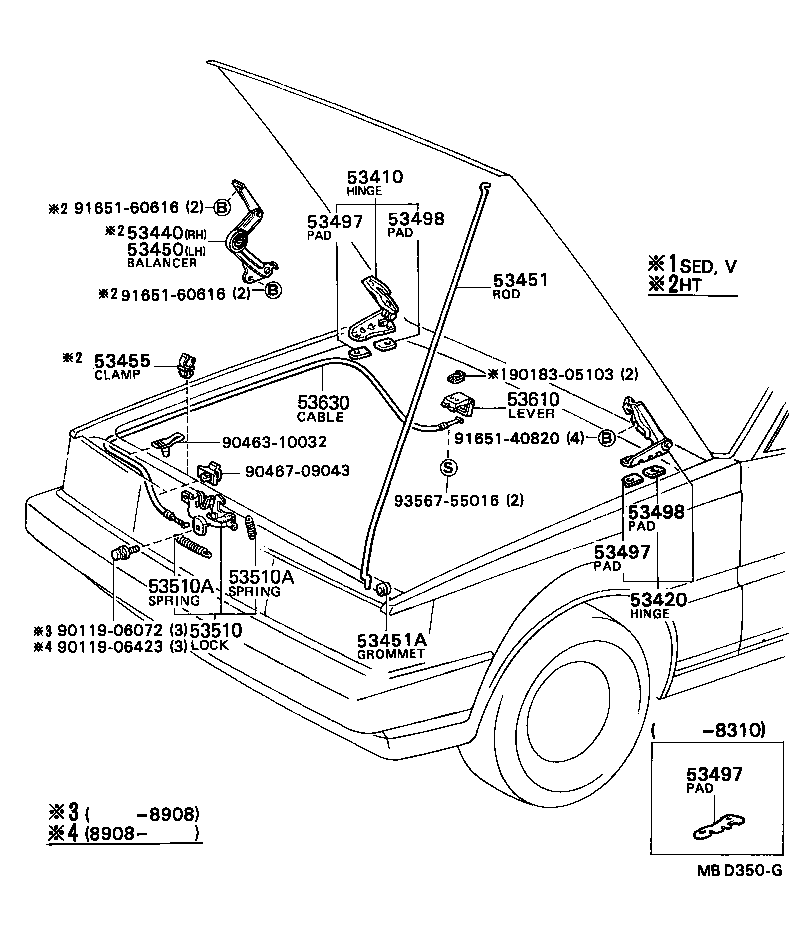

Click highlighted areas on diagram

diagram 53410 53420 53440 53450 53451 53451A 53455 53497 53497 53497 53498 53498 53510 53510A 53510A 53610 53630 9011906072 9011906423 9018305103 9046310032 9046709043 9165140820 9165160616 9165160616 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-14060

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
53420 - HINGE ASSY, HOOD, LH
53420-14040

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
53440 - BALANCER ASSY, HOOD, RH
53440-91D01

AT141,RT141,ST140,TT142..HT

 1
53450 - BALANCER ASSY, HOOD, LH
53450-91D01

AT141,RT141,ST140,TT142..HT

 1
53451 - ROD, HOOD SUPPORT
53451-14050

AT141,RT141,ST140,TT142..HT

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15011

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-14020

AT141,RT141,ST140,TT142..HT

 1
53497 - PAD, HOOD HINGE, NO.1
53497-14010

AT140,CT14#,RT141,ST140,TT14#,YT140

 2
53497 - PAD, HOOD HINGE, NO.1
53497-14010

AT140,CT14#,RT141,ST140,TT14#,YT140

 2
53497 - PAD, HOOD HINGE, NO.1
53497-14010

AT140,CT14#,RT141,ST140,TT14#,YT140

 2
53510 - LOCK ASSY, HOOD
53510-91D02

AT141,ST140,TT142..HT

 1
53510-91D01

RT141,ST140,TT142..HT

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09008

AT140,CT14#,RT141,ST140,TT14#,YT140

線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9

 2
90506-18024

AT141,RT141,ST140,TT142..HT

WD=1.8

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09008

AT140,CT14#,RT141,ST140,TT14#,YT140

線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9

 2
90506-18024

AT141,RT141,ST140,TT142..HT

WD=1.8

 1
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-1401001

YT140;CT147,RT141,ST140,TT14#..HT,V;AT140,CT140,TT142..SED..(GTT,STD)

BLACK,BLACK,TRIM2#

 1
53601-1401004

AT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX

BLUE,BLUE,TRIM8#

 1
53601-1401016

AT140,CT14#,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX

SADDLE BROWN,BROWN,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-14230

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
Common parts
90119-06072
90119-06423
90183-05103
90463-10032
90467-09043
91651-40820
91651-60616
93567-55016
