ST140-TSPES (1982)

Toyota Corona

Production Jan 1982 - Aug 1985
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612)SED,V ; (8612-8712)AT140,CT147,KT147,ST140

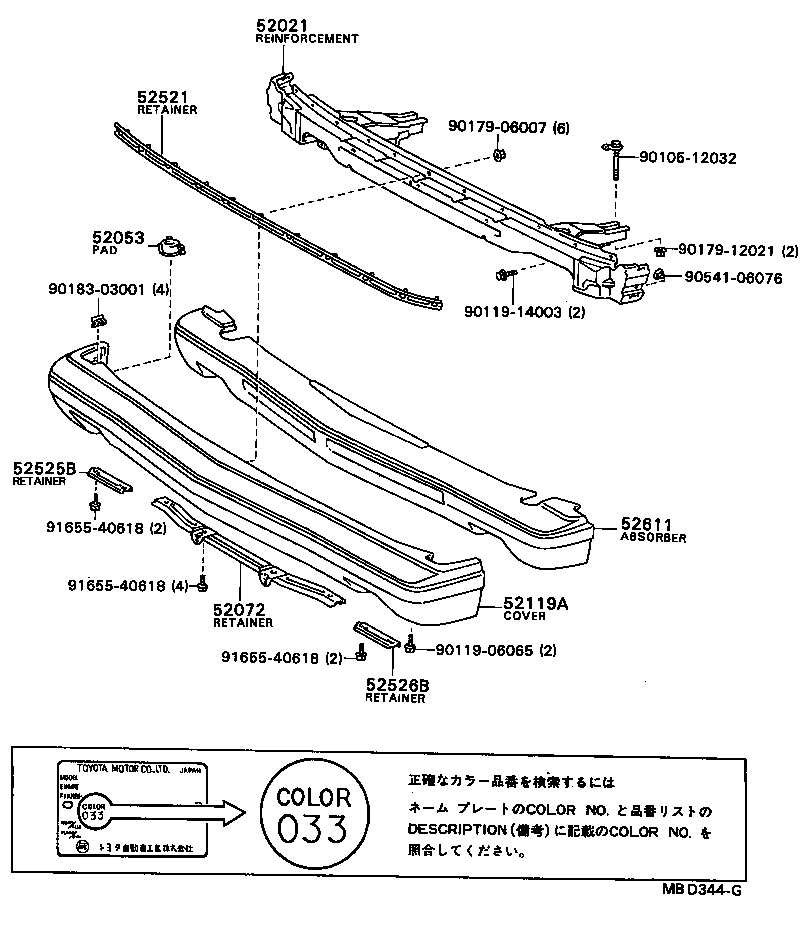

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52121A 52122A 52701 52717 52717 52717 52721 52722 9011910240 9017906115 9046804029 9165540616 9165540616 9165561030 9356815012 9356815012
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-91D01

AT141,RT141,ST140,TT142..HT

 1
52119A - COVER, FRONT BUMPER
52119-91D0102

RT141,ST140,TT142..HT

APRICOT-M,RED/MAROON,3B4

 1
52119-91D0103

RT141,ST140,TT142..HT

SILVER-M,GRAY,125 ,2G5

 1
52119-91D0108

RT141,ST140,TT142..HT

WHITE,IVORY,033

 1
52119-91D0101

RT141,ST140,TT142..HT

BLACK-M,BLACK,203 ,2E1

 1
52119-91D0112

RT141,ST140,TT142..HT

RED,RED/MAROON,391

 1
52119-91D0114

AT141,ST140,TT142..HT

BLUE-M,BLUE,896

 1
52119-91D0128

AT141,ST140,TT142..HT

WHITE,IVORY,038

 1
52119-91D0107

AT141,ST140,TT142..HT

TURQUOISE-M,GREEN,722

 1
52119-91D0122

AT141,ST140,TT142..HT

RED,RED/MAROON,3D7

 1
52119-91D0113

AT141,ST140,TT142..HT

SILVER-M,GRAY,2S1

 1
Common parts
90119-10240
90179-06115
90468-04029
91655-40616
91655-61030
93568-15012

(8201-8508)HT

Click highlighted areas on diagram

diagram 52021 52053 52072 52119A 52521 52525B 52526B 52611 9010512032 9011906065 9011914003 9017906007 9017912021 9018303001 9054106076 9165540618 9165540618 9165540618
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-91D01

AT141,RT141,ST140,TT142..HT

 1
52053 - PAD SUB-ASSY, FRONT BUMPER
52421-91D01

RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX)

 2
52072 - RETAINER SUB-ASSY, FRONT BUMPER, LOWER
52072-91D01

AT141,RT141,ST140,TT142..HT

 1
52119A - COVER, FRONT BUMPER
52119-91D0102

RT141,ST140,TT142..HT

APRICOT-M,RED/MAROON,3B4

 1
52119-91D0103

RT141,ST140,TT142..HT

SILVER-M,GRAY,125 ,2G5

 1
52119-91D0108

RT141,ST140,TT142..HT

WHITE,IVORY,033

 1
52119-91D0101

RT141,ST140,TT142..HT

BLACK-M,BLACK,203 ,2E1

 1
52119-91D0112

RT141,ST140,TT142..HT

RED,RED/MAROON,391

 1
52119-91D0114

AT141,ST140,TT142..HT

BLUE-M,BLUE,896

 1
52119-91D0128

AT141,ST140,TT142..HT

WHITE,IVORY,038

 1
52119-91D0107

AT141,ST140,TT142..HT

TURQUOISE-M,GREEN,722

 1
52119-91D0122

AT141,ST140,TT142..HT

RED,RED/MAROON,3D7

 1
52119-91D0113

AT141,ST140,TT142..HT

SILVER-M,GRAY,2S1

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-91D01

AT141,RT141,ST140,TT142..HT

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-14010

AT141,RT141,ST140,TT142..HT

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-14010

AT141,RT141,ST140,TT142..HT

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-91D01

AT141,RT141,ST140,TT142..HT

 1
Common parts
90105-12032
90119-06065
90119-14003
90179-06007
90179-12021
90183-03001
90541-06076
91655-40618
