ST140-TSPES (1982)
Toyota Corona
ILLUST NO. 2 OF 3(8201-8602)AT140,CT140,ST140..EXA,EXS,GX,GXA
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-20010 |
CT140,ST140..EXA,EXS,GXA |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-46001 |
CT140,ST140..EXA,EXS,GXA |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-46001 |
CT140,ST140..EXA,EXS,GXA |
2 | ||
| 44201D - BEARING, THRUST NEEDLE ROLLER(FOR CONTROL VALVE) | ||||
| 90374-30003 |
CT140,ST140..EXA,EXS,GXA |
1 | ||
| 44201E - WASHER, PLATE(FOR POWER STEERING CONTROL VALVE) | ||||
| 90201-30003 |
CT140,ST140..EXA,EXS,GXA |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34003 |
AT140,CT140,ST140..EXA,EXS,GX,GXA INNER |
1 | ||
| 90562-38002 |
AT140,CT140,ST140..EXA,EXS,GX,GXA OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34003 |
AT140,CT140,ST140..EXA,EXS,GX,GXA INNER |
1 | ||
| 90562-38002 |
AT140,CT140,ST140..EXA,EXS,GX,GXA OUTER |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-46001 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-25002 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
2 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44211A - RING, O(FOR CONTROL VALVE HOUSING) | ||||
| 90301-38002 |
CT140,ST140..EXA,EXS,GXA OUTER |
1 | ||
| 90301-26001 |
CT140,ST140..EXA,EXS,GXA INNER |
1 | ||
| 44211A - RING, O(FOR CONTROL VALVE HOUSING) | ||||
| 90301-38002 |
CT140,ST140..EXA,EXS,GXA OUTER |
1 | ||
| 90301-26001 |
CT140,ST140..EXA,EXS,GXA INNER |
1 | ||
| 44211B - RING(FOR CONTROL VALVE HOUSING) | ||||
| 90562-24002 |
CT140,ST140..EXA,EXS,GXA ID=24.4,LWR |
1 | ||
| 90562-29002 |
CT140,ST140..EXA,EXS,GXA ID=29.9,UPR |
1 | ||
| 44211B - RING(FOR CONTROL VALVE HOUSING) | ||||
| 90562-24002 |
CT140,ST140..EXA,EXS,GXA ID=24.4,LWR |
1 | ||
| 90562-29002 |
CT140,ST140..EXA,EXS,GXA ID=29.9,UPR |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-12010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44203-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99120 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44256 - NUT, CYLINDER END STOPPER | ||||
| 44256-12010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-02001 |
AT140,CT140,ST140..EXA,EXS,GX,GXA VALVE SIDE |
2 | ||
| 90410-05005 |
AT140,CT140,ST140..EXA,EXS,GX,GXA HOUSING SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-02001 |
AT140,CT140,ST140..EXA,EXS,GX,GXA VALVE SIDE |
2 | ||
| 90410-05005 |
AT140,CT140,ST140..EXA,EXS,GX,GXA HOUSING SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29015 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29015 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14003 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX OD=43 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14003 |
AT140,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX OD=43 |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-12010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10568 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10568 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91511-60825 | ||||
ILLUST NO. 3 OF 3(8201-8712)CT140 ; (8201-8712)AT140,ST140..EXA,EXS,GX,GXA
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 04455-20020 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
AT14#,CT140,ST140,TT142 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14010 |
AT140,CT140,ST140,TT142..EXA,EXS,GX,GXA,SX W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-24010 |
AT14#,CT140,RT141,ST140,TT142 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-14010 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90119-10218 | ||||
| 90119-10220 | ||||

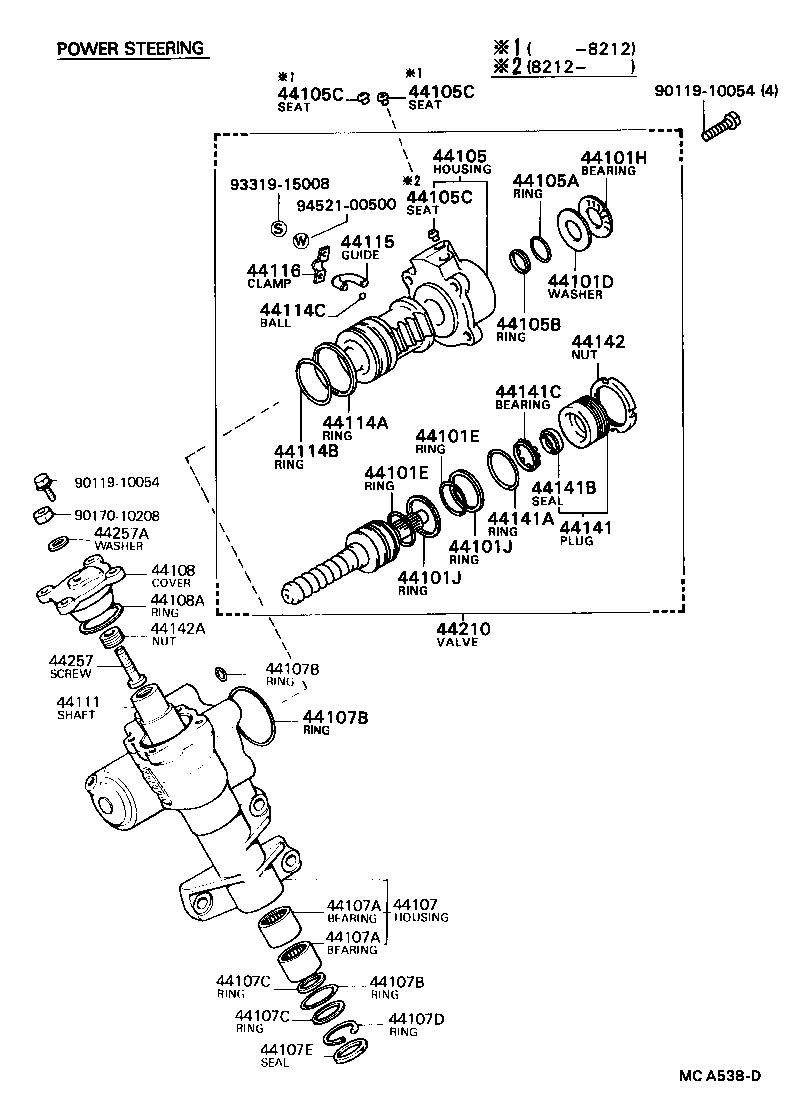

ILLUST NO. 3 OF 3(8209- )ST140,YT140
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-20010 |
AT140,CT140,ST140..EXA,EXS,GX,GXA |
1 | ||
| Common parts | ||||
| 90119-10054 | ||||
| 90170-10208 | ||||
| 93319-15008 | ||||
| 94521-00500 | ||||

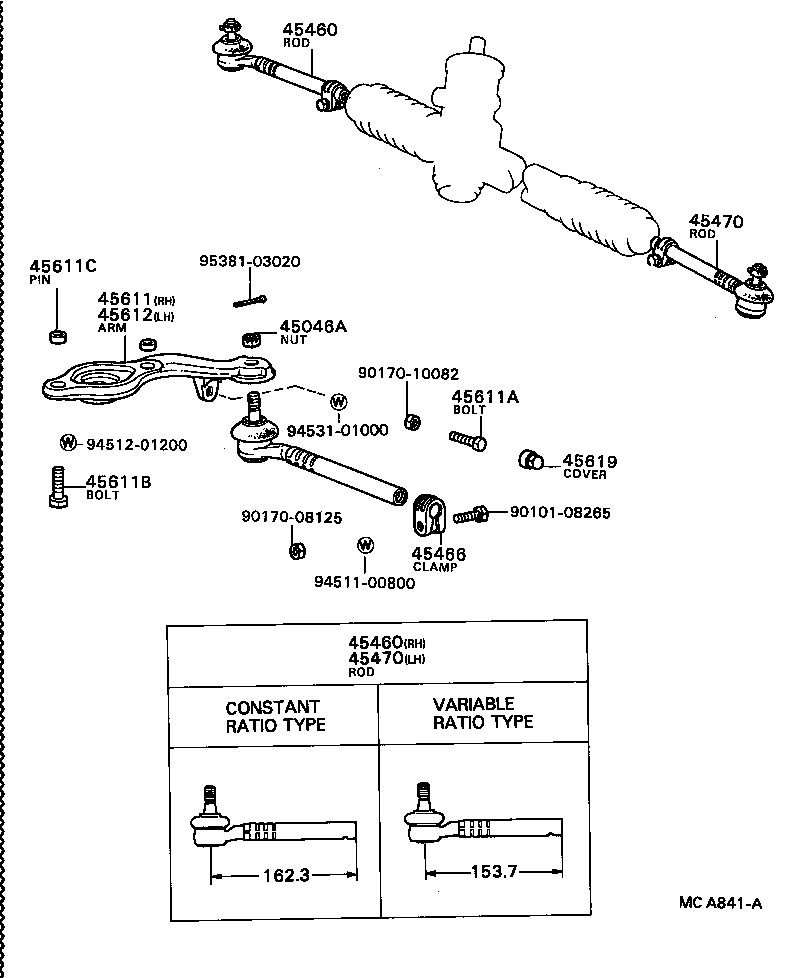

ILLUST NO. 1 OF 3(8201-8712)CT140..EXS,GX ; (8201-8712)AT14#,RT141,ST140,TT142
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19155 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX W/POWER STEERING |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19155 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX W/POWER STEERING |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19155 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX W/POWER STEERING |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19155 |
AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX W/POWER STEERING |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-14030 |
AT140,CT140,ST140..EXA,EXS,GX,GXA W/POWER STEERING |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10002 |
AT140,CT140,ST140..EXS,GX L=31 |
2 | ||
| 90106-10032 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 L=34 |
2 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12491 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 L=42 |
4 | ||
| 90101-12295 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 L=35 |
4 | ||
| 90101-12379 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 L=39 |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-14030 |
AT140,CT140,ST140..EXA,EXS,GX,GXA W/POWER STEERING |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90170-08125 | ||||
| 90170-10082 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||
