ST140-TSPES (1982)
Toyota Corona
Production
Jan 1982
-
Aug 1985
Engine
1SU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

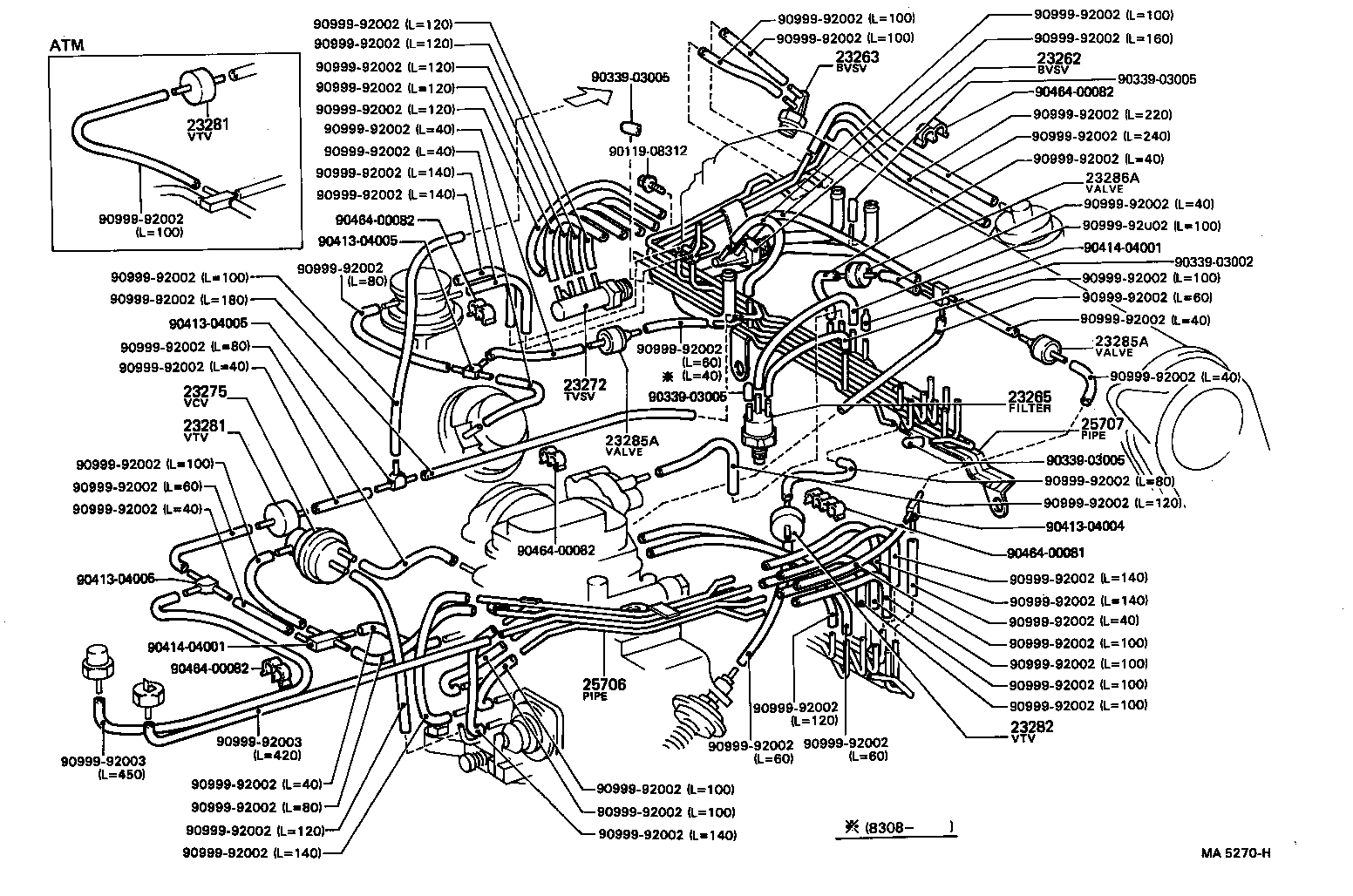

ILLUST NO. 1 OF 2(8201-8712)1SU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05064 |
1SU..ST140 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05016 |
1SU..ST140 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
1SU..ST140 NIPPONDENSO |
1 | ||
| 23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2 | ||||
| 90925-02072 |
1SU..ST140 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
1SU..ST140..4FC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
1SU..ST140..4FC |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01033 |
1SU..ST140 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
1SU..ST140 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
1SU..ST140 |
2 | ||
| 23286A - VALVE, CHECK, NO.2 | ||||
| 90917-10038 |
1SU..ST140 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-63020 |
1SU..ST140 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-63060 |
1SU..ST140 |
1 | ||
| 25707-63010 |
1SU..ST140 |
1 | ||
| Common parts | ||||
| 90119-08312 | ||||
| 90339-03002 | ||||
| 90339-03005 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||

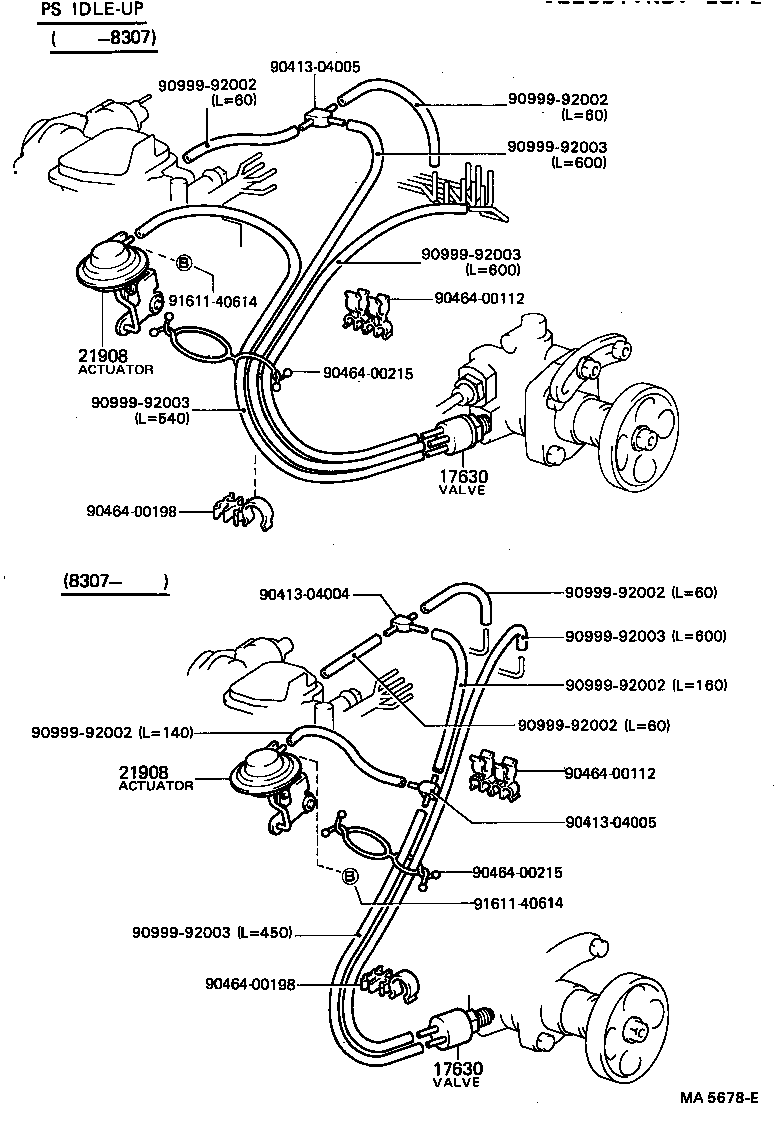

ILLUST NO. 2 OF 2(8201-8712)1SU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-18010 |
1SU..ST140 W/PS |
1 | ||
| 17630-15010 |
1SU..ST140 W/PS |
1 | ||
| 17630-28020 |
1SU..ST140 W/PS |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-18010 |
1SU..ST140 W/PS |
1 | ||
| 17630-15010 |
1SU..ST140 W/PS |
1 | ||
| 17630-28020 |
1SU..ST140 W/PS |
1 | ||
| 21908 - ACTUATOR SUB-ASSY, IDLE-UP | ||||
| 21908-63010 |
1SU..ST140 |
1 | ||
| 21908 - ACTUATOR SUB-ASSY, IDLE-UP | ||||
| 21908-63010 |
1SU..ST140 |
1 | ||
| Common parts | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90464-00112 | ||||
| 90464-00198 | ||||
| 90464-00215 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-40614 | ||||
(8201- )1SU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
