ST140-TSPES (1982)

Toyota Corona

Production Jan 1982 - Aug 1985
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

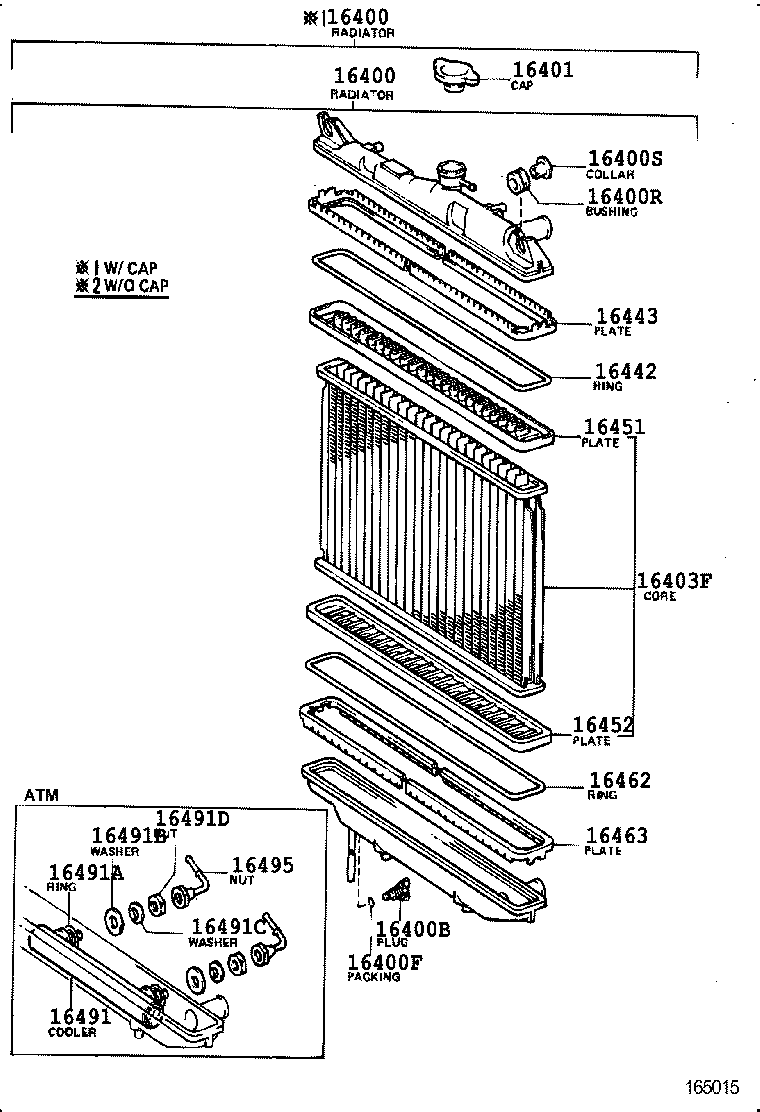

ILLUST NO. 3 OF 3(8201-8811)1SU

Click highlighted areas on diagram

diagram 16400 16400 16400B 16400F 16400R 16400S 16401 16403F 16442 16443 16451 16452 16462 16463 16491 16491A 16491B 16491C 16491D 16495
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-63020

1SU..ST140..4FC

W/CAP

 1
16400 - RADIATOR ASSY
16400-63020

1SU..ST140..4FC

W/CAP

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

1SU..ST140

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

1SU..ST140

 1
16400R - BUSHING(FOR RADIATOR)
16444-35070

1SU..ST140

 2
16400S - COLLAR(FOR RADIATOR)
16445-35070

1SU..ST140

 2
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

1SU..ST140

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-37100

1SU..ST140..4FC

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-35070

1SU..ST140

 1
16443 - PLATE, RADIATOR TANK, LOCK, UPPER
16443-35070

1SU..ST140

 2
16451 - PLATE, RADIATOR CORE, UPPER
16451-35070

1SU..ST140

 1
16452 - PLATE, RADIATOR CORE, LOWER
16452-35070

1SU..ST140

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-35070

1SU..ST140

 1
16463 - PLATE, RADIATOR TANK, LOCK, LOWER
16463-35070

1SU..ST140

 2
16491 - COOLER, OIL(FOR ATM)
16491-35080

1SU..ST140..4FC

 1
16491-35080

1SU..ST140..4FC

 1
16491A - RING, O(FOR ATM OIL COOLER)
16492-35080

1SU..ST140..4FC

 2
16491B - WASHER, PLATE(FOR ATM OIL COOLER)
16493-35080

1SU..ST140..4FC

 2
16491C - WASHER, SPRING(FOR ATM OIL COOLER)
16494-35080

1SU..ST140..4FC

 2
16491D - NUT(FOR ATM OIL COOLER)
16496-35080

1SU..ST140..4FC

 2
16495 - NUT, FLARE(FOR ATM OIL COOLER)
16495-35080

1SU..ST140..4FC

 2

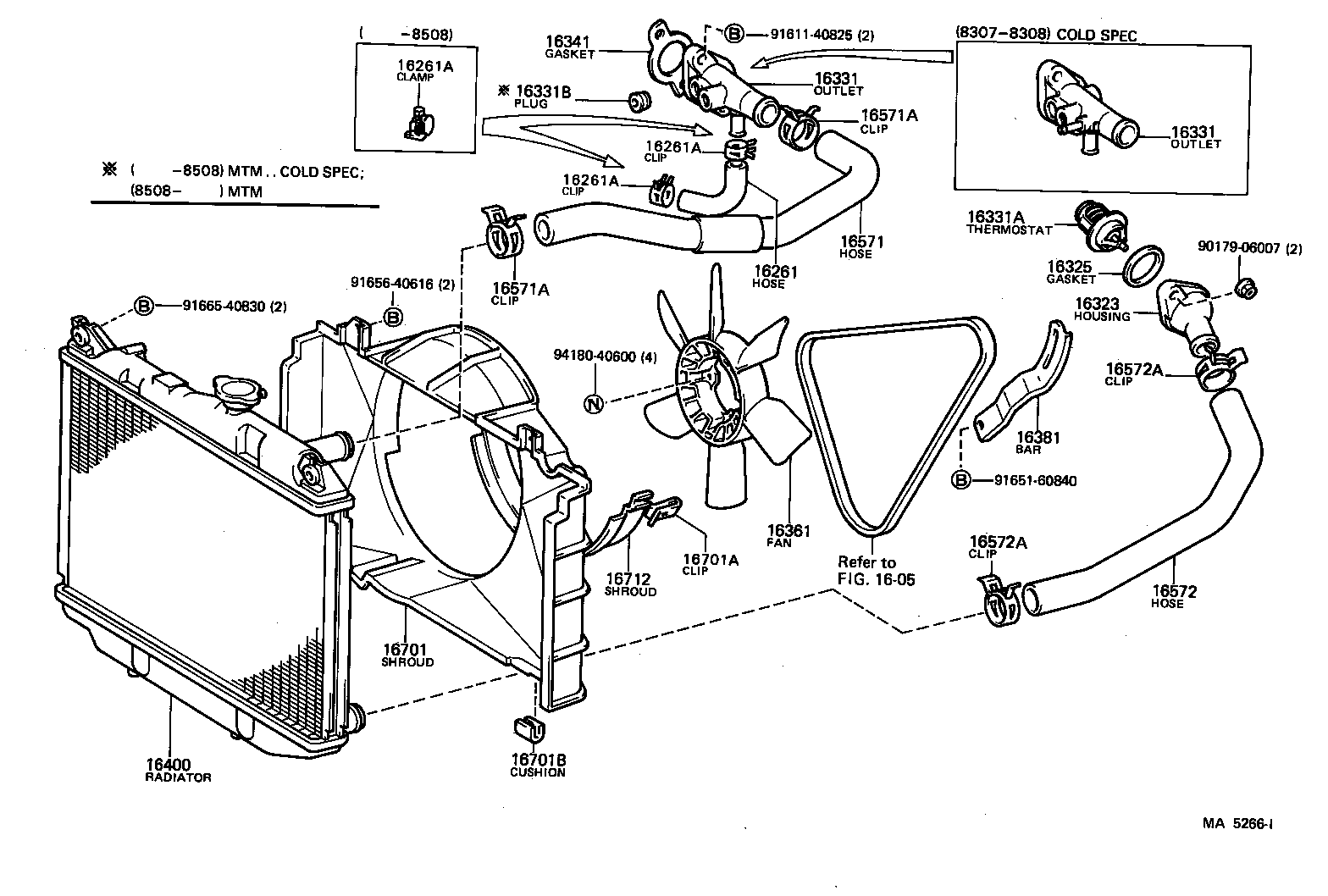

ILLUST NO. 1 OF 3(8201-8712)1SU

Click highlighted areas on diagram

diagram 1605 16261 16261A 16261A 16261A 16323 16325 16331 16331 16331A 16331B 16341 16361 16381 16400 16571 16571A 16571A 16572 16572A 16572A 16701 16701A 16701B 16712 9017906007 9161140825 9165160840 9165640616 9166540830 9418040600
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-63010

1SU..ST140

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10250

1SU..ST140

 2
96111-10250

1SU..ST140

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10250

1SU..ST140

 2
96111-10250

1SU..ST140

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10250

1SU..ST140

 2
96111-10250

1SU..ST140

 2
16323 - HOUSING, WATER INLET
16323-63010

1SU..ST140

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

1SU..ST140

 1
16331 - OUTLET, WATER
16331-63020

1SU..ST140..4FC

 1
16331-63030

1SU..ST140

COLD SPEC

 1
16331-63030

1SU..ST140

COLD SPEC

 1
16304-63010

1SU..ST140

COLD SPEC

 1
16331 - OUTLET, WATER
16331-63020

1SU..ST140..4FC

 1
16331-63030

1SU..ST140

COLD SPEC

 1
16331-63030

1SU..ST140

COLD SPEC

 1
16304-63010

1SU..ST140

COLD SPEC

 1
16331A - THERMOSTAT
90916-03046

1SU..ST140

*WAX 82−95

 1
16341 - GASKET, WATER OUTLET
16341-63010

1SU..ST140

 1
16361 - FAN
16361-45020

1SU..ST140

 1
16381 - BAR, FAN BELT ADJUSTING
16381-63010

1SU..ST140

 1
16400 - RADIATOR ASSY
16400-63020

1SU..ST140..4FC

W/CAP

 1
16571 - HOSE, RADIATOR, INLET
16571-63010

1SU..ST140

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34001

1SU..ST140

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34001

1SU..ST140

 2
16572 - HOSE, RADIATOR, OUTLET
16572-63010

1SU..ST140

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34001

1SU..ST140

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34001

1SU..ST140

 2
16701 - SHROUD SUB-ASSY, FAN
16711-63010

1SU..ST140

 1
16701A - CLIP(FOR FAN SHROUD)
90468-06013

1SU..ST140

W/COOLER

 2
16701B - CUSHION, FAN SHROUD
90541-11002

1SU..ST140

 2
16712 - SHROUD, FAN, NO.2
16712-54050

1SU..ST140

W/COOLER

 1
Common parts
90179-06007
91611-40825
91651-60840
91656-40616
91665-40830
94180-40600
Linked diagrams
1605
