ST140-TSPES (1982)
Toyota Corona
Production
Jan 1982
-
Aug 1985
Engine
1SU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8201-8712)1SU

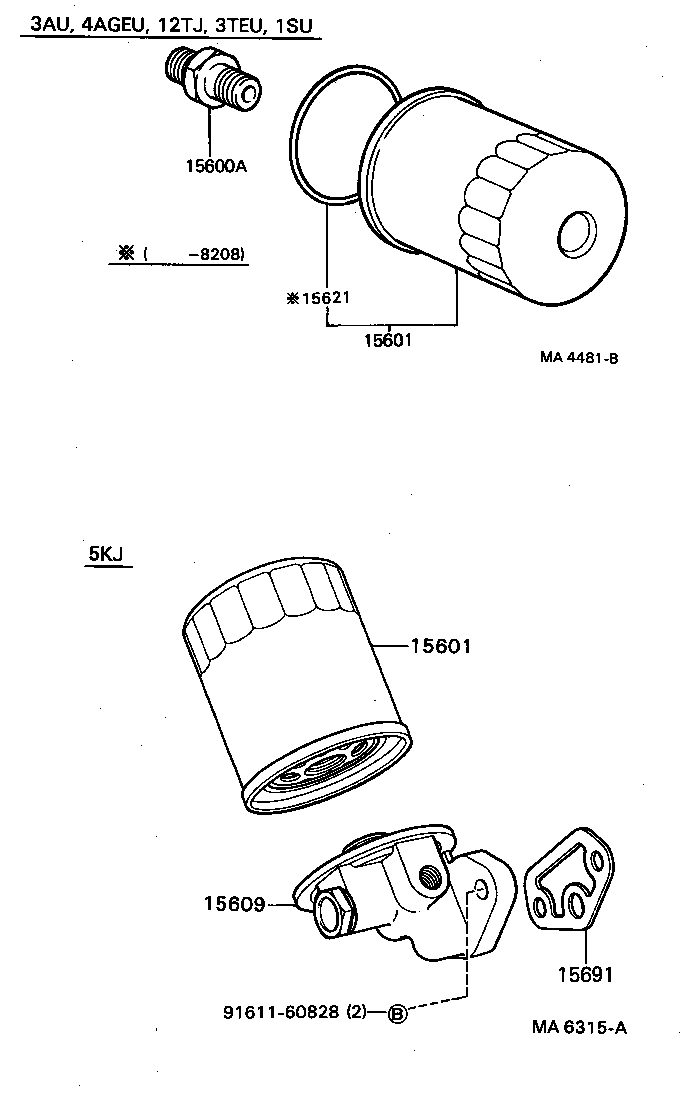

Click highlighted areas on diagram
MA6315A,MA4481B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 90404-19002 |
1SU..ST140 |
1 | ||
| 90404-19002 |
1SU..ST140 |
1 | ||
| 90404-19002 |
1SU..ST140 |
1 | ||
| 90404-19002 |
1SU..ST140 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15601-13010 |
1SU..ST140 |
1 | ||
| 15601-13010 |
1SU..ST140 |
1 | ||
| 15601-13010 |
1SU..ST140 |
1 | ||
| 15601-13010 |
1SU..ST140 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15601-13010 |
1SU..ST140 |
1 | ||
| 15601-13010 |
1SU..ST140 |
1 | ||
| 15601-13010 |
1SU..ST140 |
1 | ||
| 15601-13010 |
1SU..ST140 |
1 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 15621-22010 |
1SU..ST140 |
1 | ||
| 15621-22010 |
1SU..ST140 |
1 | ||
| 15621-22010 |
1SU..ST140 |
1 | ||
| 15621-22010 |
1SU..ST140 |
1 | ||
| Common parts | ||||
| 91611-60828 | ||||
