ST140-TSPES (1982)

Toyota Corona

Production Jan 1982 - Aug 1985
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)1SU

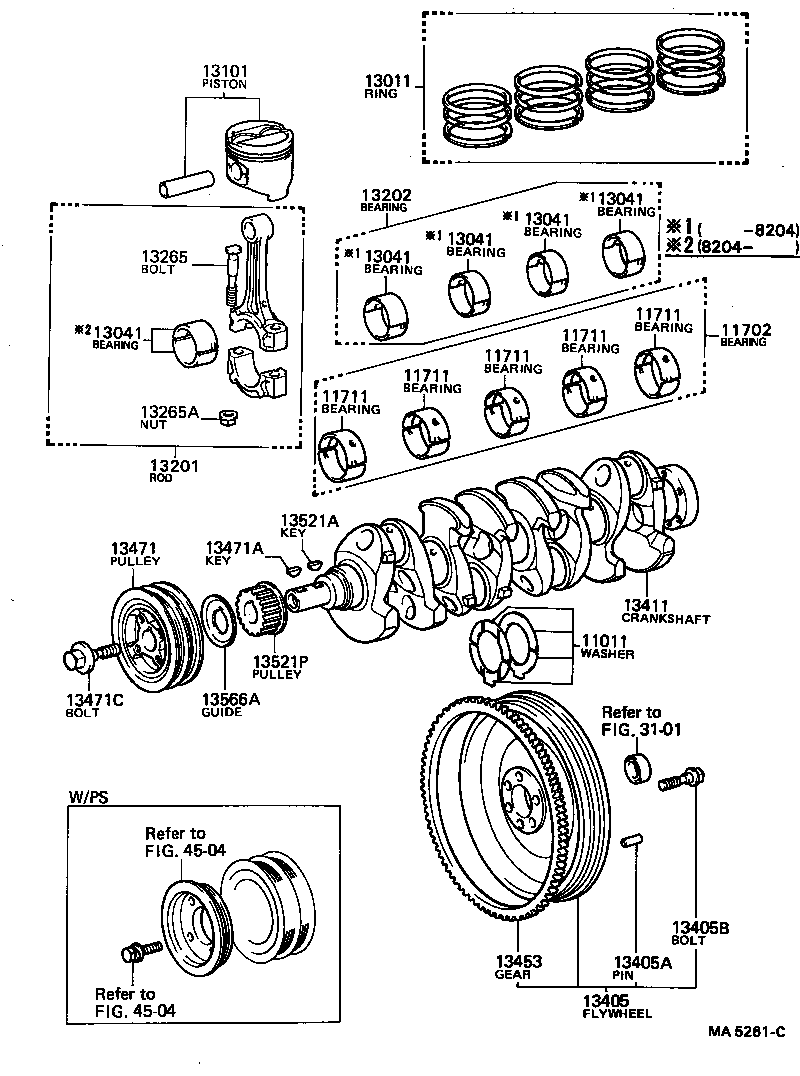

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13101 13201 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471A 13471C 13521A 13521P 13566A 3101 4504 4504
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-25010

1SU..ST140

STD,STD

 1
11711 - BEARING, CRANKSHAFT
11701-6302002

1SU..ST140

NO.3 MARK"2",MARK 2

 1
11701-7001202

1SU..ST140

NO.1,2,4,5 MARK"2",MARK 2

 4
11701-7001203

1SU..ST140

NO.1,2,4,5 MARK"3",MARK 3

 4
11701-6302003

1SU..ST140

NO.3 MARK"3",MARK 3

 1
11701-7001201

1SU..ST140

NO.1,2,4,5 MARK"1",MARK 1

 4
11701-6302001

1SU..ST140

NO.3 MARK"1",MARK 1

 1
11711 - BEARING, CRANKSHAFT
11701-6302002

1SU..ST140

NO.3 MARK"2",MARK 2

 1
11701-7001202

1SU..ST140

NO.1,2,4,5 MARK"2",MARK 2

 4
11701-7001203

1SU..ST140

NO.1,2,4,5 MARK"3",MARK 3

 4
11701-6302003

1SU..ST140

NO.3 MARK"3",MARK 3

 1
11701-7001201

1SU..ST140

NO.1,2,4,5 MARK"1",MARK 1

 4
11701-6302001

1SU..ST140

NO.3 MARK"1",MARK 1

 1
11711 - BEARING, CRANKSHAFT
11701-6302002

1SU..ST140

NO.3 MARK"2",MARK 2

 1
11701-7001202

1SU..ST140

NO.1,2,4,5 MARK"2",MARK 2

 4
11701-7001203

1SU..ST140

NO.1,2,4,5 MARK"3",MARK 3

 4
11701-6302003

1SU..ST140

NO.3 MARK"3",MARK 3

 1
11701-7001201

1SU..ST140

NO.1,2,4,5 MARK"1",MARK 1

 4
11701-6302001

1SU..ST140

NO.3 MARK"1",MARK 1

 1
11711 - BEARING, CRANKSHAFT
11701-6302002

1SU..ST140

NO.3 MARK"2",MARK 2

 1
11701-7001202

1SU..ST140

NO.1,2,4,5 MARK"2",MARK 2

 4
11701-7001203

1SU..ST140

NO.1,2,4,5 MARK"3",MARK 3

 4
11701-6302003

1SU..ST140

NO.3 MARK"3",MARK 3

 1
11701-7001201

1SU..ST140

NO.1,2,4,5 MARK"1",MARK 1

 4
11701-6302001

1SU..ST140

NO.3 MARK"1",MARK 1

 1
11711 - BEARING, CRANKSHAFT
11701-6302002

1SU..ST140

NO.3 MARK"2",MARK 2

 1
11701-7001202

1SU..ST140

NO.1,2,4,5 MARK"2",MARK 2

 4
11701-7001203

1SU..ST140

NO.1,2,4,5 MARK"3",MARK 3

 4
11701-6302003

1SU..ST140

NO.3 MARK"3",MARK 3

 1
11701-7001201

1SU..ST140

NO.1,2,4,5 MARK"1",MARK 1

 4
11701-6302001

1SU..ST140

NO.3 MARK"1",MARK 1

 1
13011 - RING SET, PISTON
13011-63010

1SU..ST140

STD,STD

 1
13013-63010

1SU..ST140

O/S 0.50,O/S 0.50

 1
13015-63010

1SU..ST140

O/S 1.00,O/S 1.00

 1
13014-63010

1SU..ST140

O/S 0.75,O/S 0.75

 1
13041 - BEARING, CONNECTING ROD
13041-6302002

1SU..ST140

MARK"2",MARK 2

 4
13041-6302003

1SU..ST140

MARK"3",MARK 3

 4
13041-6302001

1SU..ST140

MARK"1",MARK 1

 4
13041 - BEARING, CONNECTING ROD
13041-6302002

1SU..ST140

MARK"2",MARK 2

 4
13041-6302003

1SU..ST140

MARK"3",MARK 3

 4
13041-6302001

1SU..ST140

MARK"1",MARK 1

 4
13041 - BEARING, CONNECTING ROD
13041-6302002

1SU..ST140

MARK"2",MARK 2

 4
13041-6302003

1SU..ST140

MARK"3",MARK 3

 4
13041-6302001

1SU..ST140

MARK"1",MARK 1

 4
13041 - BEARING, CONNECTING ROD
13041-6302002

1SU..ST140

MARK"2",MARK 2

 4
13041-6302003

1SU..ST140

MARK"3",MARK 3

 4
13041-6302001

1SU..ST140

MARK"1",MARK 1

 4
13041 - BEARING, CONNECTING ROD
13041-6302002

1SU..ST140

MARK"2",MARK 2

 4
13041-6302003

1SU..ST140

MARK"3",MARK 3

 4
13041-6302001

1SU..ST140

MARK"1",MARK 1

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-63010

1SU..ST140

STD

 4
13105-63010

1SU..ST140

O/S 1.00

 4
13104-63010

1SU..ST140

O/S 0.75

 4
13103-63010

1SU..ST140

O/S 0.50

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-69015

1SU..ST140

 4
13202 - BEARING SET, CONNECTING ROD
13204-63020

1SU..ST140

U/S 0.25,U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-63010

1SU..ST140

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-09001

1SU..ST140

 8
13411 - CRANKSHAFT
13411-63010

1SU..ST140

 1
13471 - PULLEY, CRANKSHAFT
13408-63010

1SU..ST140

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-10519

1SU..ST140

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-14011

1SU..ST140

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-10519

1SU..ST140

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-63010

1SU..ST140

 1
13566A - GUIDE, TIMING BELT
13567-63010

1SU..ST140

 1
Linked diagrams
3101
4504
