ST140-TSMNS (1982)

Toyota Corona

Production Jan 1982 - Aug 1985
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

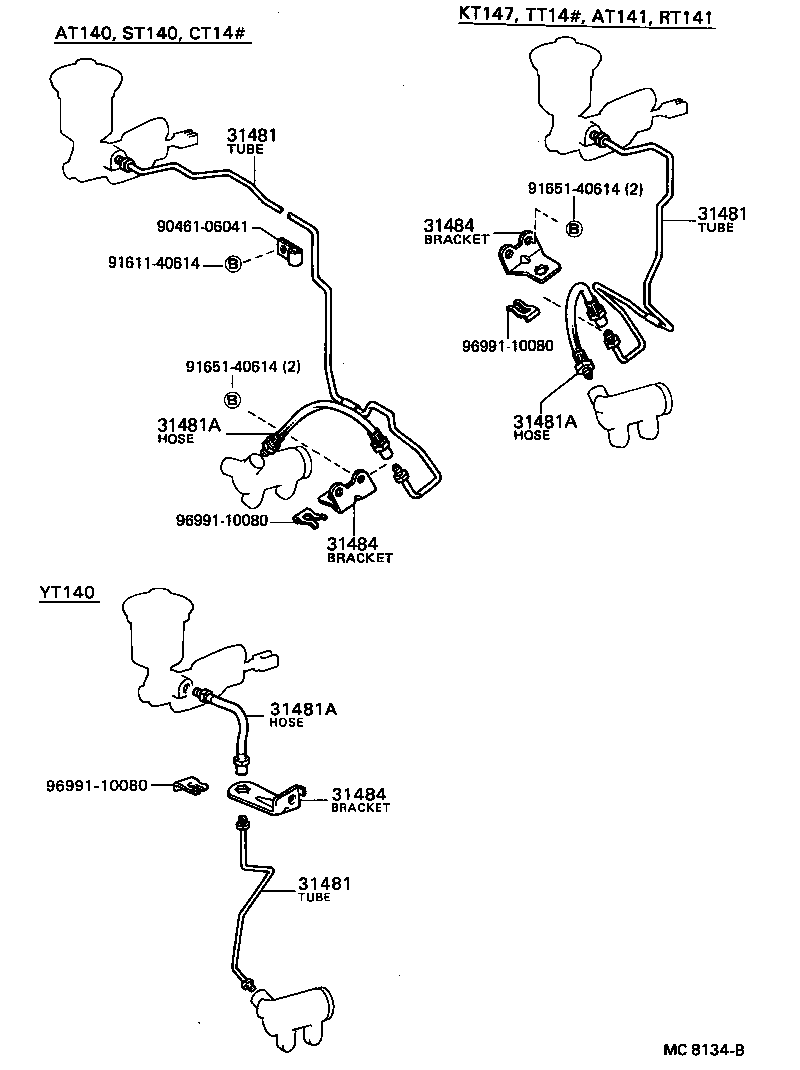

ILLUST NO. 2 OF 2(8201- )MTM

Click highlighted areas on diagram

diagram 31481 31481 31481 31481A 31481A 31481A 31484 31484 31484 9046106041 9161140614 9165140614 9165140614 9699110080 9699110080 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14081

AT140,ST140..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14081

AT140,ST140..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14081

AT140,ST140..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96940-33004

AT140,CT14#,ST140..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96940-33004

AT140,CT14#,ST140..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96940-33004

AT140,CT14#,ST140..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-14050

AT14#,CT14#,KT147,RT141,ST140,TT14#..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-14050

AT14#,CT14#,KT147,RT141,ST140,TT14#..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-14050

AT14#,CT14#,KT147,RT141,ST140,TT14#..MTM

 1
Common parts
90461-06041
91611-40614
91651-40614
96991-10080

ILLUST NO. 1 OF 2(8201-8310)5F..SX ; (8201-9111)AT140,CT14#,KT147,RT141,ST140,TT147..MTM ; (8209-861

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31321 31324 31324A 31453A 31453B 9020608001 9046816142 9165140816 9411051000 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-14050

AT140,CT14#,KT147,RT141,ST140,TT147,YT140..4F,5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14002

AT140,CT14#,KT147,RT141,ST140,TT147,YT140..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

AT140,CT14#,KT147,RT141,ST140,TT147,YT140..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AT140,CT14#,KT147,RT141,ST140,TT147,YT140..MTM

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55107-24010

AT140,CT14#,RT141,ST140,TT147,YT140..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

AT140,CT14#,RT141,ST140,TT14#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10021

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

AT140,RT141,ST140,TT14#..MTM

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
Common parts
90206-08001
90468-16142
91651-40816
94110-51000
94120-41000
94512-01000
