ST140-TSMES (1982)

Toyota Corona

Production Jan 1982 - Aug 1985
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)HT

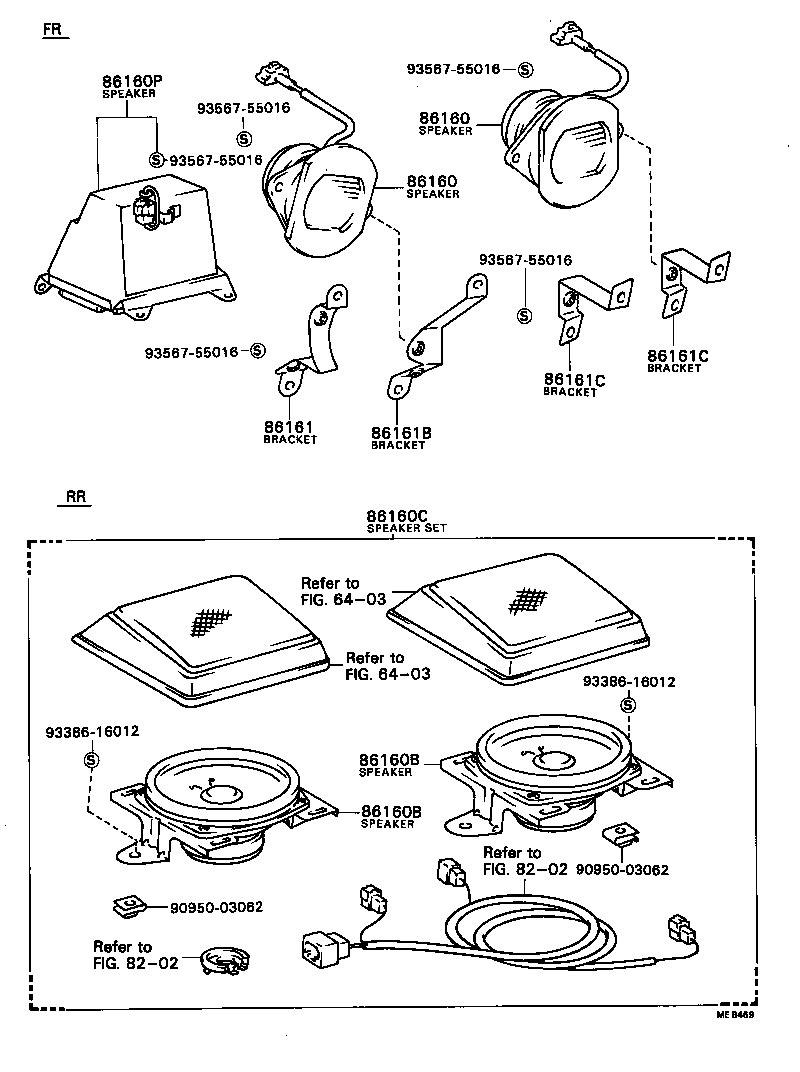

Click highlighted areas on diagram

diagram 6403 6403 8202 8202 86160 86160 86160B 86160B 86160C 86160P 86161 86161B 86161C 86161C 9095003062 9095003062 9338616012 9338616012 9356755016 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-20200

AT141,RT141,ST140,TT142..HT

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20200

AT141,RT141,ST140,TT142..HT

 2
86160B - SPEAKER ASSY, REAR
86160-91D01

AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT)

 2
86160B - SPEAKER ASSY, REAR
86160-91D01

AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT)

 2
86160C - SPEAKER SET, REAR
86160-29415

AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT)

SPEAKER GRILLE:BLACK

 1
86160-29435

AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT)

SPEAKER GRILLE:BLUE

 1
86160-29425

RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT)

SPEAKER GRILLE:SADDLE BROWN

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-29375

AT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT)

WOOFER

 1
86161 - BRACKET, SPEAKER, FRONT NO.1
86219-20020

AT141,RT141,ST140,TT142..HT

 1
86161B - BRACKET, SPEAKER, FRONT NO.2
86219-20030

AT141,RT141,ST140,TT142..HT

 1
86161C - BRACKET, SPEAKER, FRONT NO.3
86219-20040

AT141,RT141,ST140,TT142..HT

 2
86161C - BRACKET, SPEAKER, FRONT NO.3
86219-20040

AT141,RT141,ST140,TT142..HT

 2
Common parts
90950-03062
93386-16012
93567-55016
Linked diagrams
6403
8202
