ST140-TSMES (1982)
Toyota Corona

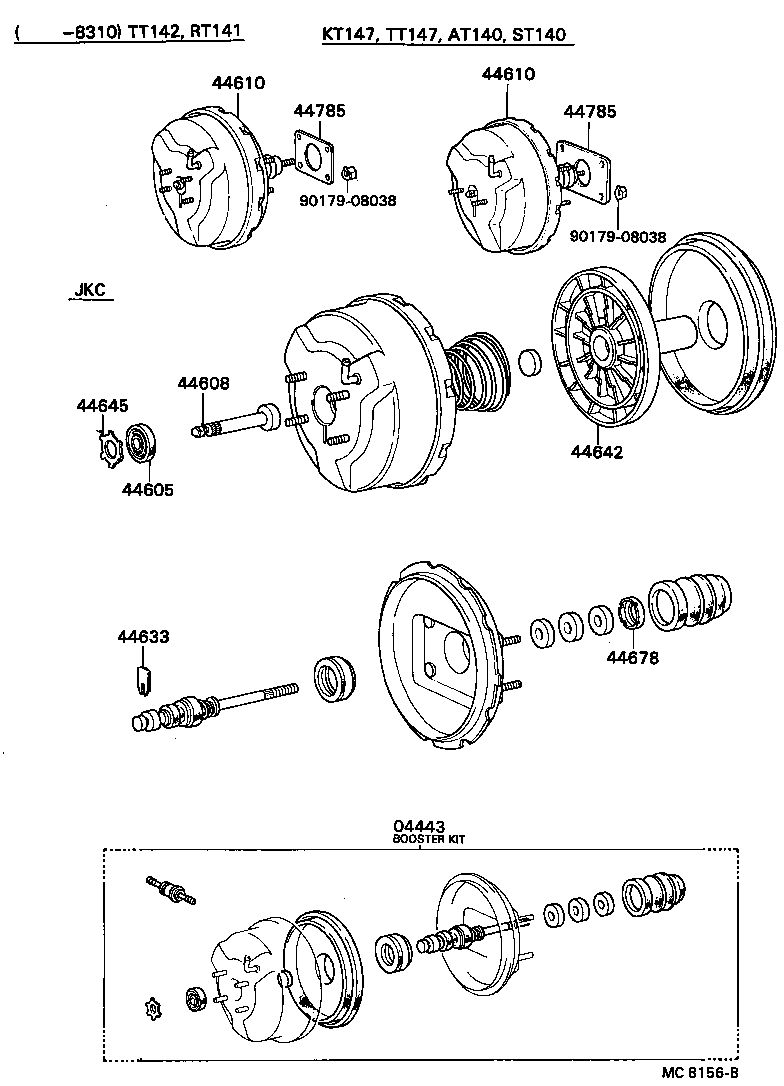

ILLUST NO. 1 OF 2(8201-8310)AT140,RT141,ST140,TT14# ; (8310-8712)AT140,KT147,ST140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-14330 |
AT140,KT147,ST140,TT147 JKC |
1 | ||
| 04443-14320 |
AT140,KT147,ST140,TT147,YT140 FR DRUM BRAKE,AISIN |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
AT14#,KT147,RT141,ST140,TT14# |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
AT140,CT14#,KT147,ST140,TT147,YT140 AISIN |
1 | ||
| 44608-14040 |
AT140,KT147,ST140,TT147 JKC |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22330 |
AT140,KT147,ST140,TT147 AISIN |
1 | ||
| 44610-14510 |
AT140,KT147,ST140,TT147 JKC |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22330 |
AT140,KT147,ST140,TT147 AISIN |
1 | ||
| 44610-14510 |
AT140,KT147,ST140,TT147 JKC |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
AT140,RT141,ST140,TT14# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20140 |
AT140,KT147,ST140,TT147 JKC |
1 | ||
| 44642-14170 |
AT140,CT14#,KT147,ST140,TT147,YT140 AISIN |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
AT14#,KT147,RT141,ST140,TT14# |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
AT140,RT141,ST140,TT14# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8201-8612)AT140,CT14#,KT147,ST140,TT147,YT140 ;(8612-8712)AT140,CT147,KT147,ST140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-14330 |
AT140,KT147,ST140,TT147 JKC |
1 | ||
| 04443-14320 |
AT140,KT147,ST140,TT147,YT140 FR DRUM BRAKE,AISIN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
AT140,CT14#,KT147,ST140,TT147,YT140 AISIN |
1 | ||
| 44608-14040 |
AT140,KT147,ST140,TT147 JKC |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22330 |
AT140,KT147,ST140,TT147 AISIN |
1 | ||
| 44610-14510 |
AT140,KT147,ST140,TT147 JKC |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22330 |
AT140,KT147,ST140,TT147 AISIN |
1 | ||
| 44610-14510 |
AT140,KT147,ST140,TT147 JKC |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20140 |
AT140,KT147,ST140,TT147 JKC |
1 | ||
| 44642-14170 |
AT140,CT14#,KT147,ST140,TT147,YT140 AISIN |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-35100 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-22330 |
AT140,CT14#,KT147,ST140,TT147,YT140 FR DISC BRAKE |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20150 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
AT140,CT14#,KT147,ST140,TT147,YT140 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||

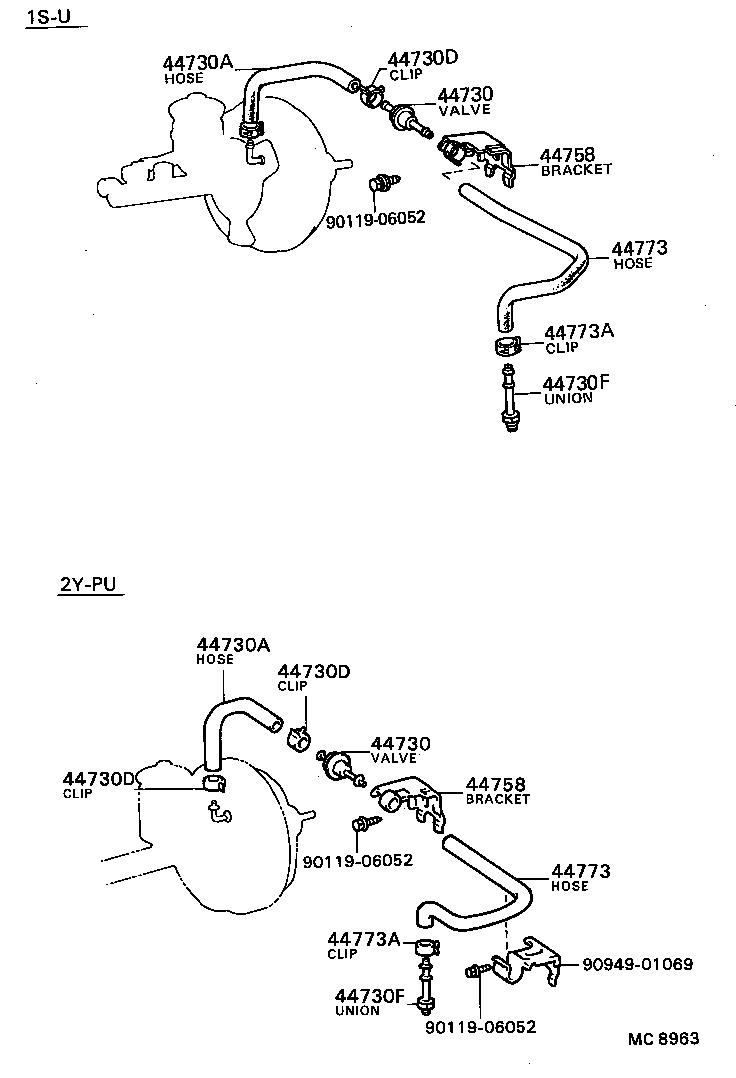

ILLUST NO. 2 OF 2(8201- )ST140,YT140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-14120 |
AT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-14120 |
AT14#,KT147,RT141,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
ST140 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
ST140 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-14100 |
AT140,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-14100 |
AT140,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-14330 |
ST140 |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-14330 |
ST140 |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90949-01069 | ||||
