ST140-TSKNS (1982)
Toyota Corona

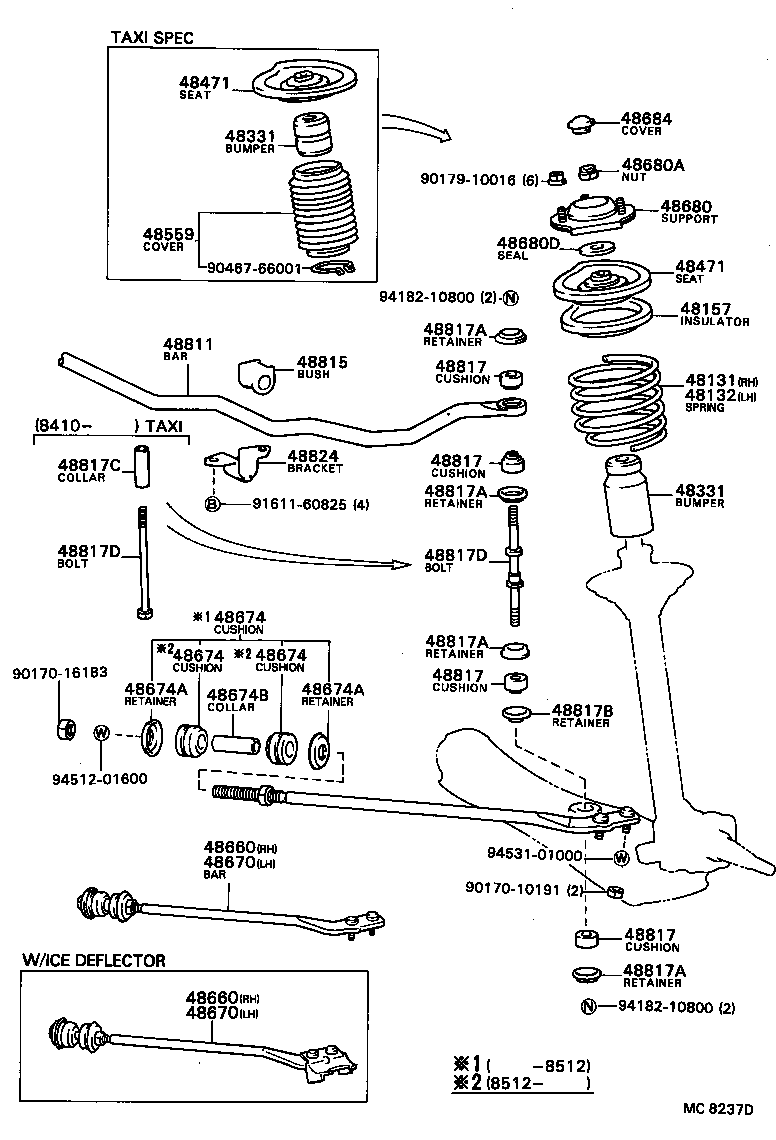

ILLUST NO. 2 OF 2(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-1B130 |
ST140..GX |
1 | ||
| 48131-1B150 |
ST140..HT..GX W/POWER STEERING & SUN ROOF |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-1B090 |
ST140..GX |
1 | ||
| 48131-1B110 |
ST140..HT..GX W/POWER STEERING & SUN ROOF |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-14010 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-14020 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-14020 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 48471 - SEAT, FRONT SPRING, UPPER | ||||
| 48044-14030 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 48471 - SEAT, FRONT SPRING, UPPER | ||||
| 48044-14030 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# |
2 | ||
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48660-19135 |
CT140..EXS,GX;AT140,RT141,ST140,TT142 |
1 | ||
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48660-19135 |
CT140..EXS,GX;AT140,RT141,ST140,TT142 |
1 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48670-19115 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48670-19115 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-19058 |
CT140..EXS,GX;AT14#,RT141,ST140,TT142 LH |
1 | ||
| 48674-19085 |
CT140..EXS,GX;AT140,RT141,ST140,TT142 RH |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-19058 |
CT140..EXS,GX;AT14#,RT141,ST140,TT142 LH |
1 | ||
| 48674-19085 |
CT140..EXS,GX;AT140,RT141,ST140,TT142 RH |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-19058 |
CT140..EXS,GX;AT14#,RT141,ST140,TT142 LH |
1 | ||
| 48674-19085 |
CT140..EXS,GX;AT140,RT141,ST140,TT142 RH |
1 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02036 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
4 | ||
| 48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION) | ||||
| 90948-02036 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
4 | ||
| 48674B - COLLAR(FOR STRUT BAR CUSHION) | ||||
| 90387-16108 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48609-14040 |
CT140..EXS,GX;AT14#,CT147,KT147,RT141,ST140,TT14# MARUYASU |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-12030 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
2 | ||
| 48684-12020 |
AT140,CT14#,RT141,ST140,TT14# |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-14220 |
ST140,TT142..GX,SX OD=21 |
1 | ||
| 48811-14240 |
AT140,ST140,TT142..EXA,EXS,GX,GXA,SX W/POWER STEERING,OD=23 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-14140 |
CT140,ST140,TT142..GX,SX ID=21 |
2 | ||
| 48815-24010 |
AT140,ST140,TT142..EXA,EXS,GX,GXA,SX W/POWER STEERING,ID=23 |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-20020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-20020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-20020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-20020 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02037 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 48819-20010 |
AT14#,CT147,KT147,ST140,TT14# |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 48819-20010 |
AT14#,CT147,KT147,ST140,TT14# |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-24010 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90170-16183 | ||||
| 90179-10016 | ||||
| 90467-66001 | ||||
| 91611-60825 | ||||
| 94182-10800 | ||||
| 94512-01600 | ||||
| 94531-01000 | ||||

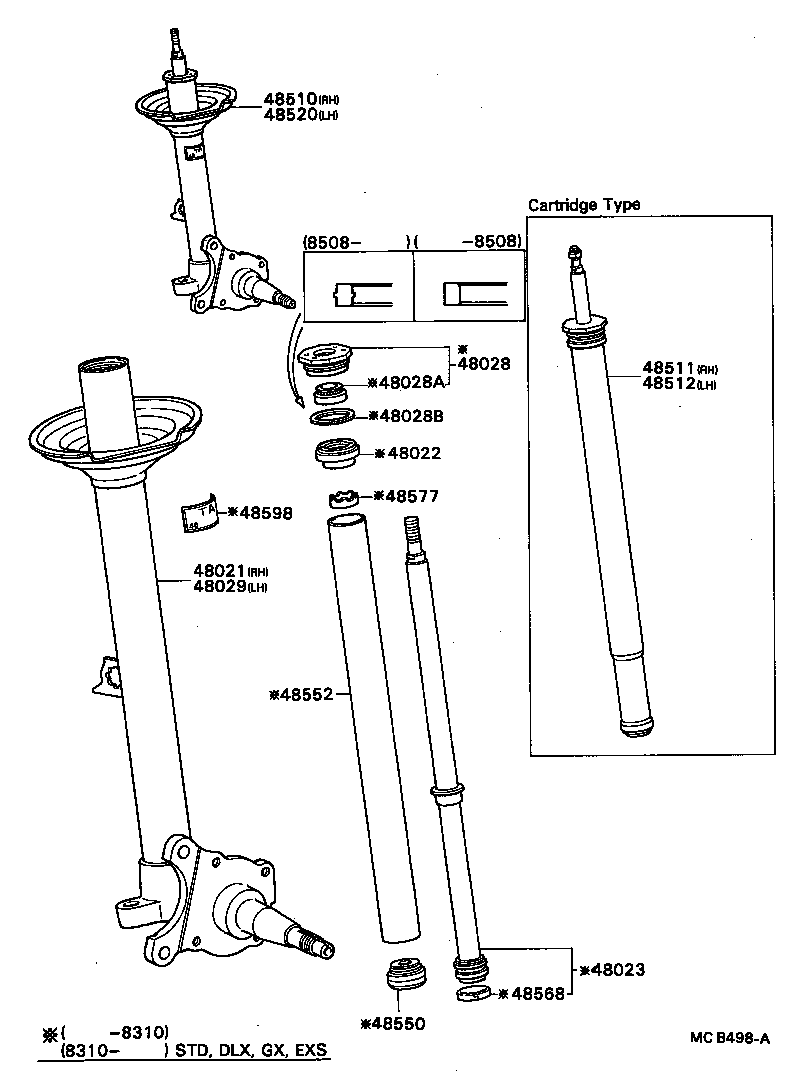

ILLUST NO. 1 OF 2(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48021 - SHELL SUB-ASSY, W/STEERING KNUCKLE, RH | ||||
| 48021-14060 |
CT140..EXS,GX;AT140,CT147,KT147,ST140,TT147 |
1 | ||
| 48022 - GUIDE SUB-ASSY, SHOCK ABSORBER ROD | ||||
| 48022-14010 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14# |
2 | ||
| 48023 - ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT) | ||||
| 48023-14100 |
AT140,ST140;CT140..EXS,GX |
2 | ||
| 48028 - NUT SUB-ASSY, SHOCK ABSORBER RING | ||||
| 48028-14011 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14# |
2 | ||
| 48028A - SEAL, OIL(FOR SHOCK ABSORBER RING NUT) | ||||
| 90316-22001 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14# |
2 | ||
| 48028B - GASKET(FOR SHOCK ABSORBER RING NUT) | ||||
| 90430-43206 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14# |
2 | ||
| 48029 - SHELL SUB-ASSY, W/STEERING KNUCKLE, LH | ||||
| 48029-14010 |
CT140..EXS,GX;AT140,CT147,KT147,ST140,TT147 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-14160 |
AT140,ST140;CT140..EXS,GX |
1 | ||
| 48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE) | ||||
| 48511-14150 |
AT140,ST140;CT140..EXS,GX |
1 | ||
| 48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE) | ||||
| 48511-14150 |
AT140,ST140;CT140..EXS,GX |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-14020 |
AT140,ST140;CT140..EXS,GX |
1 | ||
| 48550 - VALVE ASSY, SHOCK ABSORBER BASE | ||||
| 48550-14060 |
CT140..EXS,GX;AT140,ST140,TT142..DLX,EXA,EXS,GX,GXA,STD,SX |
2 | ||
| 48552 - CYLINDER, SHOCK ABSORBER(FOR FRONT) | ||||
| 48552-14010 |
CT140..EXS,GX;AT140,CT147,KT147,ST140,TT147 |
2 | ||
| 48568 - RING, SHOCK ABSORBER PISTON | ||||
| 48568-22020 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14# |
2 | ||
| 48568-22021 |
CT140..EXS,GX;AT140,CT147,ST140,TT14# |
2 | ||
| 48577 - STOPPER, SHOCK ABSORBER REBOUND | ||||
| 48579-14011 |
CT140..EXS,GX;AT140,CT147,RT141,ST140,TT14# |
2 | ||
| 48598 - PLATE, ABSORBER NAME | ||||
| 48598-14290 |
AT140,ST140;CT140..EXS,GX RH |
1 | ||
| 48598-14300 |
AT140,ST140;CT140..EXS,GX LH |
1 | ||
