ST140-TEPMS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

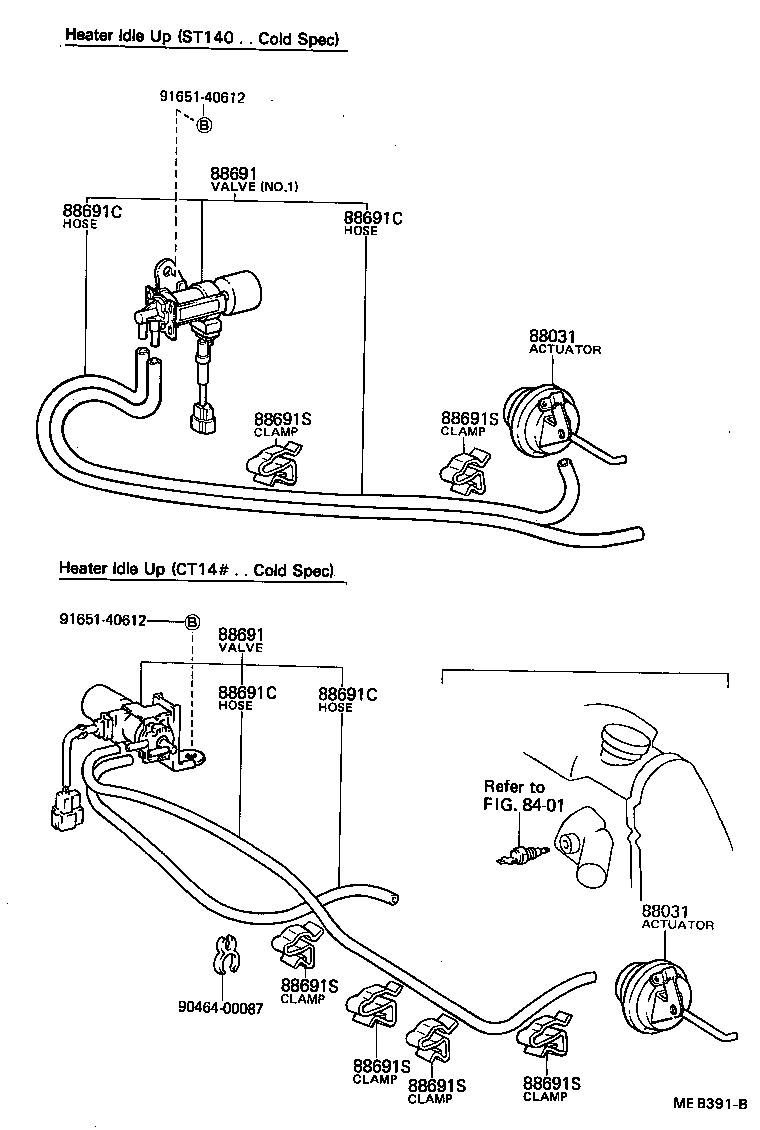

(8201-9111)CT14#,ST140

Click highlighted areas on diagram

diagram 8401 88031 88031 88691 88691 88691C 88691C 88691C 88691C 88691S 88691S 88691S 88691S 88691S 88691S 9046400087 9165140612 9165140612
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-14010

ST140

 1
88031 - ACTUATOR SET, IDLE-UP
88031-14010

ST140

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14690

ST140

NO.2

 1
88690-14620

ST140

NO.1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14690

ST140

NO.2

 1
88690-14620

ST140

NO.1

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

ST140

*H,L=300,ﾏｰｸ=#*

 1
95411-10095

ST140

*H,L=950,ﾏｰｸ=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

ST140

*H,L=300,ﾏｰｸ=#*

 1
95411-10095

ST140

*H,L=950,ﾏｰｸ=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

ST140

*H,L=300,ﾏｰｸ=#*

 1
95411-10095

ST140

*H,L=950,ﾏｰｸ=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

ST140

*H,L=300,ﾏｰｸ=#*

 1
95411-10095

ST140

*H,L=950,ﾏｰｸ=#0

 1
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90468-04021

CT14#,ST140

 4
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90468-04021

CT14#,ST140

 4
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90468-04021

CT14#,ST140

 4
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90468-04021

CT14#,ST140

 4
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90468-04021

CT14#,ST140

 4
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90468-04021

CT14#,ST140

 4
Common parts
90464-00087
91651-40612
Linked diagrams
8401

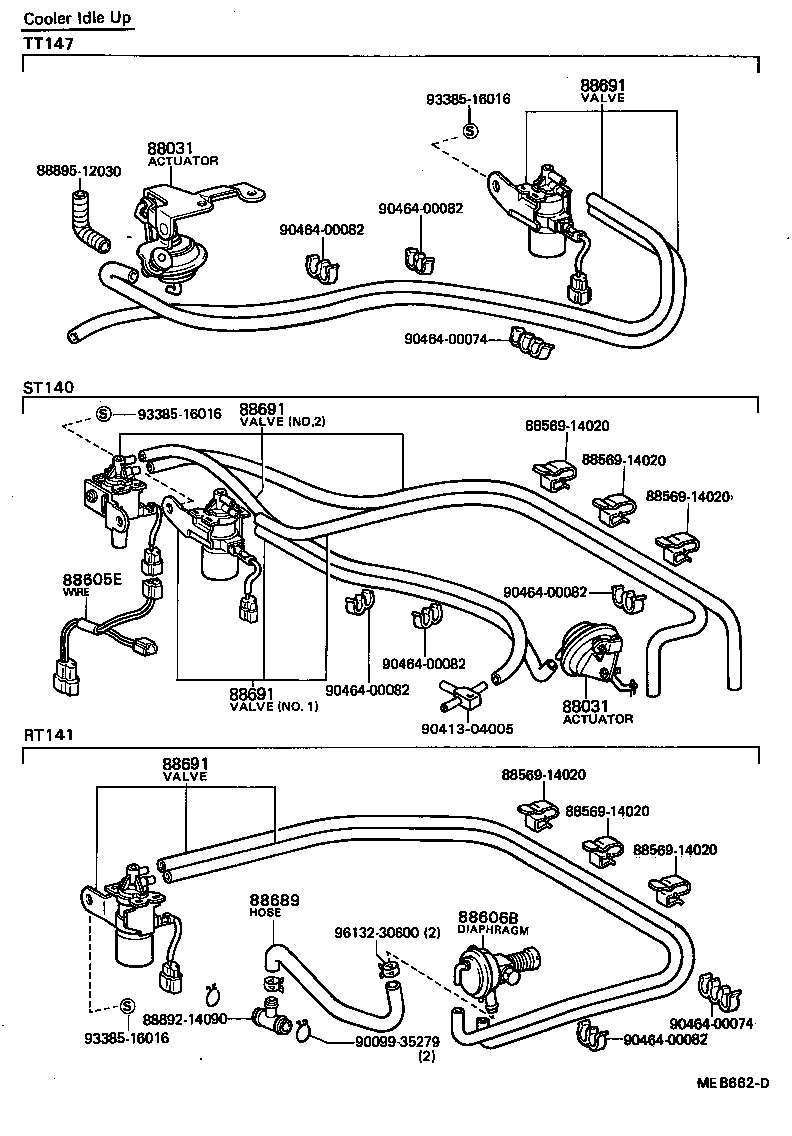

(8201-8712)RT141,ST140,TT147

Click highlighted areas on diagram

diagram 88031 88031 8856914020 8856914020 8856914020 8856914020 8856914020 8856914020 88605E 88606B 88689 88691 88691 88691 88691 8889214090 8889512030 9009935279 9041304005 9046400074 9046400074 9046400082 9046400082 9046400082 9046400082 9046400082 9046400082 9338516016 9338516016 9338516016 9613230600
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-14010

ST140

 1
88031 - ACTUATOR SET, IDLE-UP
88031-14010

ST140

 1
88605E - WIRE, AIR CONDITIONER, NO.1
88605-14470

ST140

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14690

ST140

NO.2

 1
88690-14620

ST140

NO.1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14690

ST140

NO.2

 1
88690-14620

ST140

NO.1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14690

ST140

NO.2

 1
88690-14620

ST140

NO.1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-14690

ST140

NO.2

 1
88690-14620

ST140

NO.1

 1
Common parts
88569-14020
88892-14090
88895-12030
90099-35279
90413-04005
90464-00074
90464-00082
93385-16016
96132-30600

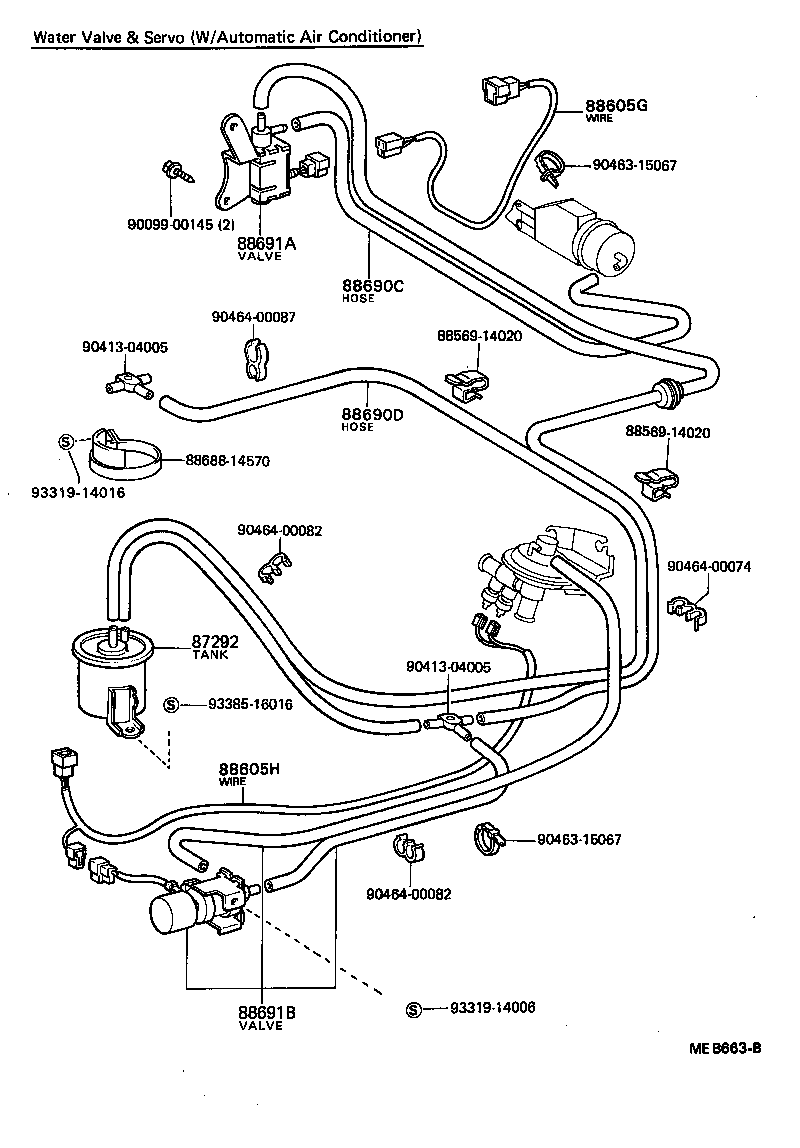

(8201-8508)

Click highlighted areas on diagram

diagram 87292 8856914020 8856914020 88605G 88605H 8868814570 88690C 88690D 88691A 88691B 9009900145 9041304005 9041304005 9046315067 9046315067 9046400074 9046400082 9046400082 9046400087 9331914006 9331914016 9338516016
Part # Description Qty Price
87292 - TANK, VACUUM
88683-14040

CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX

W/*AAC

 1
88605G - WIRE, AIR CONDITIONER, NO.2
88605-14460

AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX

W/*AAC

 1
88605H - WIRE, AIR CONDITIONER, NO.3
88605-14490

CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX

W/*AAC

 1
88691A - VALVE, MAGNET (FOR BLOWER CHANGING-OVER DEVICE)
88690-14760

AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX

W/*AAC

 1
88691B - VALVE, MAGNET (FOR WATER VALVE)
88690-14670

CT140,RT141,ST140,TT142..EXA,EXS,GT,GXA,SX

W/*AAC

 1
Common parts
88569-14020
88688-14570
90099-00145
90413-04005
90463-15067
90464-00074
90464-00082
90464-00087
93319-14006
93319-14016
93385-16016
