ST140-TEPMS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 6(8201-9111)AT140,CT14#,KT147,ST140,TT147

Click highlighted areas on diagram

diagram 82001 82001 82001 82001 82001 82011 82031 82111 82122 82123 82123 82123 82125 82131 82141 82210C 82210D 82210E 82210E 82210E 82219 82221 82223 82233 82233 82241C 82241C 82620 82670 82821A 9011906005 9011906005 9011906005 9011906053 9011906053 9011906053 9017908146 9161160610 9161160616 9161160616 9165140612 9165941218
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07200

AT14#,RT141,ST140,TT14#,YT140

L=350,ENGINE-DASH PANEL

 1
90980-07196

AT141,ST140,TT14#,YT140

L=350 & 100,FR SIDE MEMBER

 1
90980-07148

AT140,RT141,ST140,TT14#

L=260,TRANSMISSION-FLOOR

 2
82001 - CABLE, BOND, NO.1
90980-07200

AT14#,RT141,ST140,TT14#,YT140

L=350,ENGINE-DASH PANEL

 1
90980-07196

AT141,ST140,TT14#,YT140

L=350 & 100,FR SIDE MEMBER

 1
90980-07148

AT140,RT141,ST140,TT14#

L=260,TRANSMISSION-FLOOR

 2
82001 - CABLE, BOND, NO.1
90980-07200

AT14#,RT141,ST140,TT14#,YT140

L=350,ENGINE-DASH PANEL

 1
90980-07196

AT141,ST140,TT14#,YT140

L=350 & 100,FR SIDE MEMBER

 1
90980-07148

AT140,RT141,ST140,TT14#

L=260,TRANSMISSION-FLOOR

 2
82001 - CABLE, BOND, NO.1
90980-07200

AT14#,RT141,ST140,TT14#,YT140

L=350,ENGINE-DASH PANEL

 1
90980-07196

AT141,ST140,TT14#,YT140

L=350 & 100,FR SIDE MEMBER

 1
90980-07148

AT140,RT141,ST140,TT14#

L=260,TRANSMISSION-FLOOR

 2
82001 - CABLE, BOND, NO.1
90980-07200

AT14#,RT141,ST140,TT14#,YT140

L=350,ENGINE-DASH PANEL

 1
90980-07196

AT141,ST140,TT14#,YT140

L=350 & 100,FR SIDE MEMBER

 1
90980-07148

AT140,RT141,ST140,TT14#

L=260,TRANSMISSION-FLOOR

 2
82111 - WIRE, ENGINE ROOM MAIN
82111-20050

ST140..SED

 1
82122 - WIRE, ENGINE, NO.2
82122-14021

ST140

 1
82123 - WIRE, ENGINE, NO.3
82123-14020

ST140

NO.1

 1
82123 - WIRE, ENGINE, NO.3
82123-14020

ST140

NO.1

 1
82123 - WIRE, ENGINE, NO.3
82123-14020

ST140

NO.1

 1
82131 - WIRE, COWL
82131-20050

ST140..GXA

 1
82131-20380

ST140..SED..GX

 1
82141 - WIRE, INSTRUMENT PANEL
82141-20020

AT140,ST140..SED..(DLX,GX,STD)

 1
82141-20050

ST140..GXA

 1
82141-20030

AT140,ST140..SED..GX

GX EXTRA

 1
82210C - FUSIBLE LINK
90982-08125

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

1.0ｲｴﾛｰ,長さ=110,L=110,1.0Y

 1
82210D - FUSIBLE LINK
90982-08157

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FL 0.3 ﾋﾟﾝｸ,L=100,0.3P

 1
82241C - WIRE, RELAY
82241-20150

AT140,ST140..SED..GX

GX EXTRA

 1
82241C - WIRE, RELAY
82241-20150

AT140,ST140..SED..GX

GX EXTRA

 1
82821A - COVER, CONNECTOR
82821-12120

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

FR SPEAKER

 2
Common parts
90119-06005
90119-06053
90179-08146
91611-60610
91611-60616
91651-40612
91659-41218

ILLUST NO. 2 OF 6(8201-9111)AT14#,CT140,141,RT141,ST140,TT142

Click highlighted areas on diagram

diagram 82151 82152 82153 82154 82161 82164 82171 82181 82181A 82181B 82186 82470 9011906005 9011906005 9011906005
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-20030

CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GX,GXA,SX)

W/*PW,*SH OR BACK SONAR

 1
82161-20030

CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,GX,GXA)

W/*PW OR *SH

 1
82161-20060

CT140..GX;AT140,ST140..SED..(DLX,GX,GXA,STD)

 1
82171 - WIRE, ROOF, NO.1
82171-20010

CT140..GX;AT140,RT141,ST140,TT142..SED..(DLX,GT,GX,GXA,STD,SX)

 1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-20020

CT140..EXS,GX;AT140,RT141,ST140,TT142..SED

 1
82181A - WIRE, LUGGAGE ROOM, NO.2
82182-20010

CT140,ST140,TT142..SED..(EXA,EXS,GX,GXA,SX)

W/BACK SONAR

 1
82186 - WIRE, REAR WINDOW, NO.1
82187-20010

AT140,CT140,ST140,YT140..SED..(DLX,GX,GXA,STD)

W/RR DEFOGGER

 1
Common parts
90119-06005

ILLUST NO. 4 OF 6(8201- )

Click highlighted areas on diagram

diagram 8281712400 8281714280 8281714330 8281714350 8281714360 8281714380 8281714430 8281720080 8281720160 8281720200 8281721030 8281724040 8281724080 8281791707 9048008001 9048027001
Part # Description Qty Price
Common parts
82817-12400
82817-14280
82817-14330
82817-14350
82817-14360
82817-14380
82817-14430
82817-20080
82817-20160
82817-20200
82817-21030
82817-24040
82817-24080
82817-91707
90480-08001
90480-27001

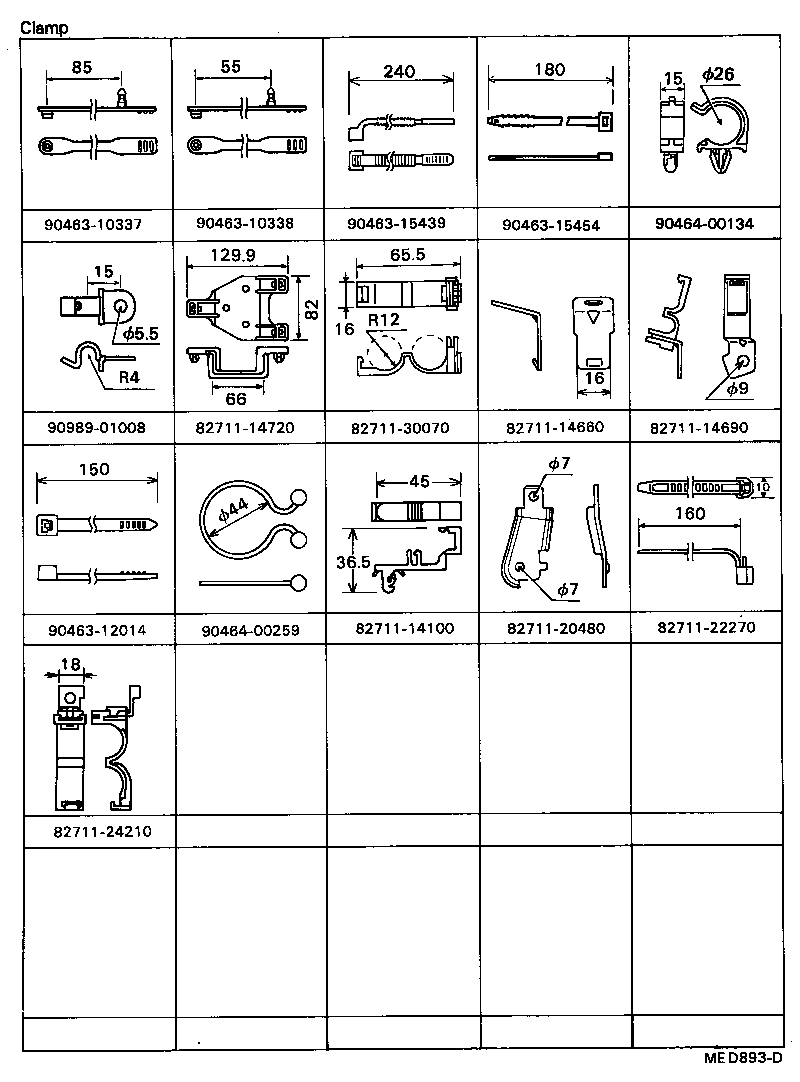

ILLUST NO. 6 OF 6(8201- )

Click highlighted areas on diagram

diagram 8271112120 8271112200 8271112250 8271112540 8271114110 8271114230 8271114260 8271114270 8271114320 8271114330 8271114340 8271114350 8271114550 8271114560 8271114570 8271114640 8271114650 8271114740 827111A210 827111A290 8271120250 8271122140 8271122150 8271122220 8271122300
Part # Description Qty Price
Common parts
82711-12120
82711-12200
82711-12250
82711-12540
82711-14110
82711-14230
82711-14260
82711-14270
82711-14320
82711-14330
82711-14340
82711-14350
82711-14550
82711-14560
82711-14570
82711-14640
82711-14650
82711-14740
82711-1A210
82711-1A290
82711-20250
82711-22140
82711-22150
82711-22220
82711-22300

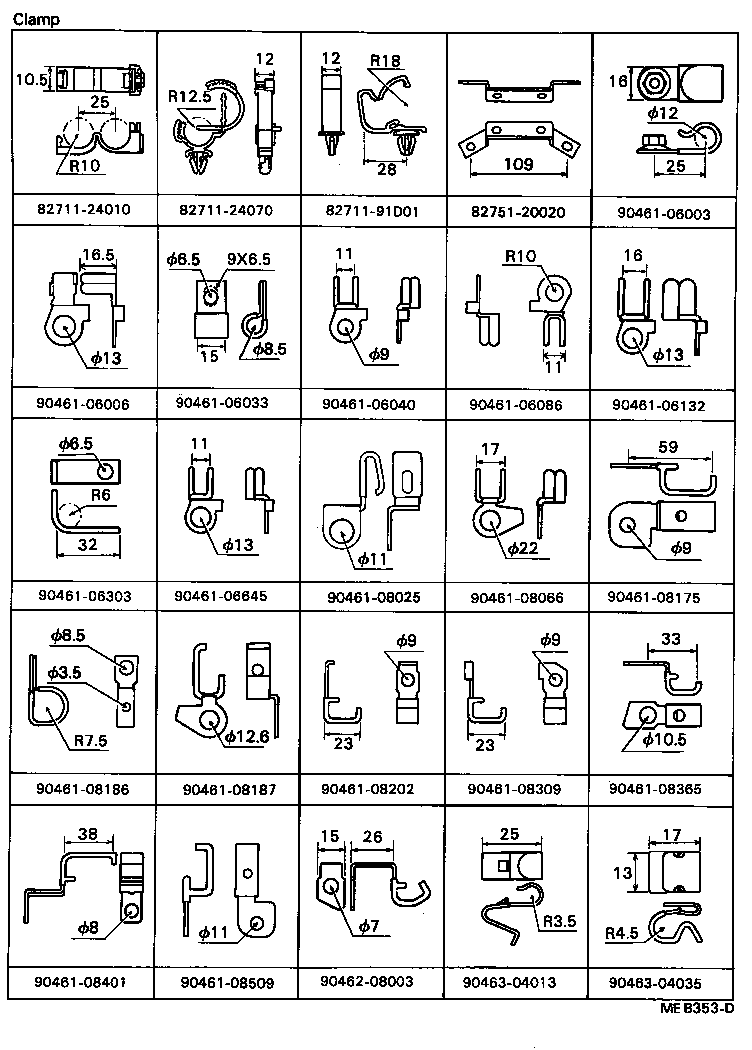

ILLUST NO. 6 OF 6(8201- )

Click highlighted areas on diagram

diagram 8271124010 8271124070 8271191D01 8275120020 9046106003 9046106006 9046106033 9046106040 9046106086 9046106132 9046106303 9046106645 9046108025 9046108066 9046108175 9046108186 9046108187 9046108202 9046108309 9046108365 9046108401 9046108509 9046208003 9046304013 9046304035
Part # Description Qty Price
Common parts
82711-24010
82711-24070
82711-91D01
82751-20020
90461-06003
90461-06006
90461-06033
90461-06040
90461-06086
90461-06132
90461-06303
90461-06645
90461-08025
90461-08066
90461-08175
90461-08186
90461-08187
90461-08202
90461-08309
90461-08365
90461-08401
90461-08509
90462-08003
90463-04013
90463-04035

ILLUST NO. 3 OF 6(8201- )

Click highlighted areas on diagram

diagram 82981 8298116010 82982 82983 8298312010 8298322040 82984 8298422010 82987 8298722010 82991 8299114020
Part # Description Qty Price

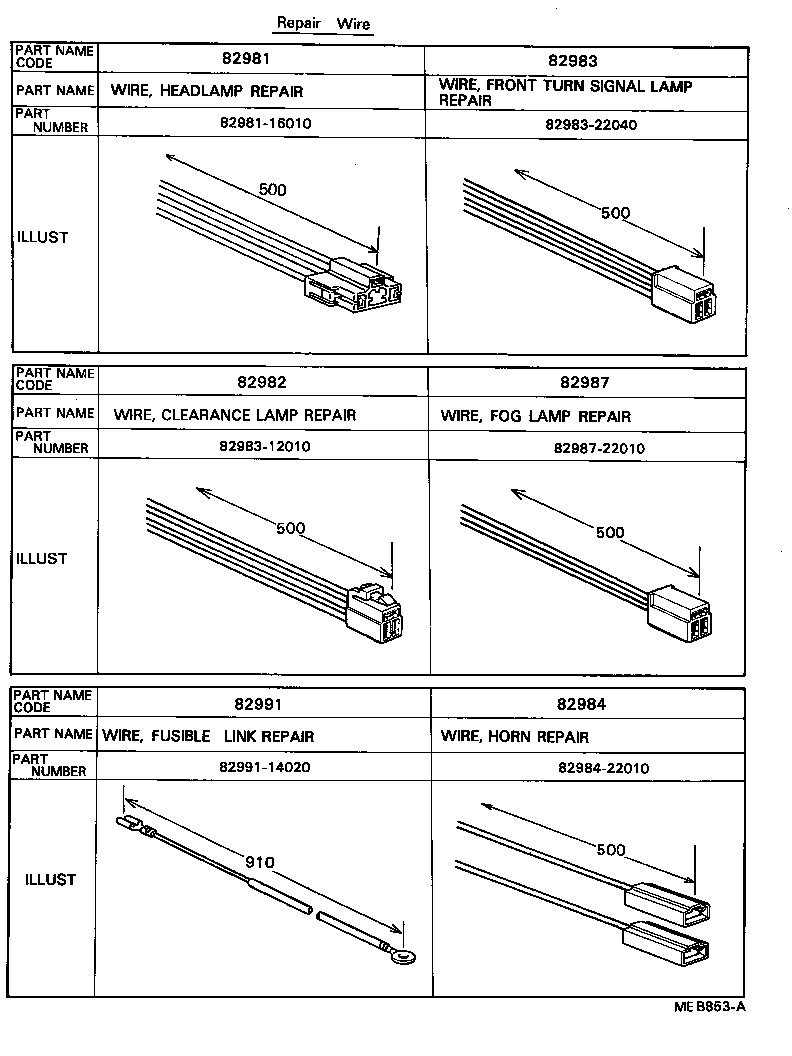

82981 - WIRE, HEADLAMP REPAIR
82981-16010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
82982 - WIRE, CLEARANCE LAMP REPAIR
82983-12010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-22040

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
82984 - WIRE, HORN REPAIR
82984-22010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
82987 - WIRE, FOG LAMP REPAIR
82987-22010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-14020

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140

 1
Common parts
82981-16010
82983-12010
82983-22040
82984-22010
82987-22010
82991-14020

ILLUST NO. 5 OF 6(8201- )

Click highlighted areas on diagram

diagram 8282312020 8282314010 8282314040 8282314070 8282320010 8282330020
Part # Description Qty Price
Common parts
82823-12020
82823-14010
82823-14040
82823-14070
82823-20010
82823-30020

ILLUST NO. 6 OF 6(8201- )

Click highlighted areas on diagram

diagram 8271114100 8271114660 8271114690 8271114720 8271120480 8271122270 8271124210 8271130070 9046310337 9046310338 9046312014 9046315439 9046315454 9046400134 9046400259 9098901008
Part # Description Qty Price
Common parts
82711-14100
82711-14660
82711-14690
82711-14720
82711-20480
82711-22270
82711-24210
82711-30070
90463-10337
90463-10338
90463-12014
90463-15439
90463-15454
90464-00134
90464-00259
90989-01008
