ST140-TEPMS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

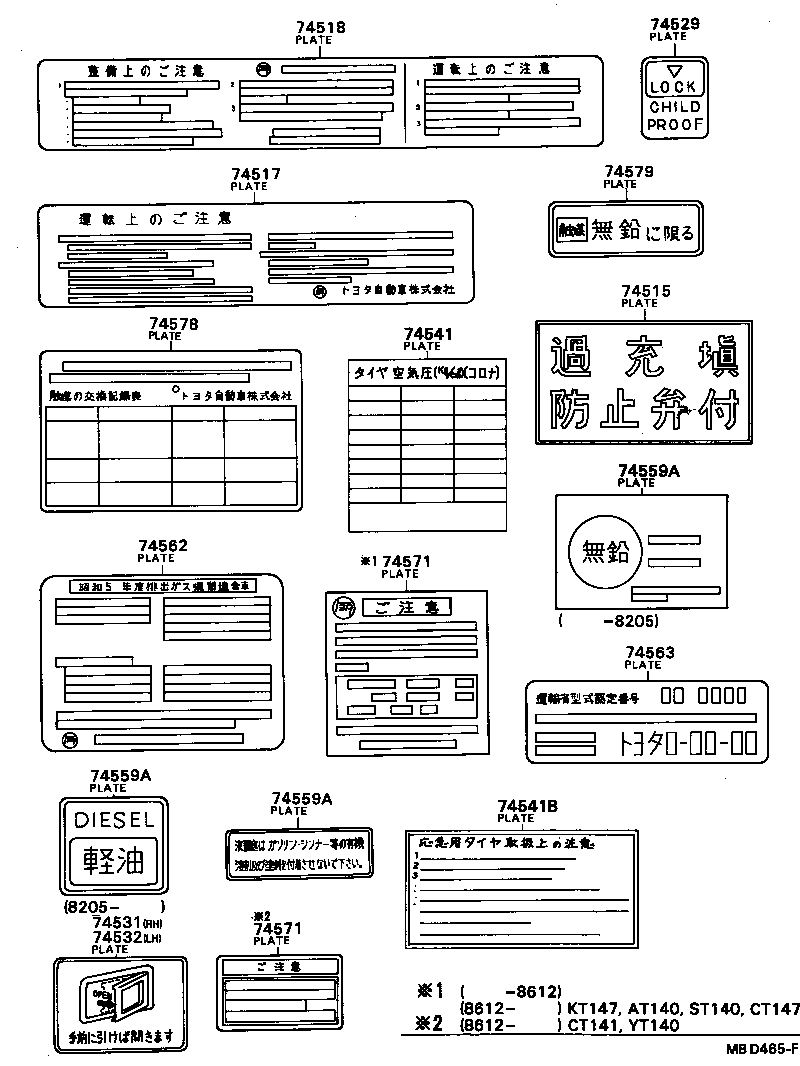

Click highlighted areas on diagram

diagram 74515 74517 74518 74529 74531 74532 74541 74541B 74559A 74559A 74559A 74562 74563 74571 74571 74578 74579
Part # Description Qty Price
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-20030

AT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GTT,GX,GXA,SX)

 2
69339-12010

AT140,CT140,ST140,TT142..SED..(DLX,EXA,EXS,GTT,GX,GXA,SX)

 2
74541 - PLATE, TIRE PRESSURE CAUTION
42661-14231

AT140,CT140,ST140,TT142,YT140

 1
42661-20100

AT140,CT140,RT141,ST140,TT142,YT140

 1
42661-20102

AT140,CT140,ST140,TT142,YT140

 1
74559A - PLATE, FUEL CAUTION
74559-14010

AT14#,KT147,RT141,ST140,TT14#

 1
74559A - PLATE, FUEL CAUTION
74559-14010

AT14#,KT147,RT141,ST140,TT14#

 1
74559A - PLATE, FUEL CAUTION
74559-14010

AT14#,KT147,RT141,ST140,TT14#

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-14290

ST140

 1
74563 - PLATE, EMISSION CONTROL DEVICE IDENTIFICATION
74563-14140

ST140

 1
74571 - PLATE, BRAKE FLUID CAUTION
74571-27011

AT140,CT14#,RT141,ST140,TT14#,YT140

 1
74571 - PLATE, BRAKE FLUID CAUTION
74571-27011

AT140,CT14#,RT141,ST140,TT14#,YT140

 1
74579 - PLATE, UNLEADED FUEL CAUTION
74579-30011

AT14#,KT147,RT141,ST140,TT14#

 1
