ST140-TEPMS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)ST140..4FC

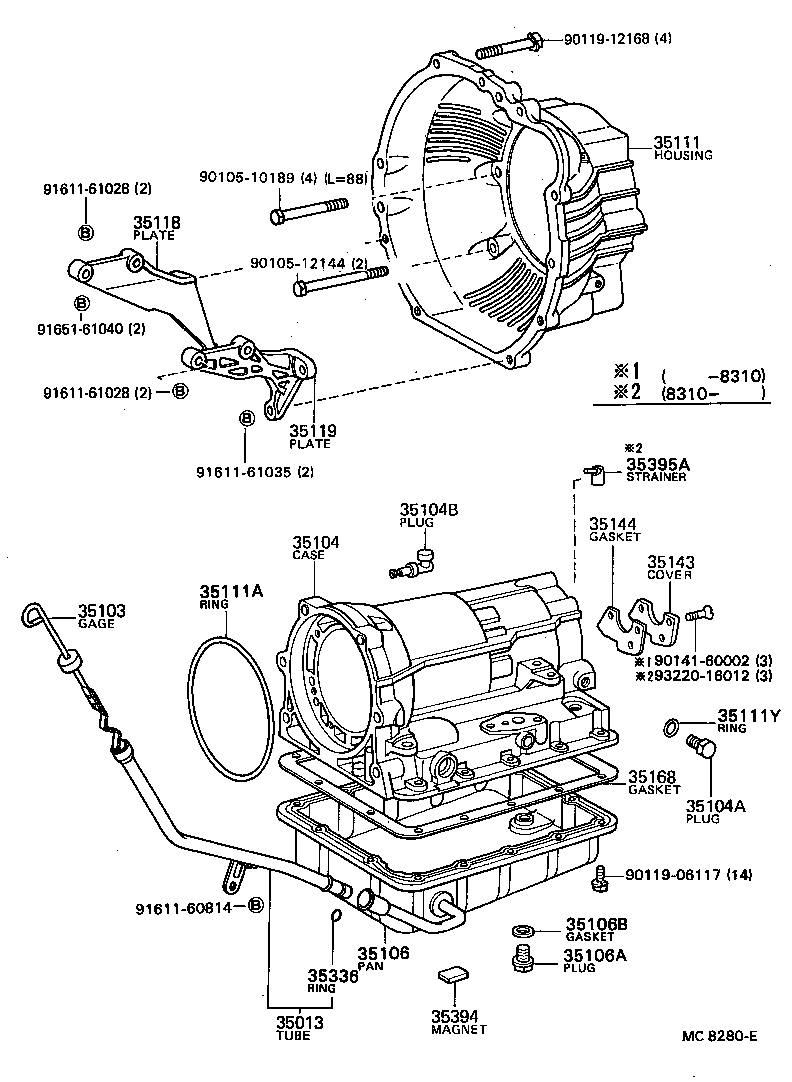

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35106 35106A 35106B 35111 35111A 35111Y 35118 35119 35143 35144 35168 35336 35394 35395A 9010510189 9010512144 9011906117 9011912168 9014160002 9161160814 9161161028 9161161028 9161161035 9165161040 9322016012
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-14100

ST140..4FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-20080

ST140..4FC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-30082

ST140,TT142..4FC..(EXA,EXS,GX,GXA,SX)

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03069

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30030

ST140..4FC

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10003

AT140,CT140,ST140,TT14#,YT140..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-14090

ST140..4FC

 1
35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING)
90301-99006

CT140,ST140,TT142..4FC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 2
35118 - PLATE, STIFENER, RH (ATM)
33118-14030

CT140,ST140..4FC

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-14050

CT140,ST140..4FC

 1
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22011

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
Common parts
90105-10189
90105-12144
90119-06117
90119-12168
90141-60002
91611-60814
91611-61028
91611-61035
91651-61040
93220-16012
