ST140-TEPMS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )ATM

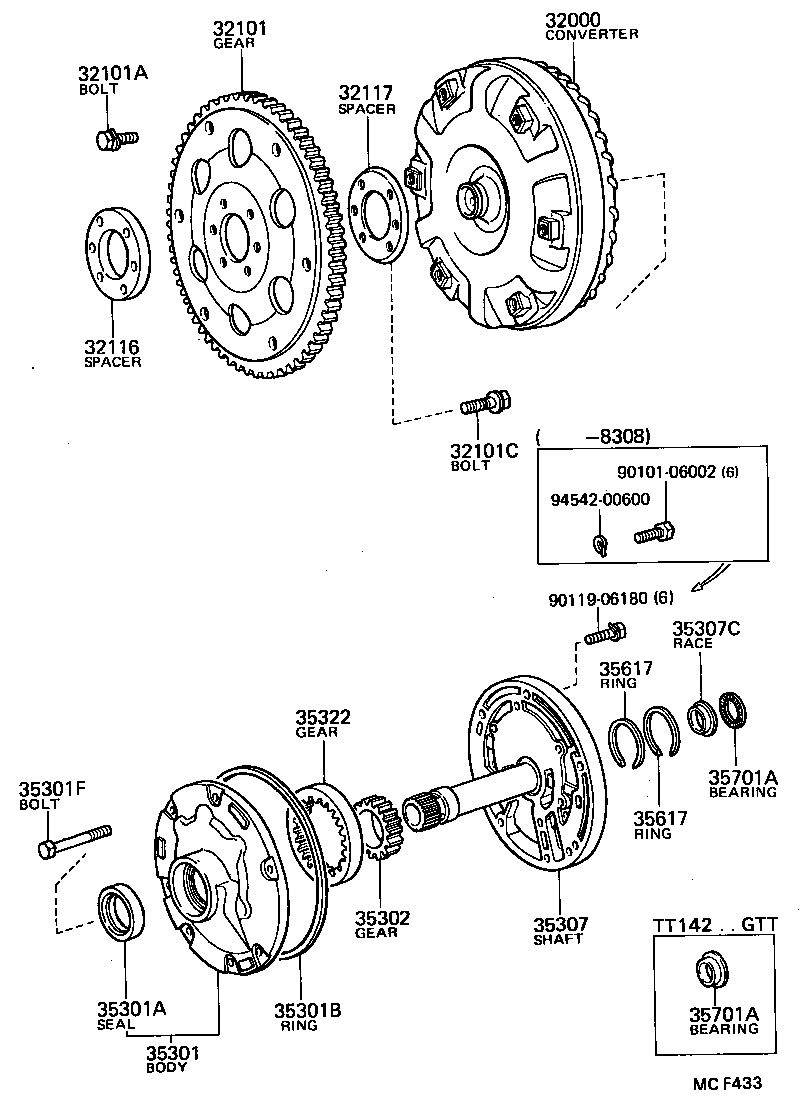

Click highlighted areas on diagram

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35302 35307 35307C 35322 35617 35617 35701A 35701A 9010106002 9011906180 9454200600
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-14090

ST140..4FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-14040

ST140..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08223

AT140,CT140,ST140,TT14#,YT140..ATM

*8−1.25PX10.5−6.5

 6
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90109-10054

ST140..4FC

*10−1.25PX22−16

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-14020

ST140..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-14030

ST140..4FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-30030

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38129

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90101-08431

ST140,TT142..4FC

 7
35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
35321-22010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

 1
35307 - SHAFT SUB-ASSY, STATOR
35370-22030

CT140,ST140,TT142..4FC..(EXA,EXS,GX,GXA,SX)

 1
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-22010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM..(DLX,EXA,EXS,GX,GXA,SX)

厚さ=4.3

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22010

AT140,CT140,KT147,ST140,TT14#,YT140..ATM

厚さ=15.286−15.235

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

CT140,ST140,TT142..4FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

CT140,ST140,TT142..4FC

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-23012

AT140,CT140,KT147,ST140,TT14#,YT140..ATM..(DLX,EXA,EXS,GX,GXA,SX)

 1
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-23012

AT140,CT140,KT147,ST140,TT14#,YT140..ATM..(DLX,EXA,EXS,GX,GXA,SX)

 1
Common parts
90101-06002
90119-06180
94542-00600
