ST140-TEPMS (1982)
Toyota Corona
Production
Jan 1982
-
Oct 1983
Engine
1SU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8201-8712)1SU

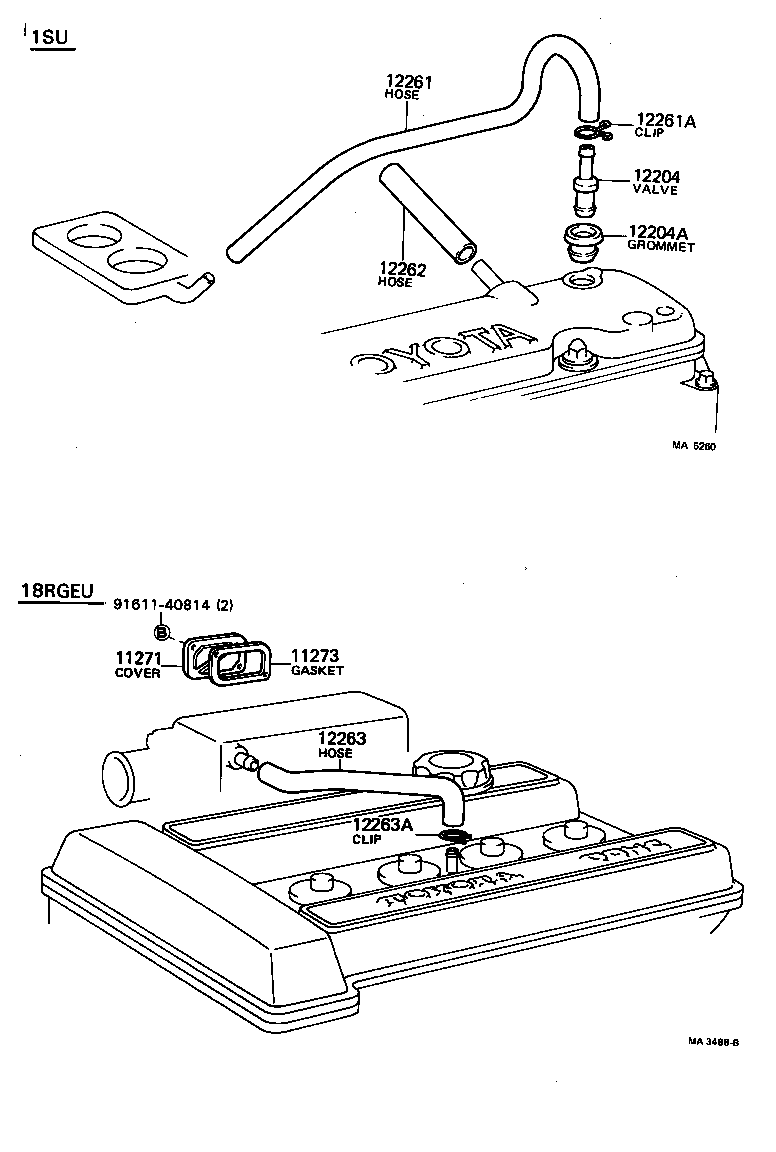

Click highlighted areas on diagram
MA5260,MA3488B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-28010 |
1SU..ST140 |
1 | ||
| 12204-28010 |
1SU..ST140 |
1 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18001 |
1SU..ST140 |
1 | ||
| 90480-18001 |
1SU..ST140 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-63010 |
1SU..ST140 |
1 | ||
| 12261-63010 |
1SU..ST140 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-14082 |
1SU..ST140 |
1 | ||
| 90467-14082 |
1SU..ST140 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 90445-17046 |
1SU..ST140 |
1 | ||
| 90445-17046 |
1SU..ST140 |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
