ST140-TEPGS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8305)ST140

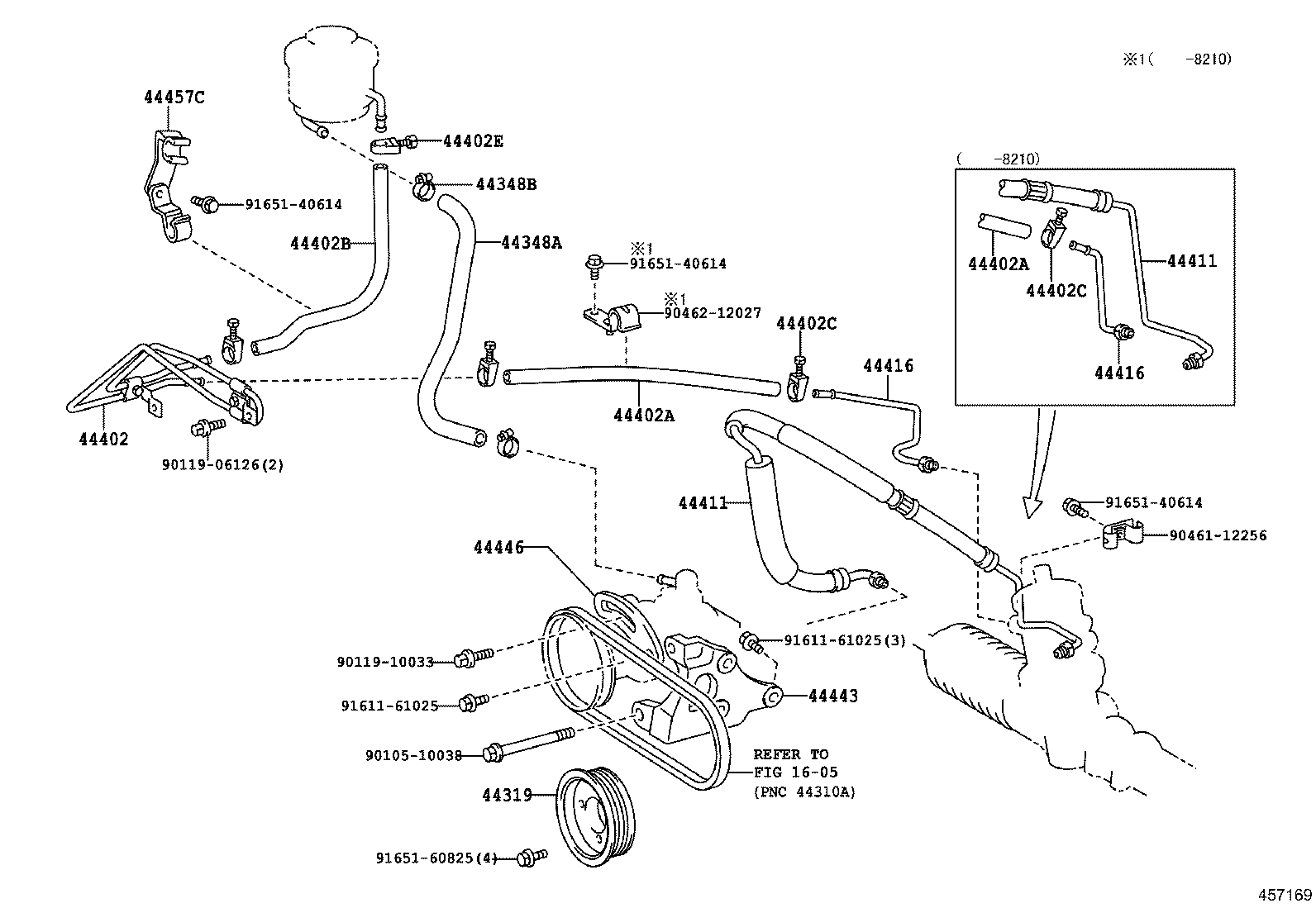

Click highlighted areas on diagram

diagram 1605 44319 44348A 44348B 44402 44402A 44402A 44402B 44402C 44402C 44402E 44411 44411 44416 44416 44443 44446 44457C 9010510038 9011906126 9011910033 9046112256 9046212027 9161161025 9161161025 9165140614 9165140614 9165140614 9165160825
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-14010

ST140

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-14030

CT140,ST140..EXA,EXS,GX,GXA

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA

 2
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-14050

AT140,CT140,RT141,ST140..EXA,EXS,GT,GX,GXA

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
44412-20090

ST140

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
44412-20090

ST140

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90445-18108

CT140,ST140..EXA,EXS,GX,GXA

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA

 2
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA

 2
44411 - HOSE, PRESSURE FEED
44411-20091

ST140

 1
44411-20090

ST140

 1
44411 - HOSE, PRESSURE FEED
44411-20091

ST140

 1
44411-20090

ST140

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20130

ST140

 1
44416-20080

ST140

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20130

ST140

 1
44416-20080

ST140

 1
44443 - BRACKET, PUMP
44443-14020

ST140

 1
44446 - STRUT, ADJUSTING
44446-14010

CT140,ST140..EXA,EXS,GX,GXA

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-14070

ST140

 1
44457-14150

ST140

 1
Common parts
90105-10038
90119-06126
90119-10033
90461-12256
90462-12027
91611-61025
91651-40614
91651-60825
Linked diagrams
1605
