ST140-TEPGS (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)1SU

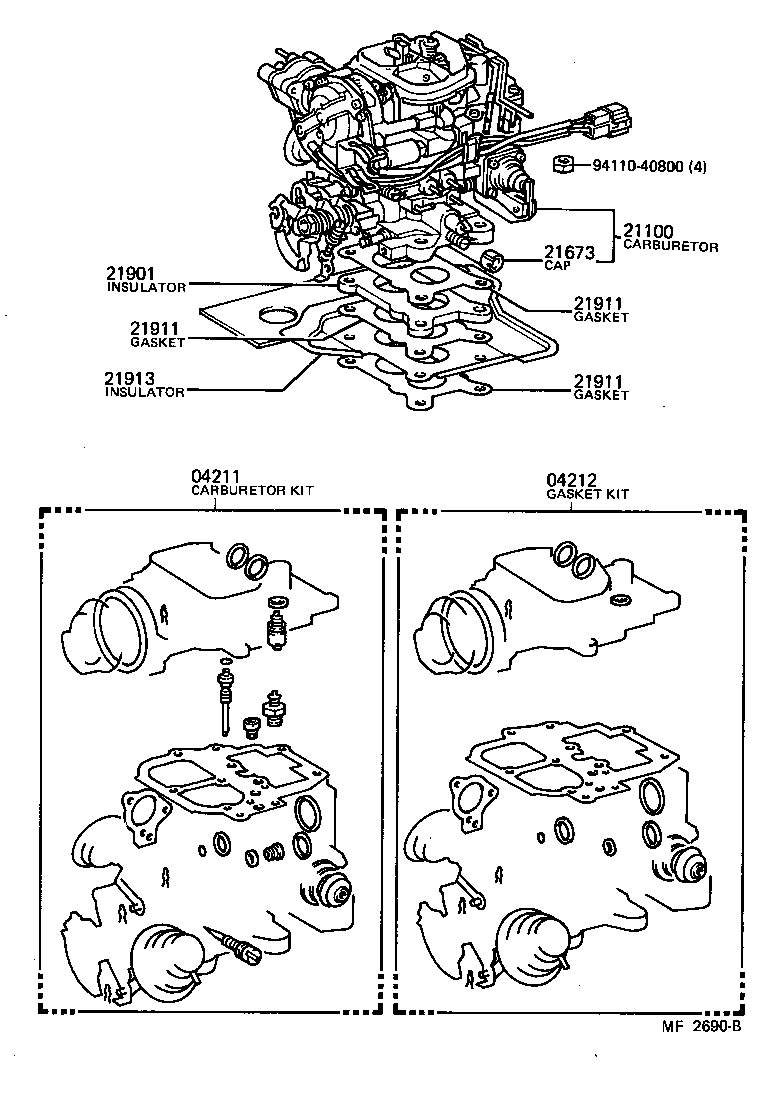

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21901 21911 21911 21911 21913 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-63011

1SU..ST140

 1
04211-63010

1SU..ST140

 1
04212 - GASKET KIT, CARBURETOR
04212-63010

1SU..ST140

 1
21100 - CARBURETOR ASSY
21100-63040

1SU..ST140..4FC

COLD SPEC

 1
21100-63041

1SU..ST140..4FC

COLD SPEC

 1
21100-63021

1SU..ST140..4FC

 1
21100-63020

1SU..ST140..4FC

 1
21673 - CAP, IDLE LIMIT
21673-38020

1SU..ST140

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-63010

1SU..ST140

 1
21911 - GASKET, CARBURETOR
21911-63010

1SU..ST140

 3
21911 - GASKET, CARBURETOR
21911-63010

1SU..ST140

 3
21911 - GASKET, CARBURETOR
21911-63010

1SU..ST140

 3
21913 - INSULATOR, CARBURETOR HEAT, NO.2
21902-63010

1SU..ST140

 1
Common parts
94110-40800
