ST140-TEPES (1982)
Toyota Corona

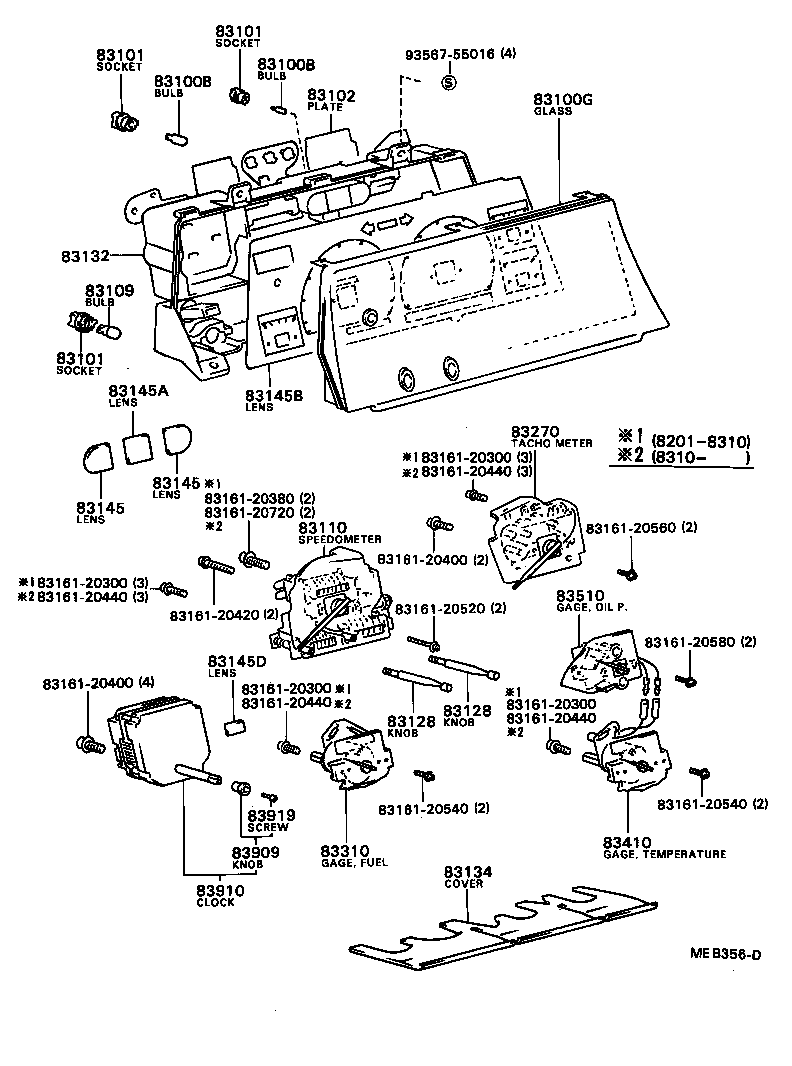

ILLUST NO. 1 OF 2(8201-8508)AT141,CT140,ST140,TT142..SED..EXS,GT,GTT,SX ; (8208-8310)AT140,ST140..GX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
14 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
14 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-2B140 |
AT141,CT140,ST140,TT142..SED..(EXS,GT,GTT,SX) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V BULB:12V 3.4W(OD=18) |
11 | ||
| 83101-14040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 BULB:12V 1.4W(D=11.3) |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V BULB:12V 3.4W(OD=18) |
11 | ||
| 83101-14040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 BULB:12V 1.4W(D=11.3) |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V BULB:12V 3.4W(OD=18) |
11 | ||
| 83101-14040 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 BULB:12V 1.4W(D=11.3) |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-2B160 |
AT141,ST140,TT142..SED..(EXS,GT,SX) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-20720 |
CT140,ST140,TT142..SED..(EXS,SX) |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-20720 |
AT141,CT140,ST140,TT142..SED..(EXS,GT,GTT,SX) |
2 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-20720 |
AT141,CT140,ST140,TT142..SED..(EXS,GT,GTT,SX) |
2 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2B080 |
ST140,TT142..SED..(EXS,SX) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-2B220 |
AT14#,KT147,ST140,TT14#..(SED,V)..(DLX,EXS,GT,GTT,GX,STD,SX) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-2B060 |
AT14#,CT14#,KT147,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,STD,SX) TURN |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-2B060 |
AT14#,CT14#,KT147,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,STD,SX) TURN |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-2B080 |
AT14#,CT14#,KT147,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,STD,SX) BEAM |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B580 |
ST140,TT142..SED..(EXS,SX) |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-2B340 |
AT14#,CT140,147,KT147,ST140,TT14#..(SED,V)..(DLX,EXS,GT,GTT,GX,SX) |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-2B020 |
ST140,TT142..SED..(EXS,SX) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-2B100 |
CT140,ST140,TT142..SED..(EXS,SX) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-2B060 |
ST140,TT142..SED..(EXS,SX) |
1 | ||
| 83244-2B160 |
ST140,TT142..SED..(EXS,SX) |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83246-2B020 |
CT140,ST140,TT142..SED..(EXS,SX) |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-12230 |
AT141,CT140,ST140,TT142..SED..(EXS,GT,GTT,SX) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20310 |
AT141,CT140,ST140,TT142..SED..(EXS,GT,GTT,SX) DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
AT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GXA,SX DIGITAL |
1 | ||
| Common parts | ||||
| 83161-20300 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83161-20420 | ||||
| 83161-20440 | ||||
| 83161-20520 | ||||
| 83161-20540 | ||||
| 83161-20560 | ||||
| 83161-20580 | ||||
| 83161-20720 | ||||
| 93567-55016 | ||||
ILLUST NO. 2 OF 2(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-14390 |
ST140..SED..4FC |
1 | ||
| 83960 - MEMORIZER ASSY | ||||
| 83960-2001001 |
CT140,RT141,ST140,TT142..EXS,GT,GTT,SX BLACK,BLACK,TRIM2# |
1 | ||
| 83960-2001006 |
CT140,RT141,ST140,TT142..EXS,GT,GTT,SX DARK BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 82711-22220 | ||||
| 83791-12020 | ||||
| 83791-14050 | ||||
| 83791-14110 | ||||
| 83791-14120 | ||||
| 83791-20130 | ||||
| 83791-20160 | ||||
| 83791-20180 | ||||
| 91611-60614 | ||||
| 91651-40614 | ||||
| 94611-11001 | ||||
