ST140-TEPES (1982)

Toyota Corona

Production Jan 1982 - Oct 1983
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8712)1SU

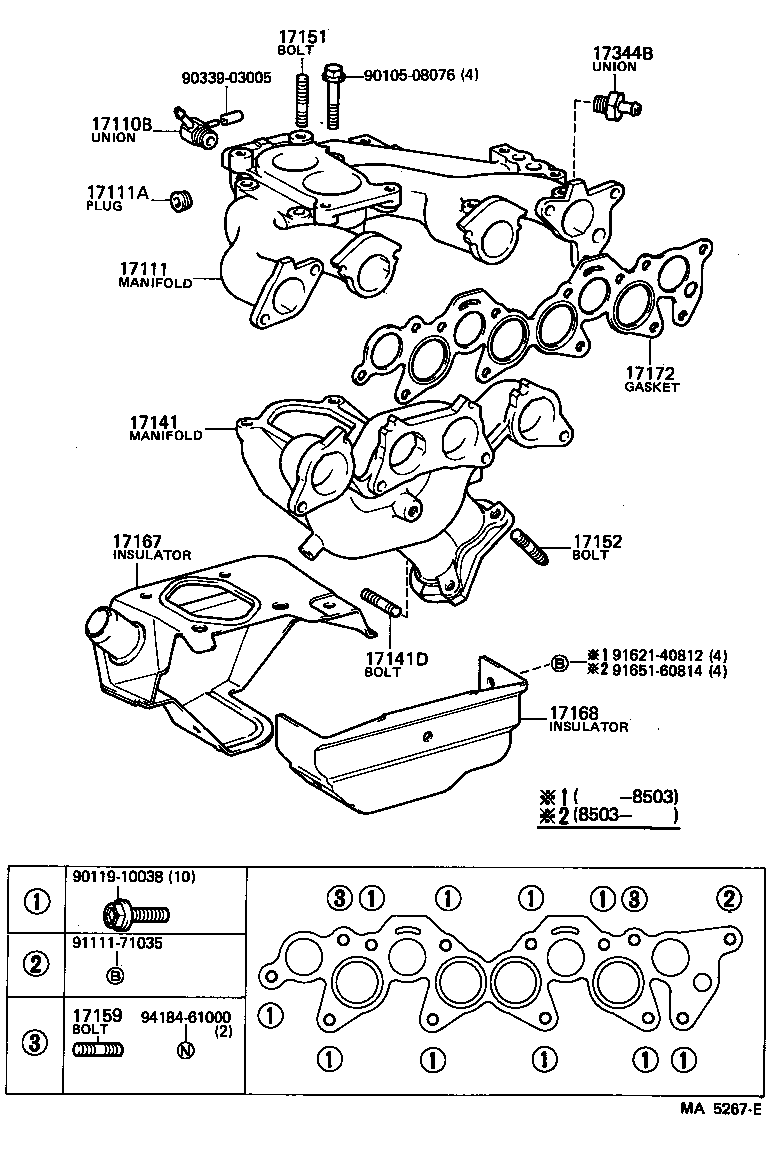

Click highlighted areas on diagram

diagram 17110B 17111 17111A 17141 17141D 17151 17152 17159 17167 17168 17172 17344B 9010508076 9011910038 9033903005 9111171035 9162140812 9165160814 9418461000
Part # Description Qty Price
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-53044

1SU..ST140

 1
17111 - MANIFOLD, INTAKE
17111-63010

1SU..ST140

 1
17111A - PLUG, NO.1
90344-53011

1SU..ST140

 1
17141 - MANIFOLD, EXHAUST
17141-63010

1SU..ST140

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08045

1SU..ST140

L=28,S=8&14

 2
90116-08045

1SU..ST140

L=28,S=8&14

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92122-40832

1SU..ST140

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

1SU..ST140

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025

1SU..ST140

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17902-63010

1SU..ST140

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17938-63010

1SU..ST140

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-63010

1SU..ST140

 1
17344B - UNION(FOR AIR HOSE)
90404-53042

1SU..ST140

 1
Common parts
90105-08076
90119-10038
90339-03005
91111-71035
91621-40812
91651-60814
94184-61000
