ST140-TEMNS (1982)

Toyota Corona

Production Jan 1982 - Dec 1987
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-9111)CT14#,ST140..MTM

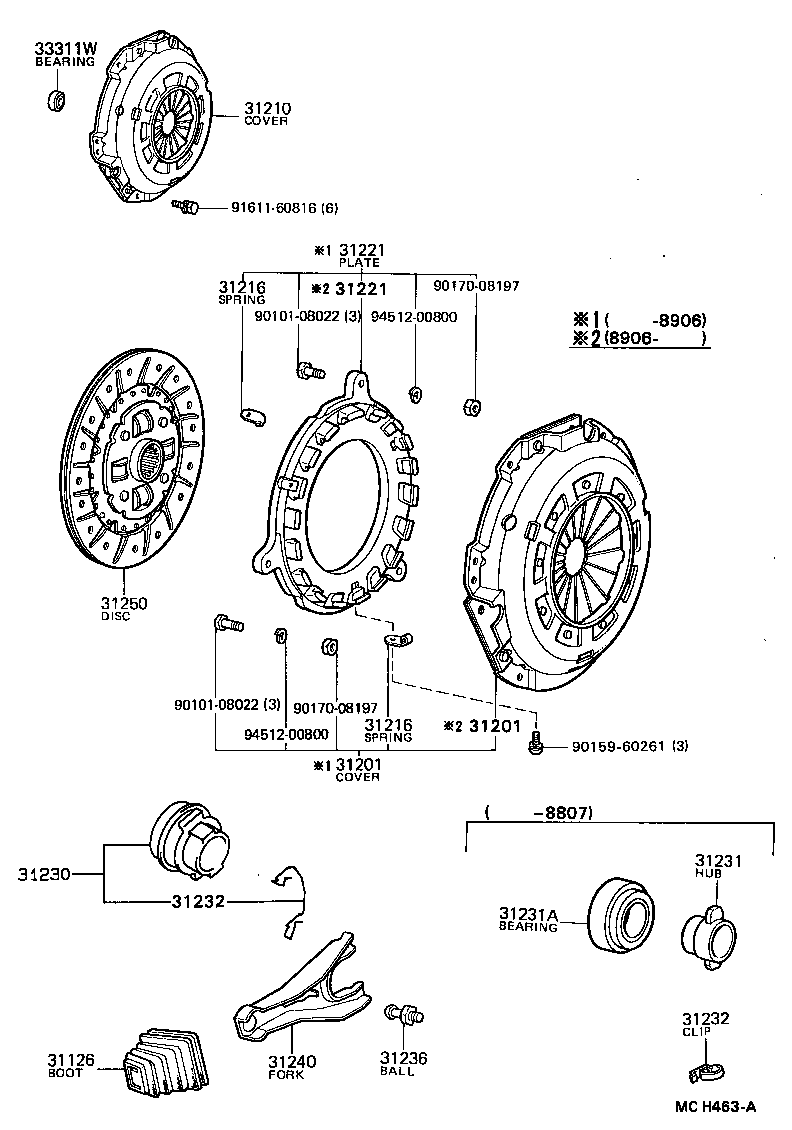

Click highlighted areas on diagram

diagram 31126 31201 31201 31210 31216 31216 31221 31221 31230 31231 31231A 31232 31232 31236 31240 31250 33311W 9010108022 9010108022 9015960261 9017008197 9017008197 9161160816 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

AT14#,CT14#,KT147,ST140,TT14#..MTM

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-39047

CT14#,ST140,TT142..MTM..(DLX,EXS,GX,GXA,STD,SX)

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-39047

CT14#,ST140,TT142..MTM..(DLX,EXS,GX,GXA,STD,SX)

 1
31210 - COVER ASSY, CLUTCH
31210-35042

CT14#,ST140,TT142..MTM..(DLX,EXS,GX,GXA,STD,SX)

 1
31210-35042

ST140..5F

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

CT14#,RT141,ST140,TT142..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

CT14#,RT141,ST140,TT142..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-39045

CT14#,ST140,TT142..MTM..(DLX,EXS,GX,GXA,STD,SX)

 1
31221-39045

ST140..5F

 1
31221 - PLATE, CLUTCH PRESSURE
31221-39045

CT14#,ST140,TT142..MTM..(DLX,EXS,GX,GXA,STD,SX)

 1
31221-39045

ST140..5F

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-20081

AT140,ST140,TT14#..MTM..(DLX,EXS,GX,GXA,STD,SX)

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 2
31236 - BALL, RELEASE FORK
31236-30060

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20090

CT14#,ST140,TT142..MTM..(DLX,EXS,GTT,GX,GXA,STD)

 1
31250 - DISC ASSY, CLUTCH
31250-14140

ST140,TT142..MTM..(EXS,GX,GXA,SX)

 1
31250-14141

ST140..5F

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12004

CT14#,ST140..MTM

 1
Common parts
90101-08022
90159-60261
90170-08197
91611-60816
94512-00800
